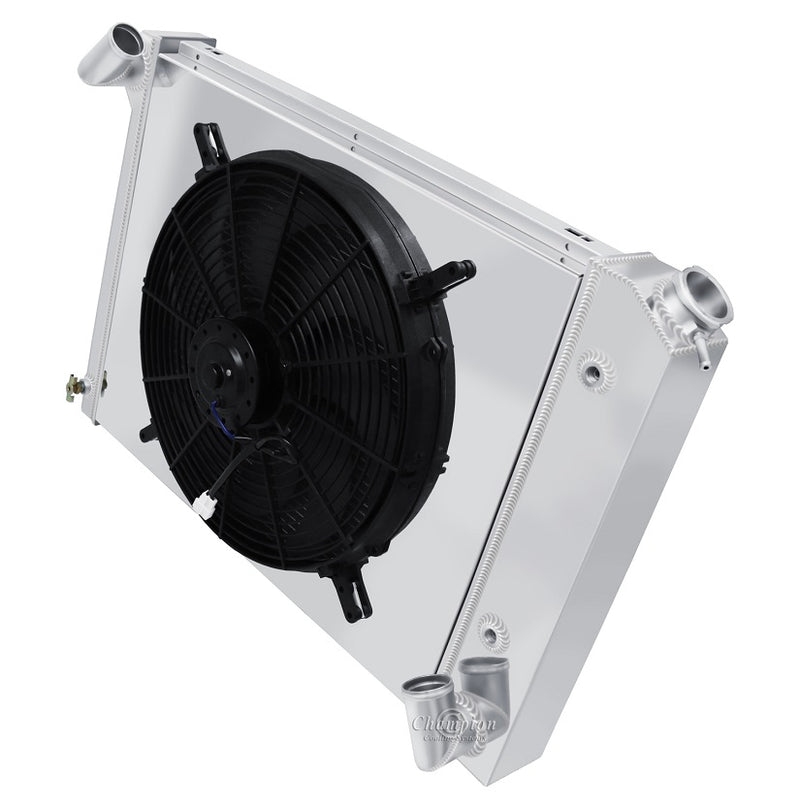

CC615B-615FS16C 3 Row Combo

Champion All Aluminum Radiator
Plus Aluminum Shroud & 16" Fan
3-Row Core | Cools up to 650hp
Only fits the 4-Row saddle mounts
Automatic Transmissions ONLY

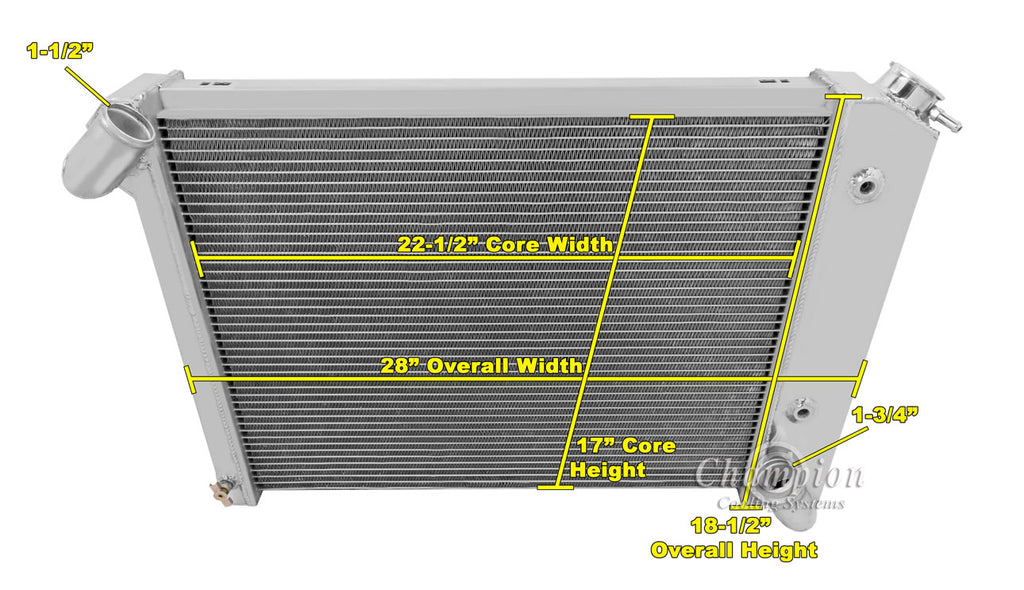

Radiator Dimensions:
Total: 19.25" tall (with cap) x 28" wide
Core: 17.25" tall x 22.75" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.25" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)
