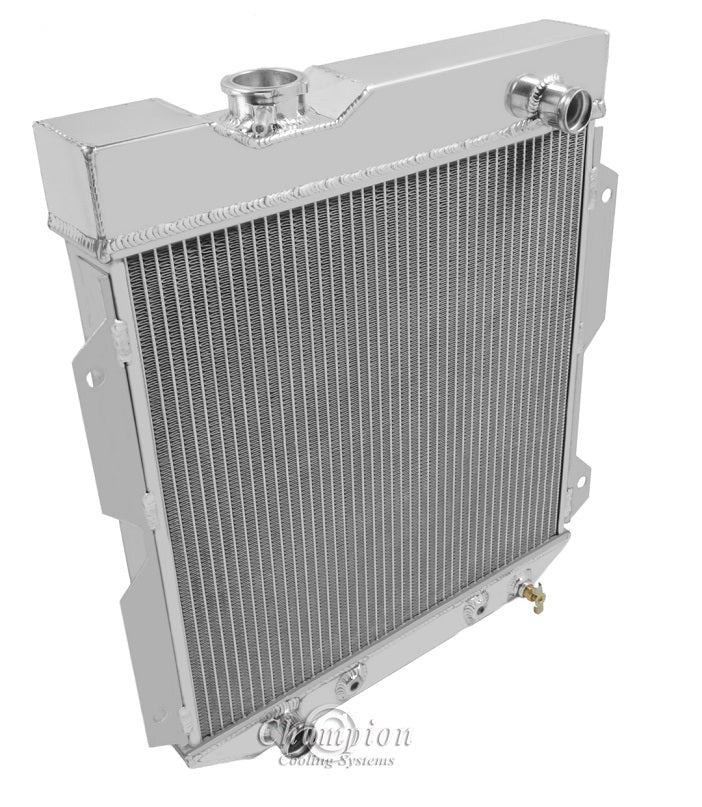

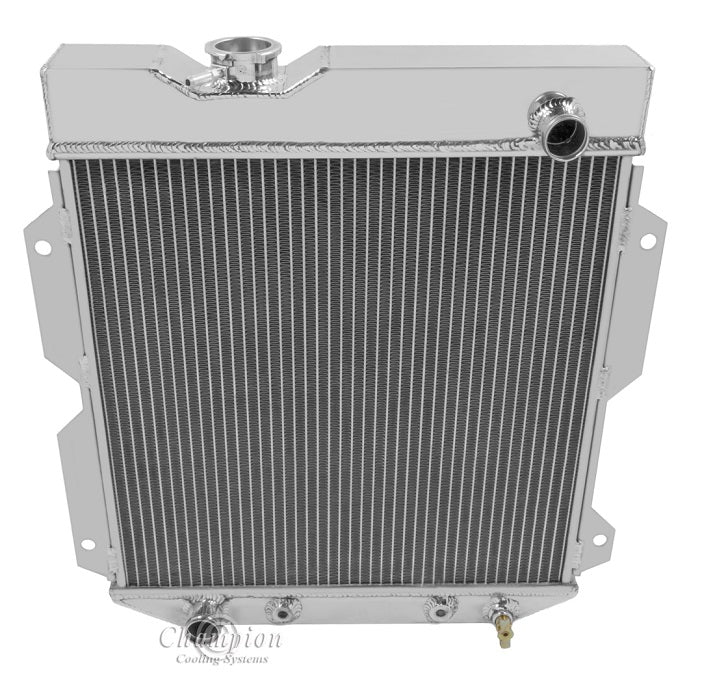

CC6065LD 3 Row Lower Driver Outlet

Champion All Aluminum Radiator
3-Row Core | Cools up to 450hp

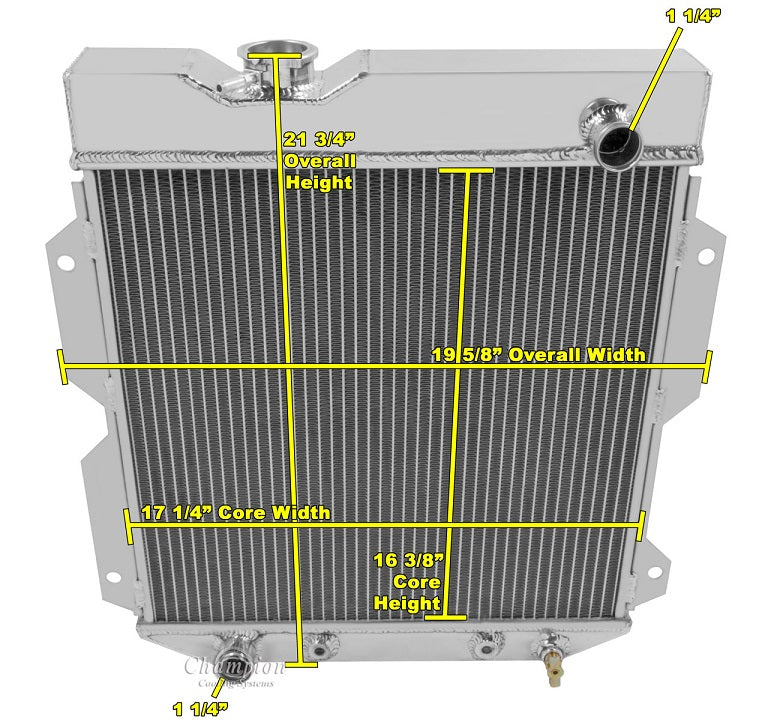

Radiator Dimensions:
Total: 21" tall (21.5" with cap) x 20" wide (with brackets)
Core: 16.5" tall x 17.13" wide x 2" thick
Inlet: 1.25" passenger side
Outlet: 1.25" drivers side
Tanks: 2.75" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/8-27npt)

When using electric fans:
Shroud and 16" Electric fan(s) available (sold separately)
