CC6063-6063FS16C 3 Row Combo

Champion All Aluminum Radiator PLUS

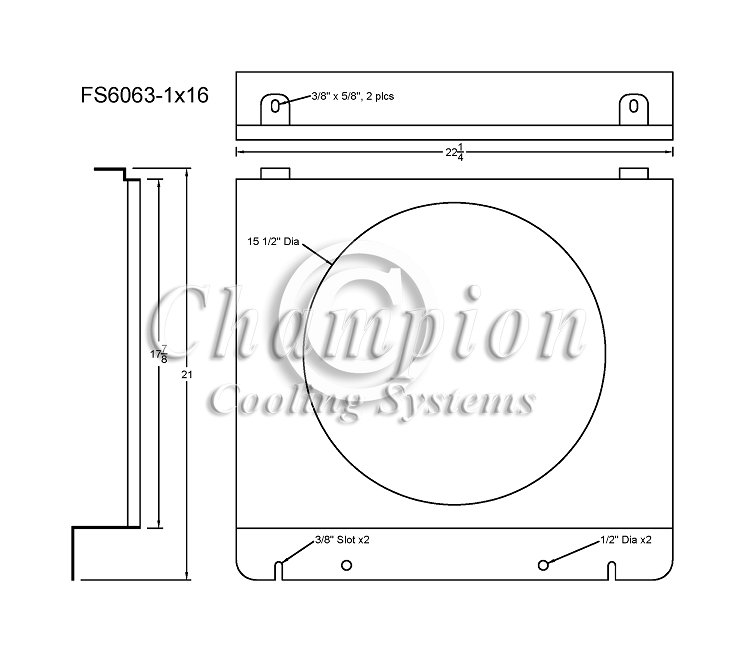

Aluminum Shroud and 16" Pro-Series Fan
3-Row Core | Cools up to 650hp

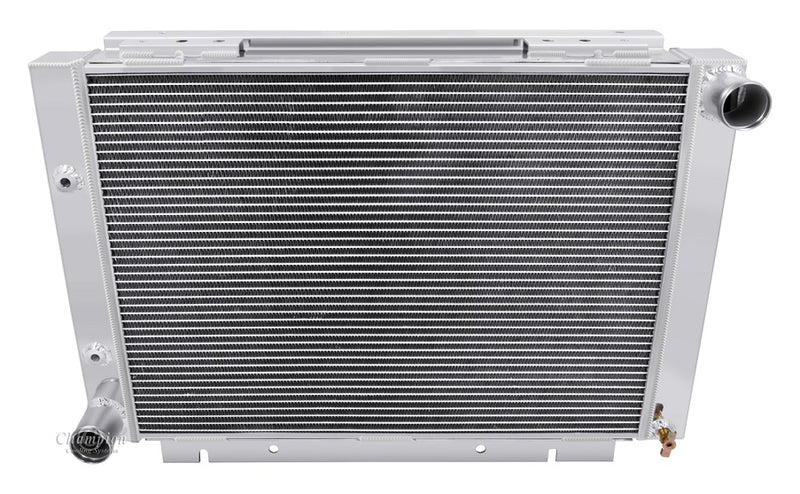

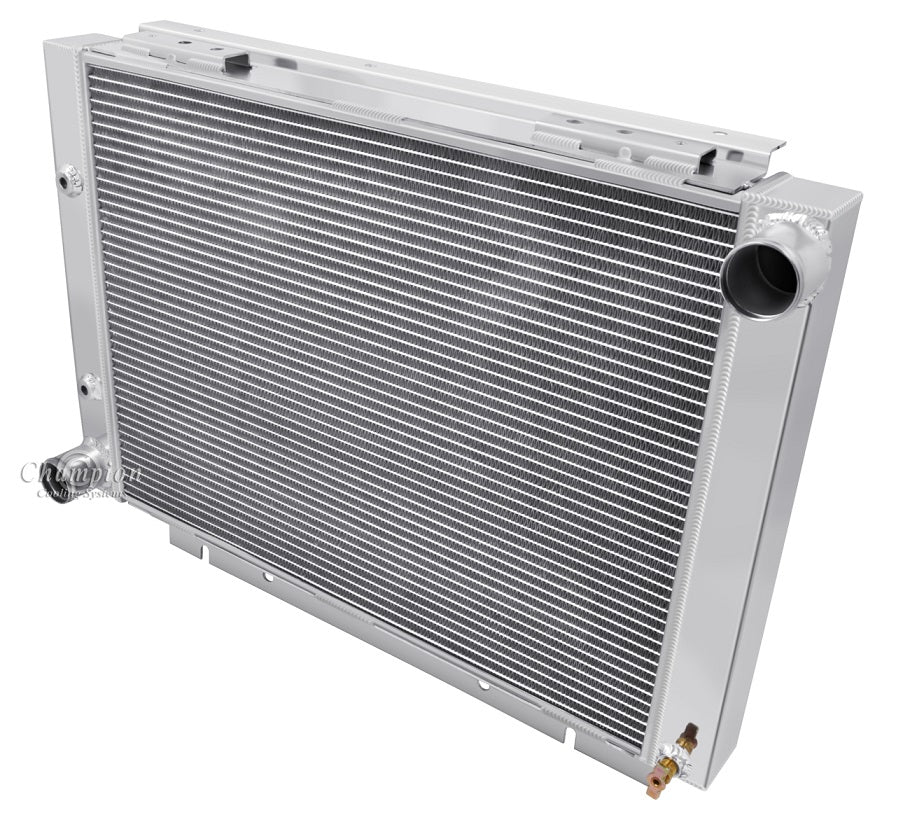

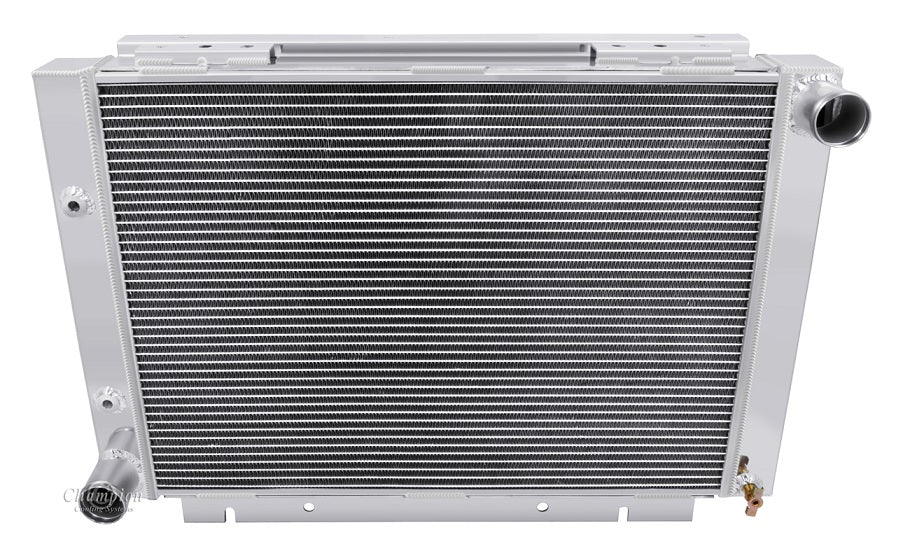

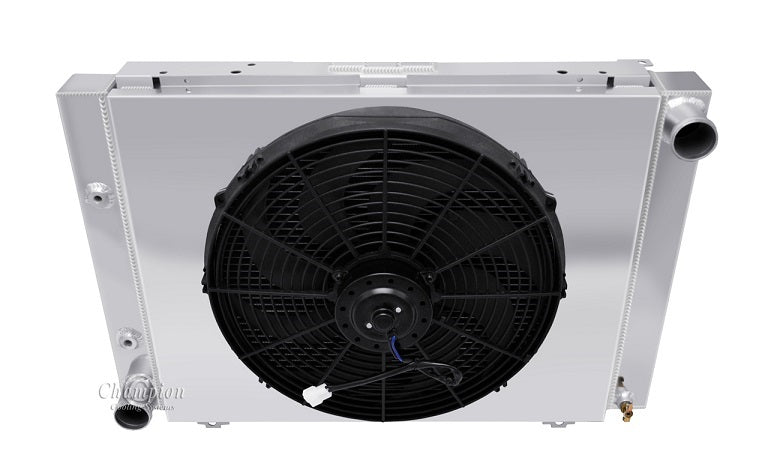

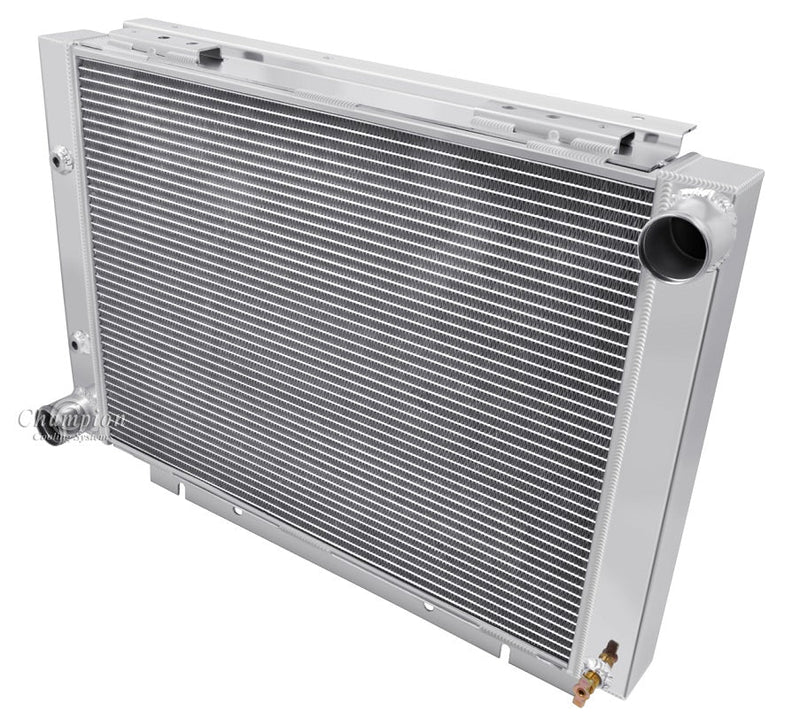

Note: The photo of the combo is just a representation,
the other photos are the actual Radiator.

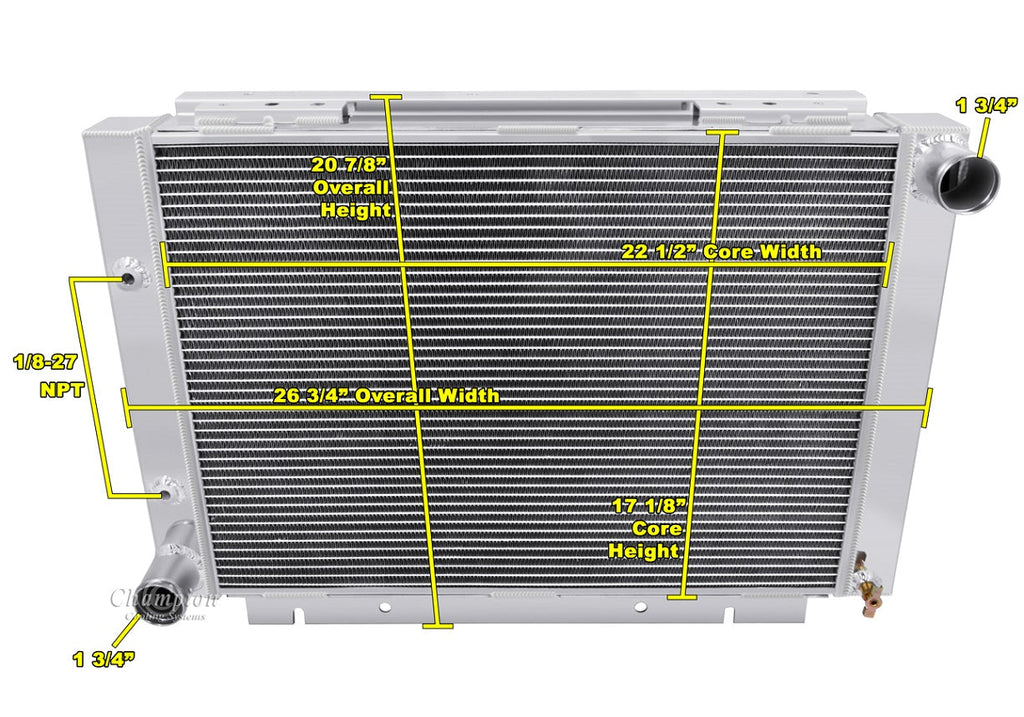

Radiator Dimensions:
Total: 20.88" tall x 26.75" wide
Core: 17.13" tall x 22.5" wide x 2" thick
Inlet: 1.75" passenger side
Outlet: 1.75" driver side
Tanks: 2.63" thick
Tubes: 0.63" thick
Total Thickness: 6.75" to Back of Fan

Top Flange Mounted
Lower Bracket Mounted

Transmission Cooler included (1/8-27npt)
