CC6063 3 Row

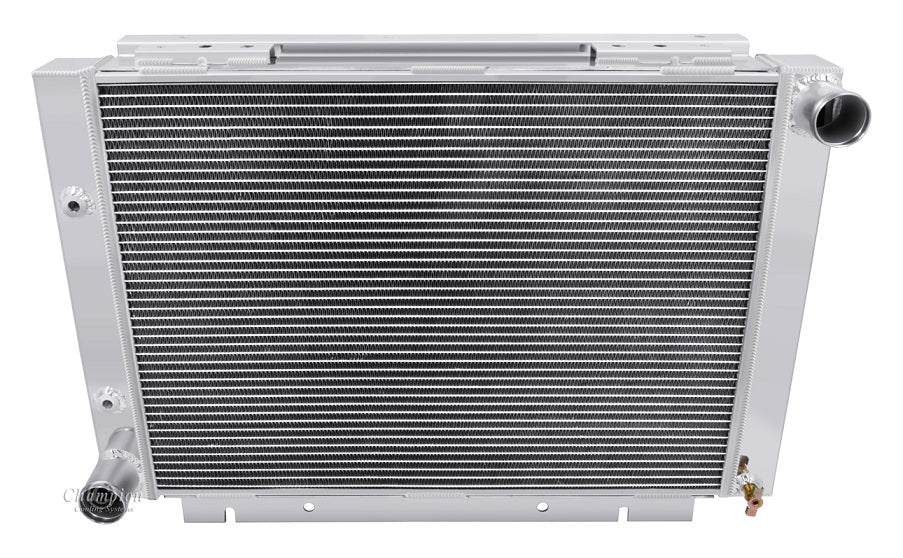

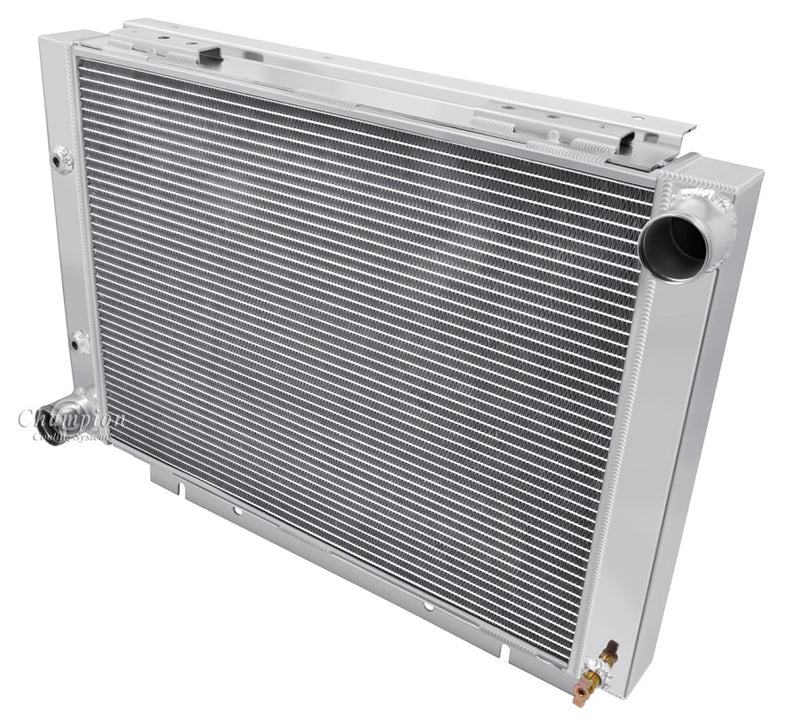

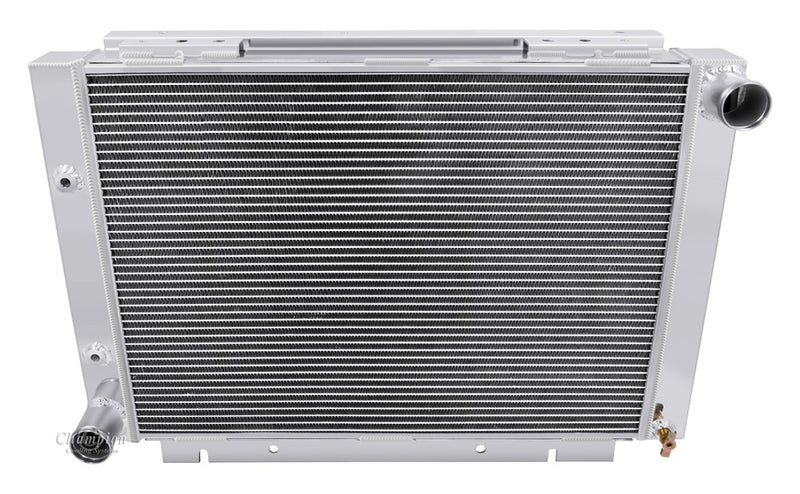

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp

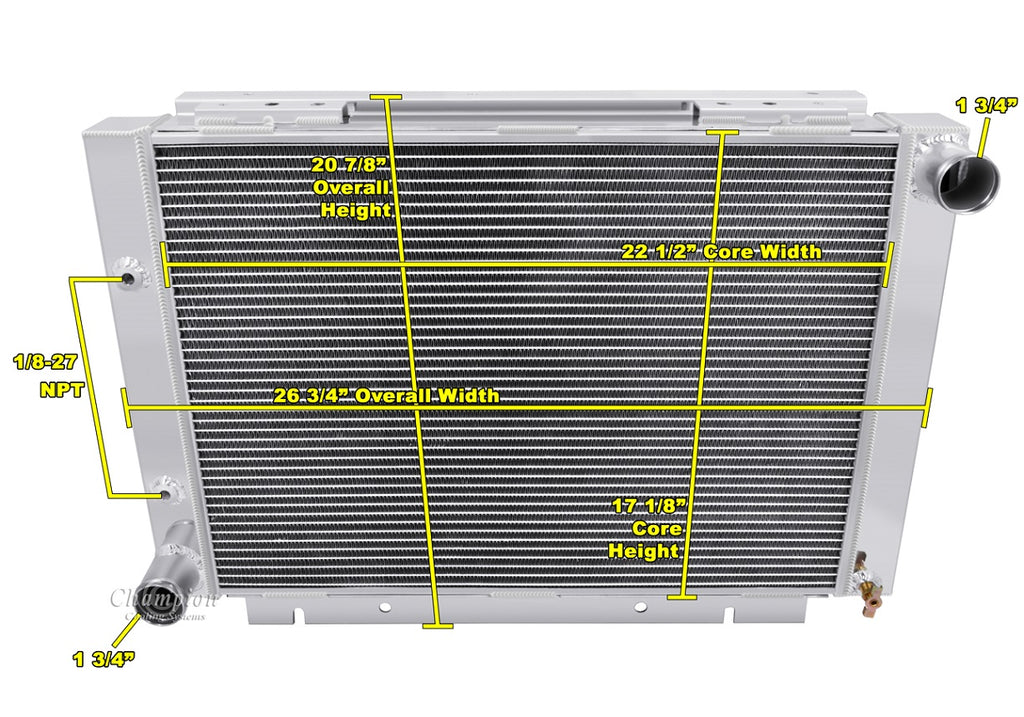

Radiator Dimensions:
Total: 20.88" tall x 26.75" wide
Core: 17.125" tall x 22.5" wide x 2" thick
Inlet: 1.75" passenger side
Outlet: 1.75" driver side
Tanks: 2.63" thick
Tubes: 0.63" thick

Top Flange Mounted
Lower Bracket Mounted

Transmission Cooler included (1/8-27npt)
