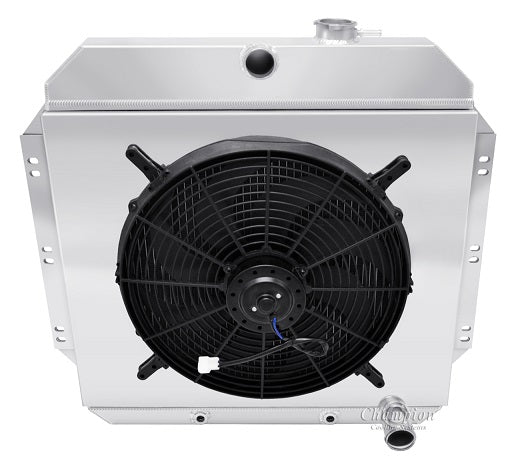

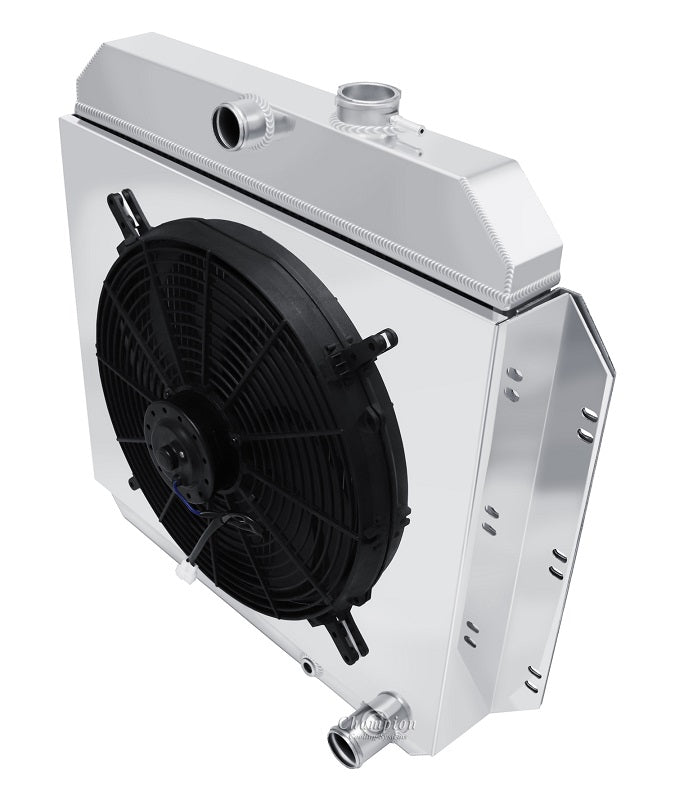

CC6062-6062FS16 3 Row Combo

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" fan
Verify clearance for electric fan
Total thickness: 6" to fan motor
3-Row Core | Cools 650hp

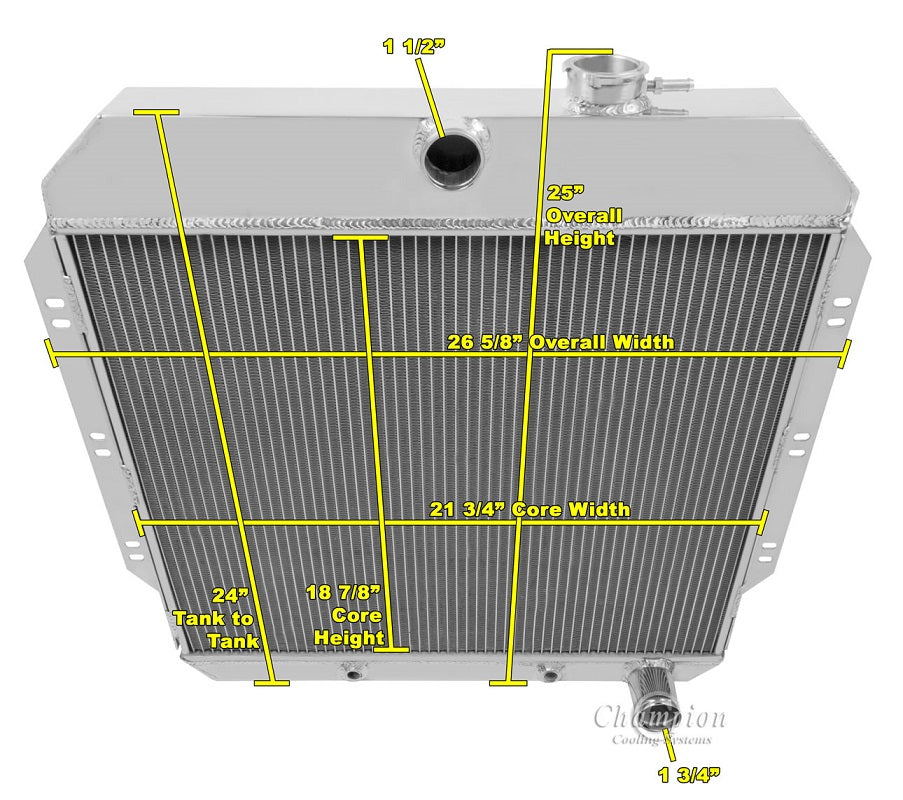

Radiator Dimensions:
Total: 25" tall (with cap) x 26.63" wide (including brackets)
Core: 18.88" tall x 21.75" wide x 2." thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 straight thread)
