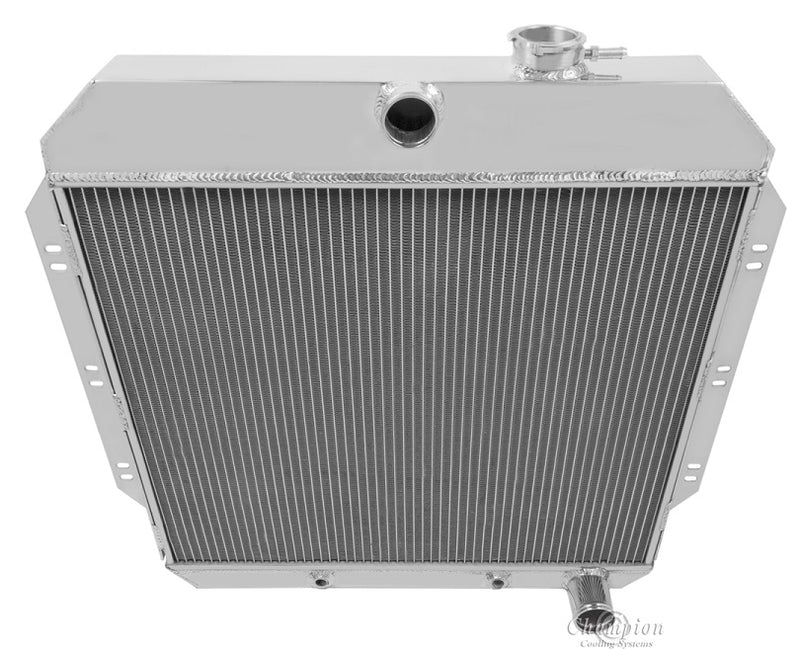

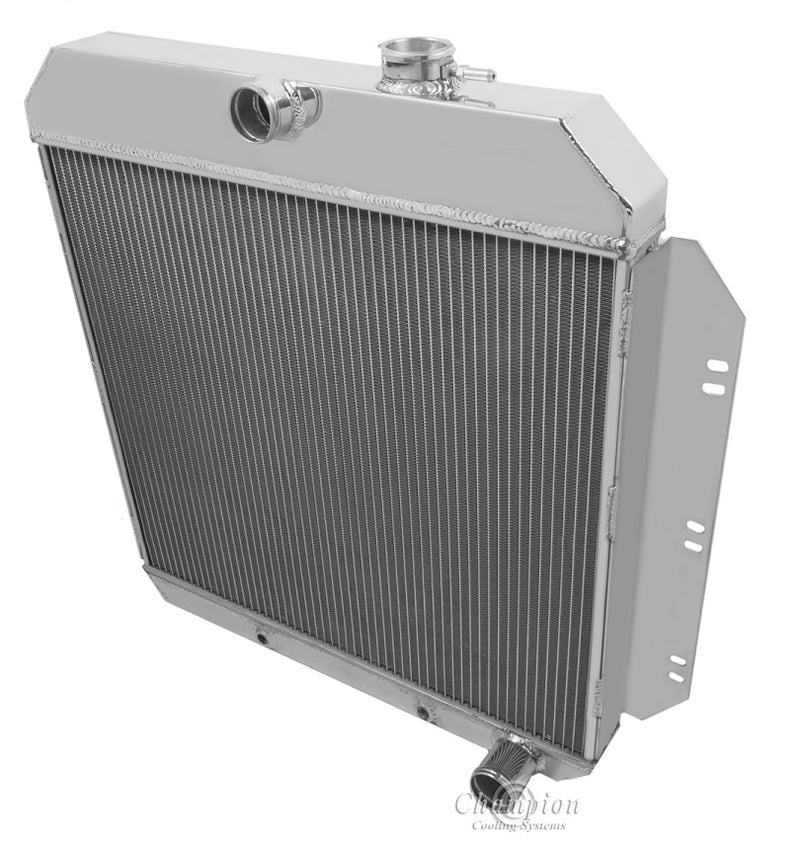

CC6062 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp

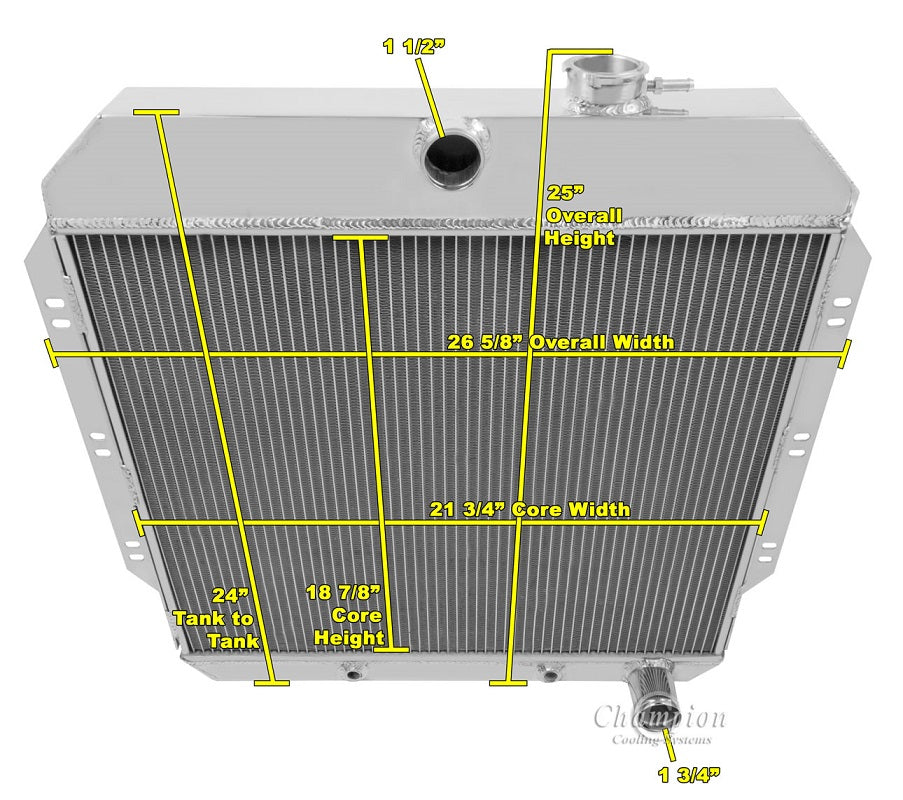

Radiators Dimensions:
Total: 25” tall (with cap) x 26.6" wide (including brackets)
Core: 18.88" tall x 21.75" wide x 2" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 straight thread)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
