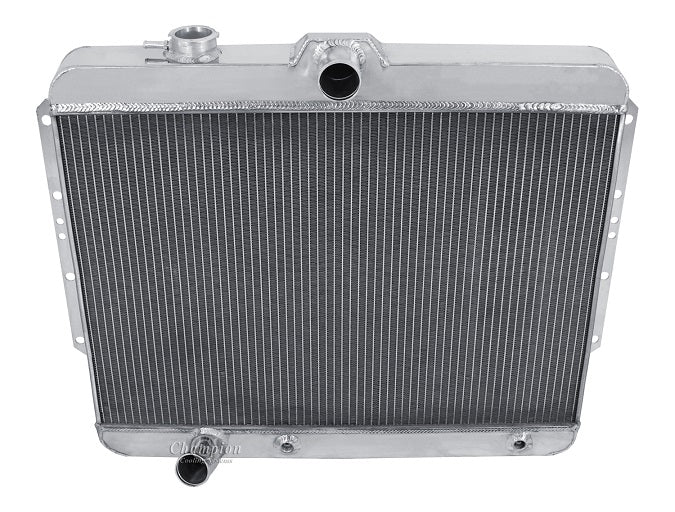

CC59CAD-AC 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 600hp
Note: This AC version has a straight lower outlet (Not Shown)

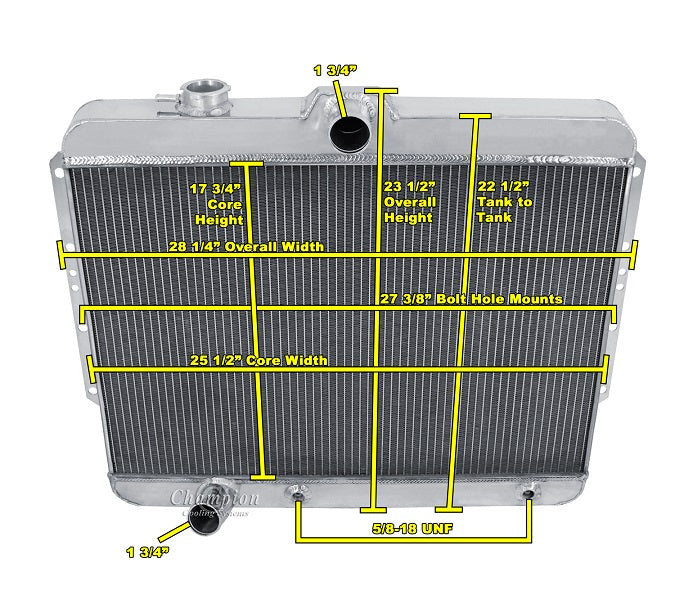

Radiator Dimensions:
Total: 22.5" tall (23.5" with cap) x 28.25" wide
Core: 17.75" tall x 25.5" wide x 2.25" thick
Inlet: 1.75" center
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

13lb. Radiator Cap Included
Transmission Cooler Included (5/8-18 UNF )

When using electric fans (sold separately):
Two 12" Electric fans or one 16" fan recommended for this core size
