CC59B-OL 3 Row

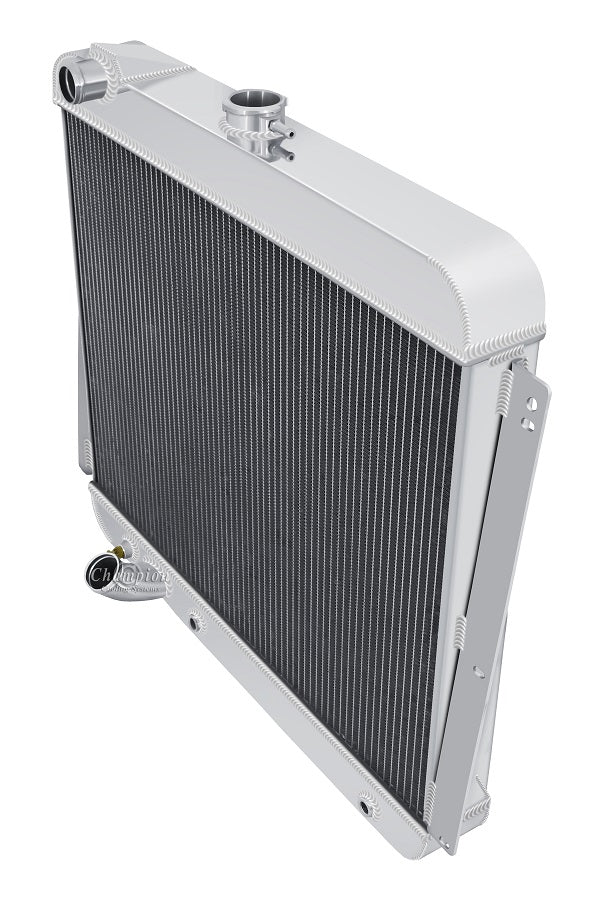

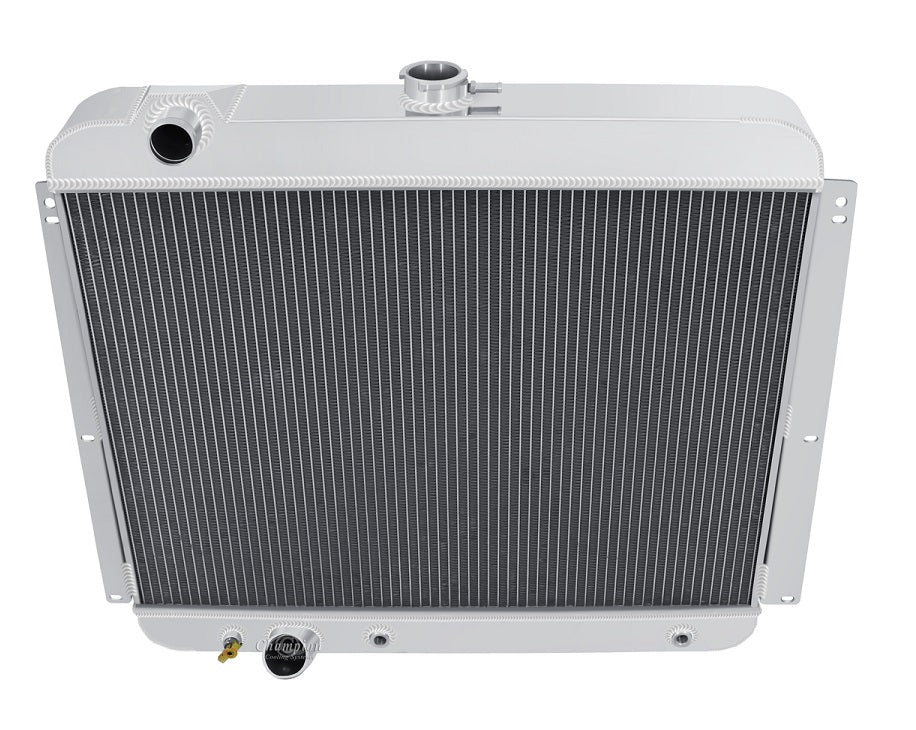

Champion All Aluminum Radiator
3-Row Core | Cools up to 600hp

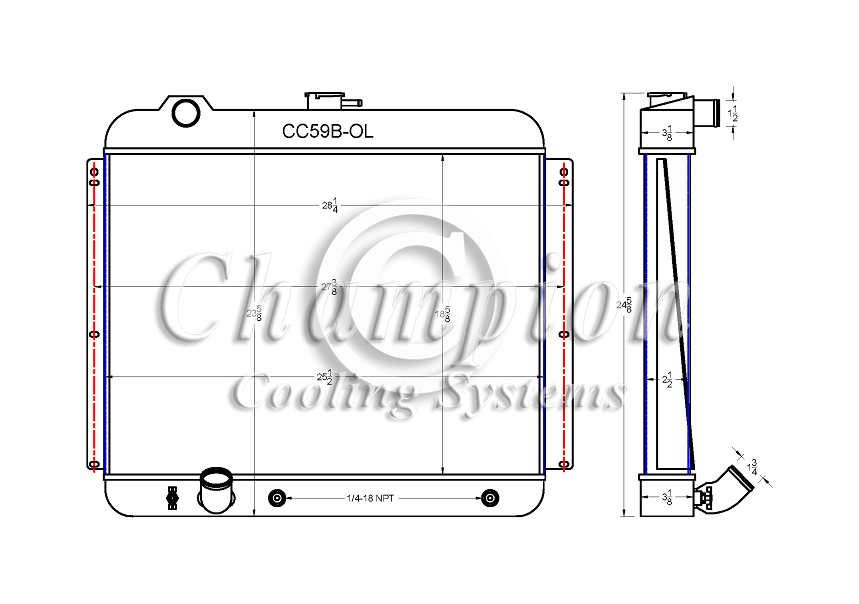

Radiator Dimensions:
Total: 23.63" tall (24.63" with cap) x 28.25" wide
Core: 18.38" tall x 25.5" wide x 2.5" thick
Inlet: 1.5" driver side
Outlet: 1.75" driver side
Tanks: 3.13" thick
Tubes: 0.75" thick

Saddle Mounted

13lb. Radiator Cap Included
Transmission Cooler Included (1/4-18 NPT)

When using electric fans (sold separately):
Two 12" Electric fans or one 16" fan recommended for this core size
