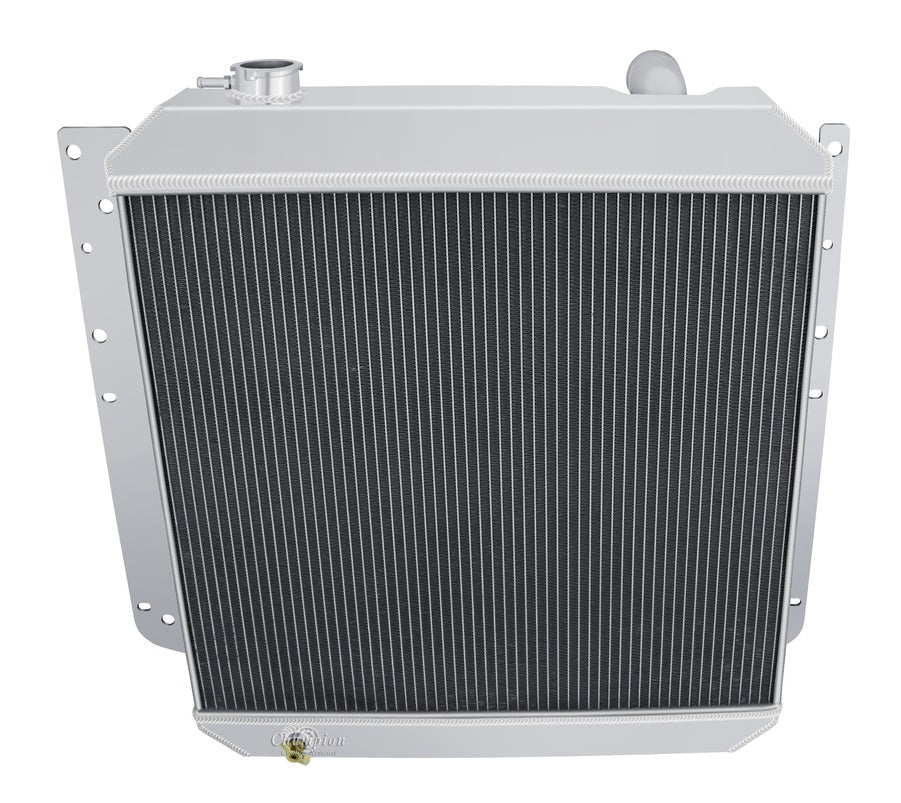

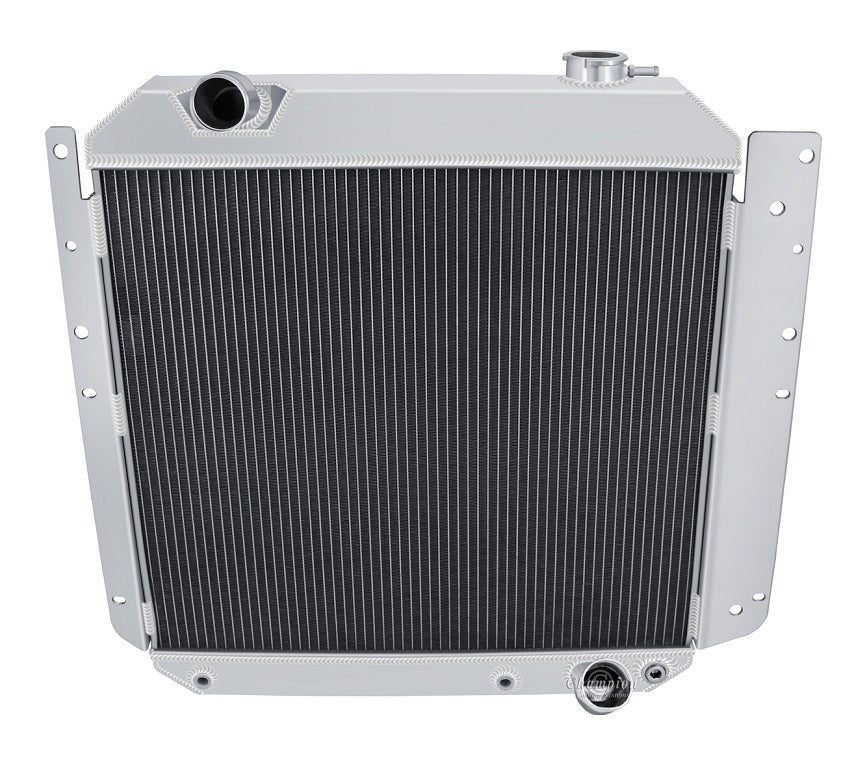

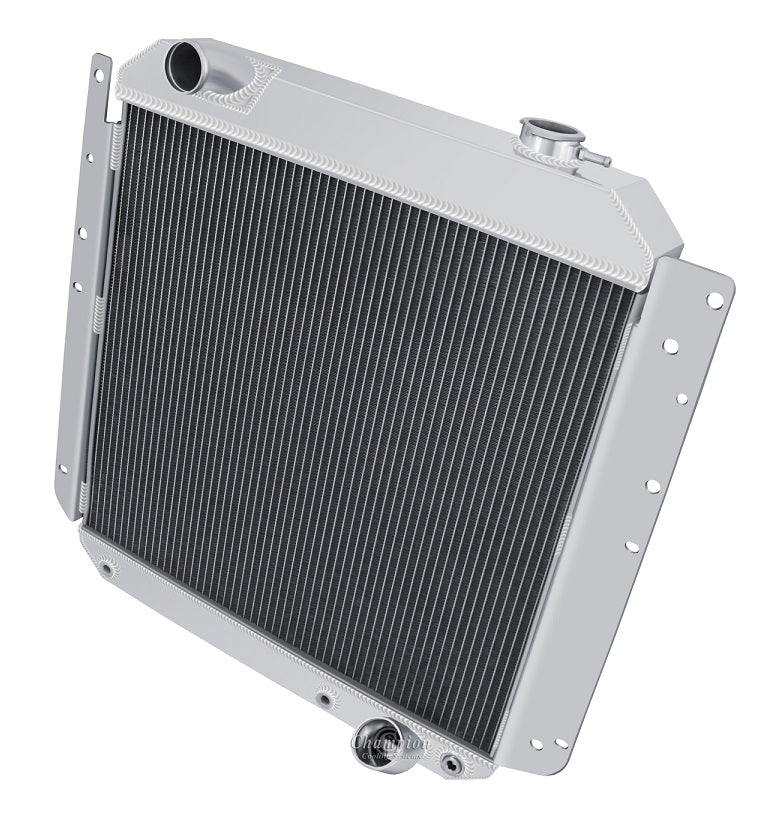

CC58PO-58POFS11CSP 3 Row Combo

Champion All-Aluminum Radiator PLUS

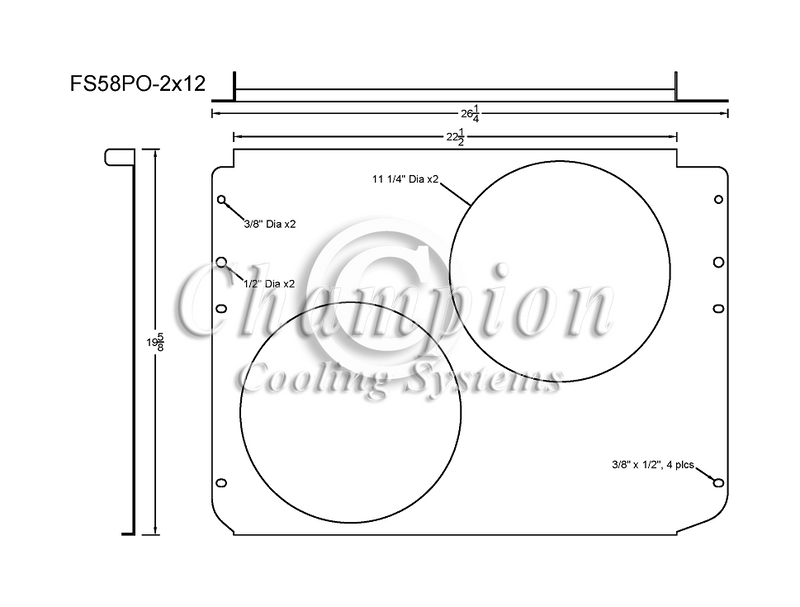

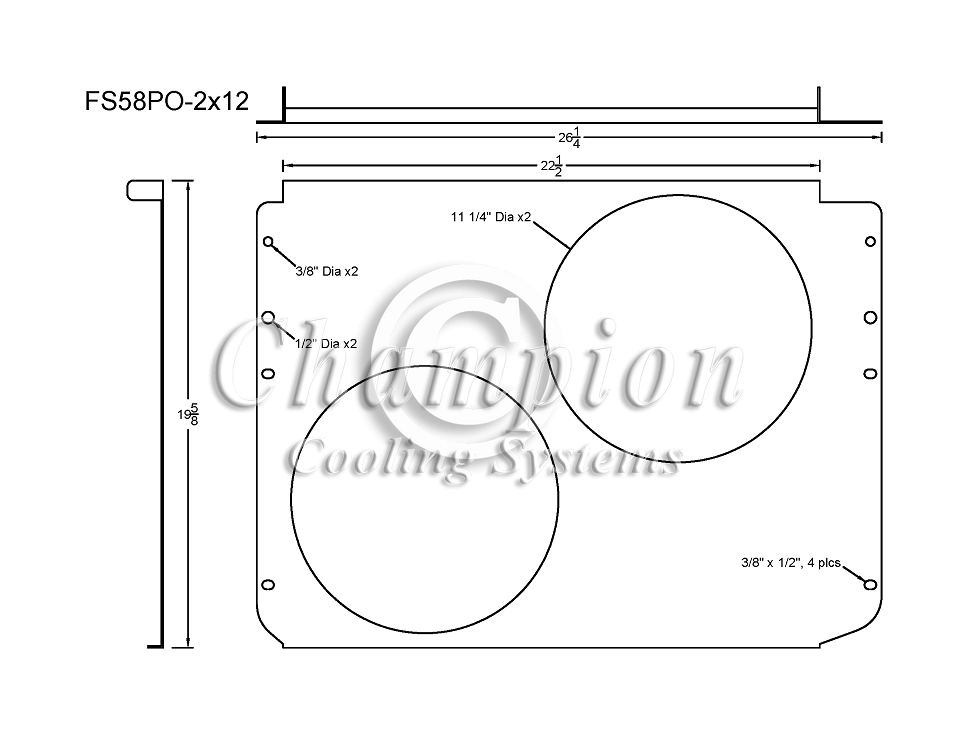

Alumiinum Shroud & (2) SPAL-1500 11" Fans
3 Row Core | Cools up to 650hp

Radiator Dimensions:
Total: 25.88" x 26.25" (with brackets)
Core: 19.88" Tall x 22" wide x 2" thick
Inlet: 1.75" drivers side
Outlet: 2" passenger side
Tanks: 3.13" upper, 2.38" lower thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/4-18 NPT)
