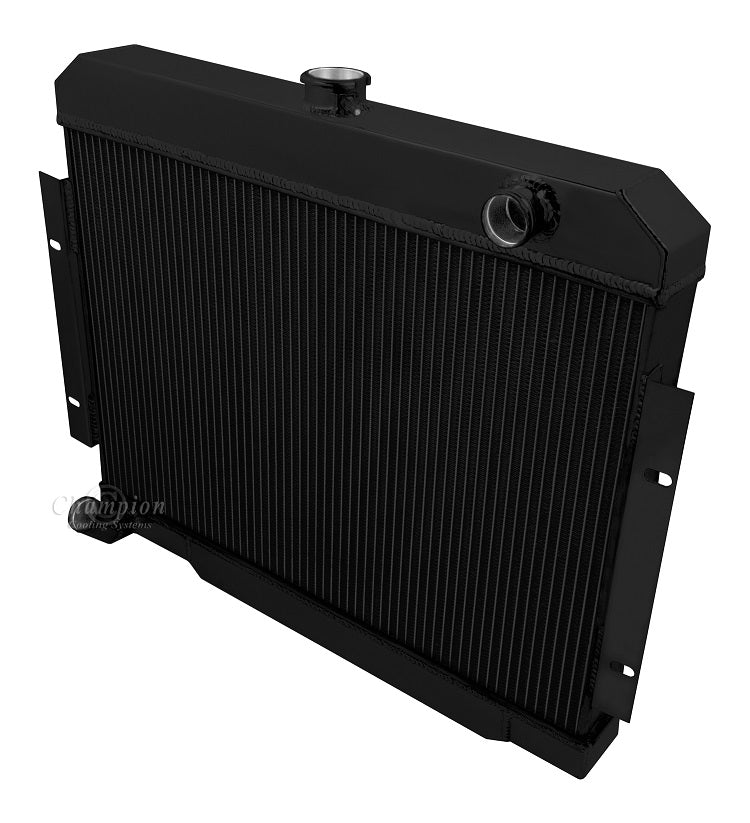

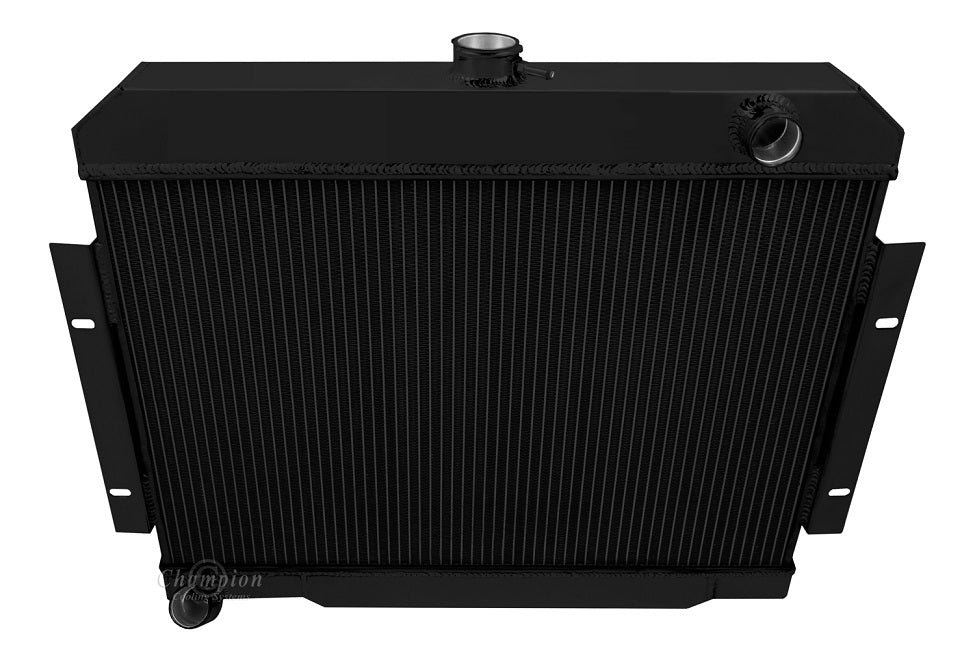

CC583-BLK 3 Row Black

Champion All Aluminum Radiator
3-Row Core | Cools up to 600hp

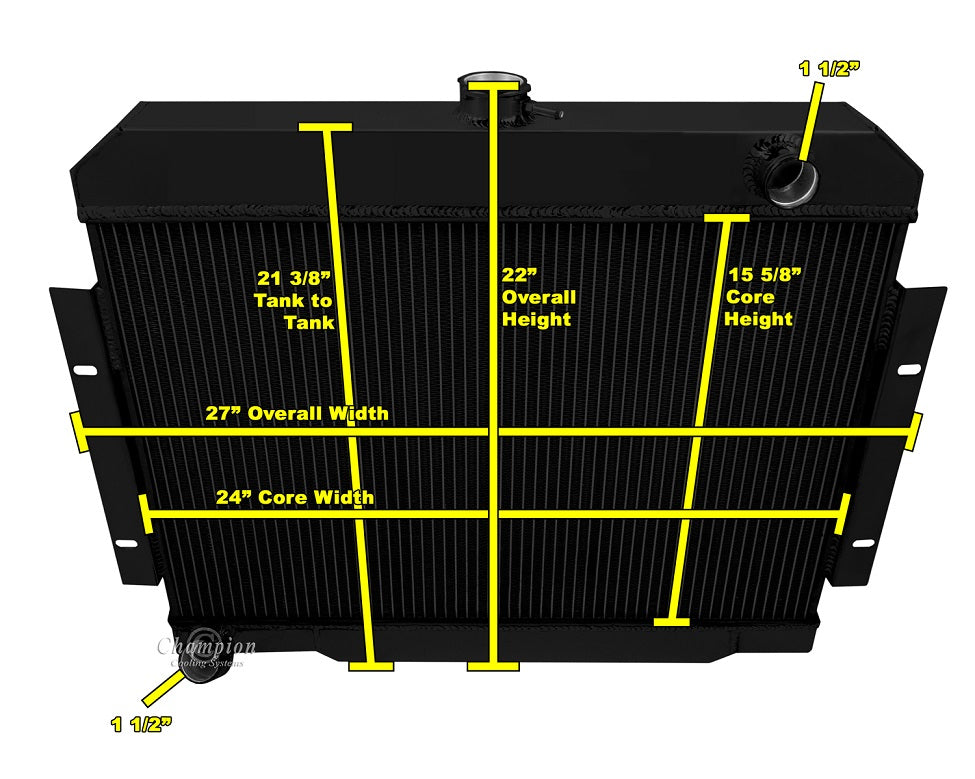

Radiator Dimensions:
Total: 27" wide (including brackets) x 22" tall
Core: 24" wide x 15.63" tall x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 2.75" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/8"-27npt)
Aluminum Shroud is also available (sold separately)

When using electric fans (sold separately):
One 16" or two 11" SPALfans recommended for this core size
