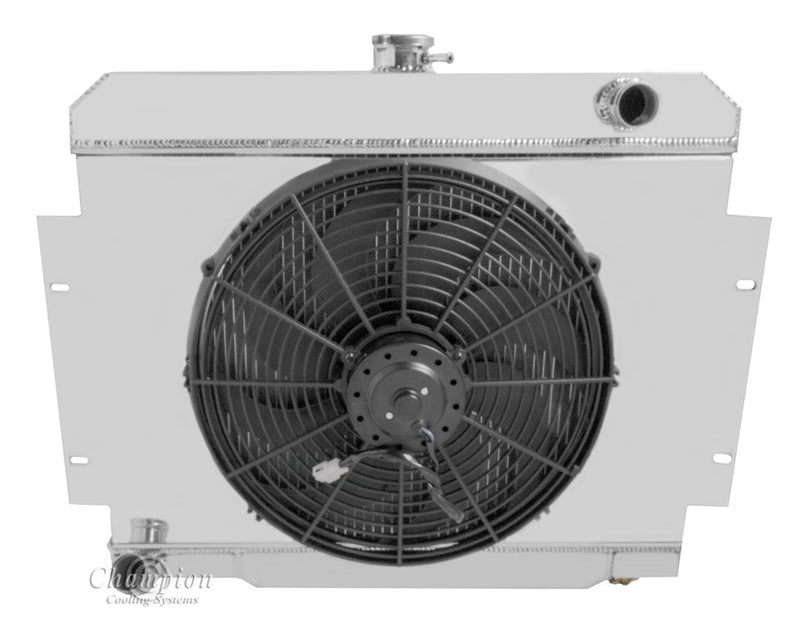

CC583-583FS16 3 Row Combo

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan
Total thickness: 6" to fan motor
3-Row Core | 600hp Rating

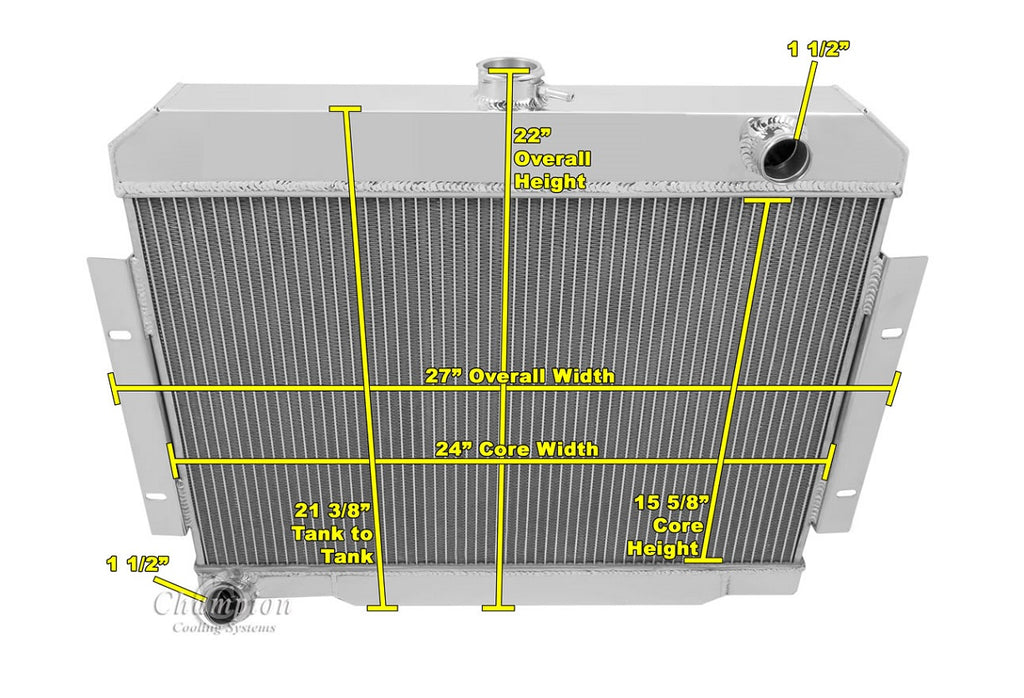

Radiator Dimensions:
Total: 22" tall x 27" wide (including brackets)
Core: 15.63" tall x 24" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 2.75" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/8"-27npt)
