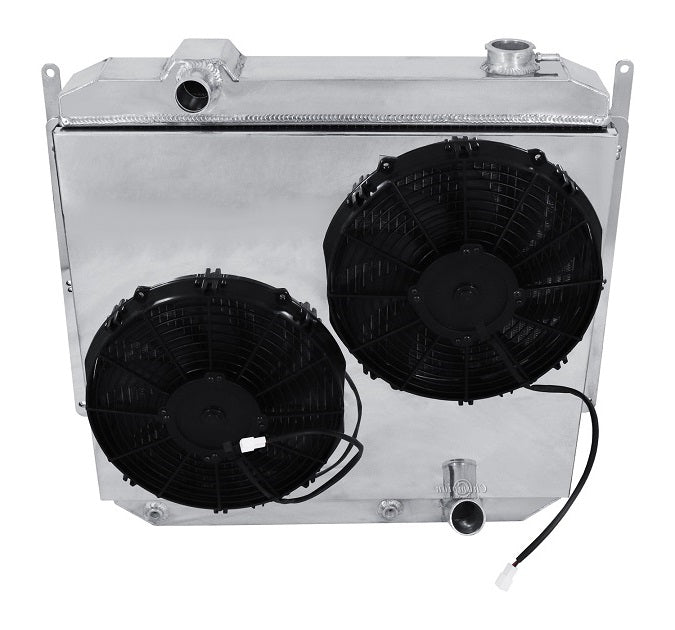

CC57OLCH-57OLFS12CSP 3 Row Chevy V8

Champion Cooling Aluminum Radiator PLUS
Aluminum Shroud and (2) SPAL-1522 12" Fans
3 Row Core | Cools up to 650hp
Chevy Conversions, Fans are in opposite corners than in photo

Radiator Dimensions:
Total: 26.63" x 26.75" (with brackets)
Core: 20.5" Tall x 24" wide x 2.25" thick
Inlet: 1.5" drivers side
Outlet: 1.75" passenger side
Tanks: 3.13" upper, 2.5" lower thick
Tubes: 0.68" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2 20 Straight Thread, Inverted Flare)
