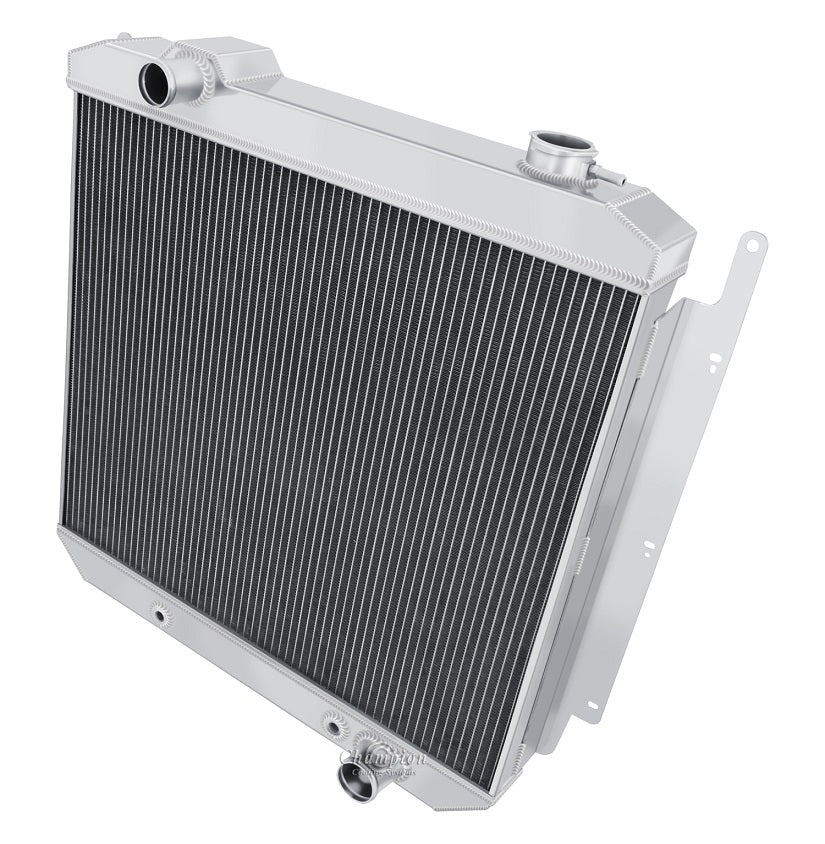

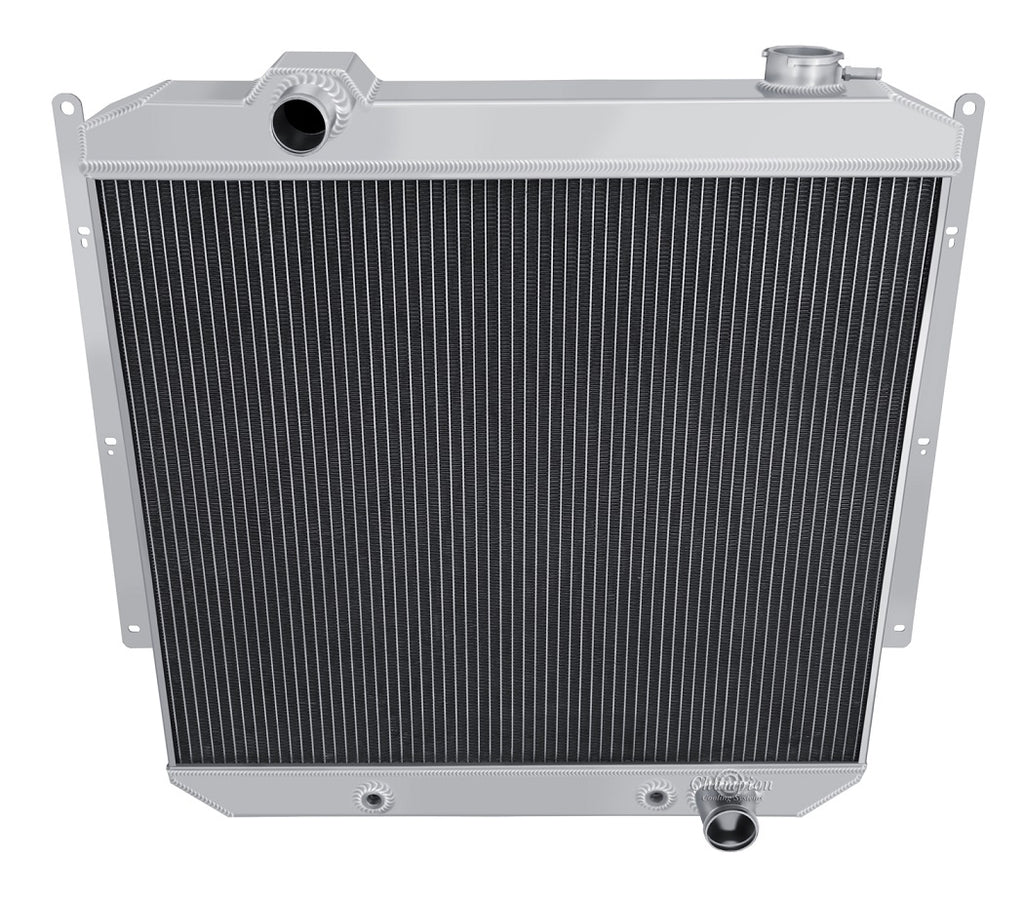

CC57OLCH 3 Row Chevy Motor

Champion Cooling All-Aluminum Radiator
3 Row Core | Cools up to 650hp
Chevy Conversions

Radiator Dimensions:
Total: 26.63" x 26.75" (with brackets)
Core: 20.5" Tall x 24" wide x 2.25" thick
Inlet: 1.5" drivers side
Outlet: 1.75" passenger side
Tanks: 3.13" upper, 2.5" lower thick
Tubes: 0.68" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2 20 Straight Thread, Inverted Flare)

When using electric fans:
One 16" or two 12" Electric fan(s) recommended for this core size (sold separately)
