Description

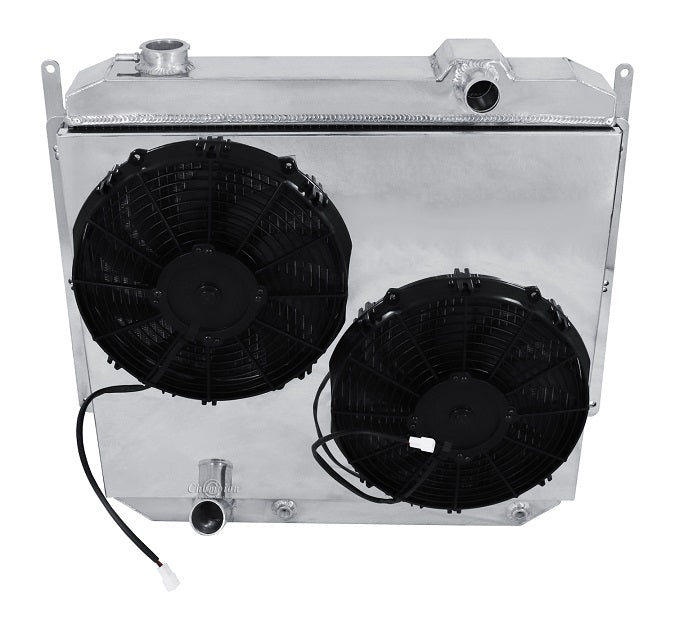

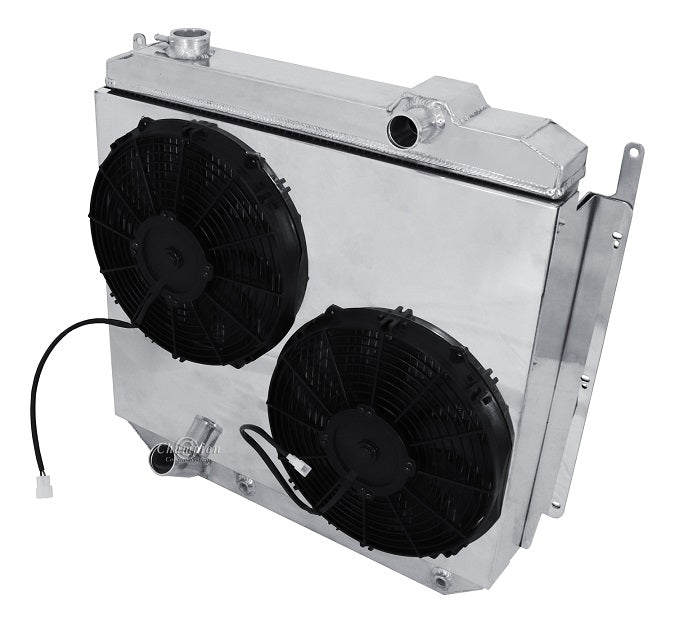

Champion Cooling Aluminum Radiator PLUS
Aluminum Shroud and (2) SPAL-1522 12" Fans
3 Row Core | Cools up to 650hp

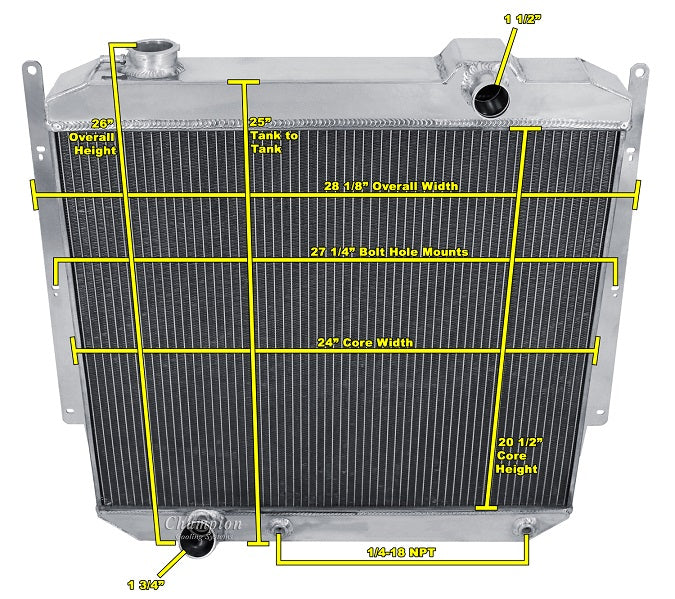

Radiator Dimensions:
Total: 26.63" x 26.75" (with brackets)
Core: 20.5" Tall x 24" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3.13" upper, 2.5" lower thick
Tubes: 0.68" thick
Bracket Mounted
13 lb. Radiator Cap included
Transmission Cooler included (1/4-18 NPT)
Aluminum Shroud and (2) SPAL-1522 12" Fans
3 Row Core | Cools up to 650hp
Radiator Dimensions:
Total: 26.63" x 26.75" (with brackets)
Core: 20.5" Tall x 24" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3.13" upper, 2.5" lower thick
Tubes: 0.68" thick
Bracket Mounted
13 lb. Radiator Cap included
Transmission Cooler included (1/4-18 NPT)
LIFETIME WARRANTY
PRICE MATCH GUARANTEE
