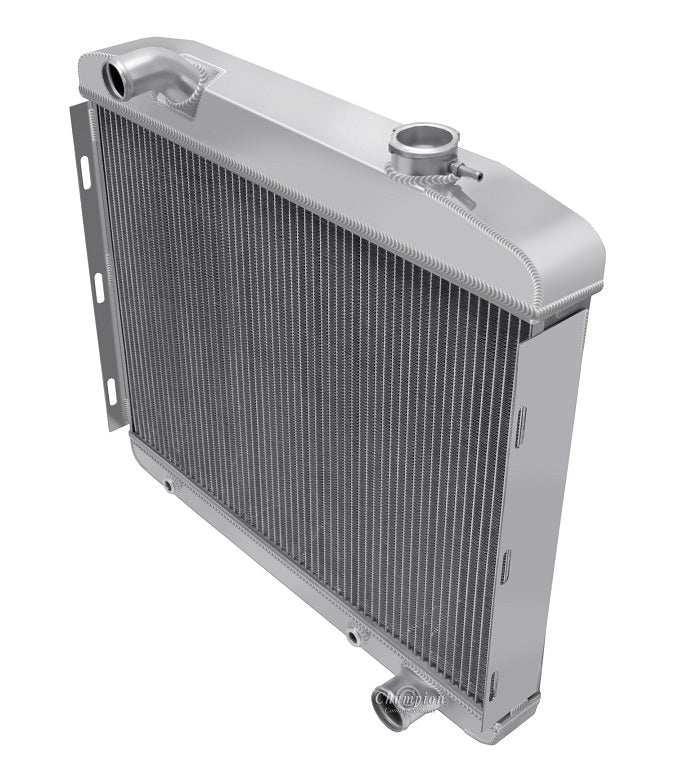

CC57L6 3 Row

Champion All Aluminum Radiator
6 cyl Mounts, attaches to the bumper side of the core support
ONLY FITS 1957 DOES NOT FIT 1955-1956
3-Row Core | Cools 650hp

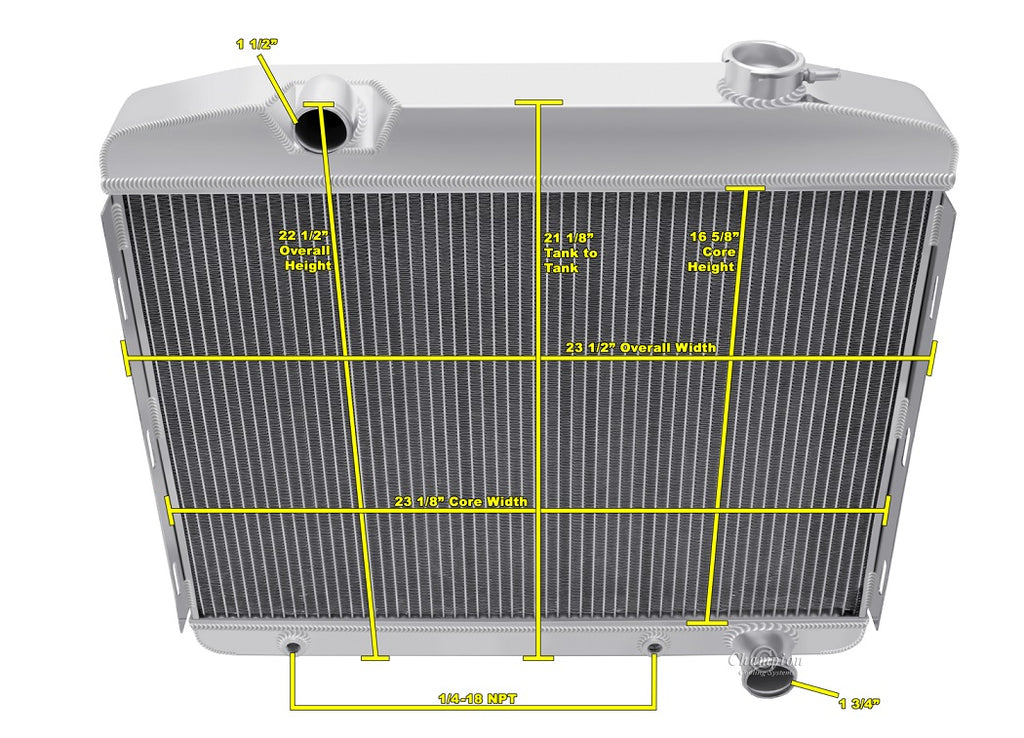

CC57L6 Radiator Dimensions:
Total: 22.5" tall x 23.5" (including brackets)
Core: 16.63" tall x 23.13" wide x 2." thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 3" thick (top) / 2.38" thick (bottom)
Tubes: 0.75" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2"- 20 straight thread)


When using electric fans:
One 16" or two 10" Electric fans recommended for this core size (sold separately)
