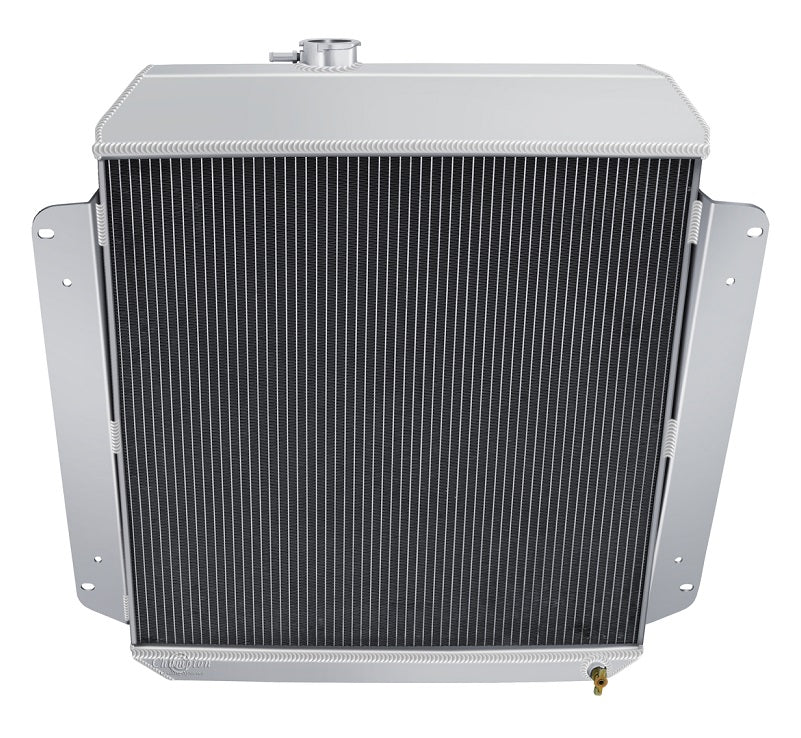

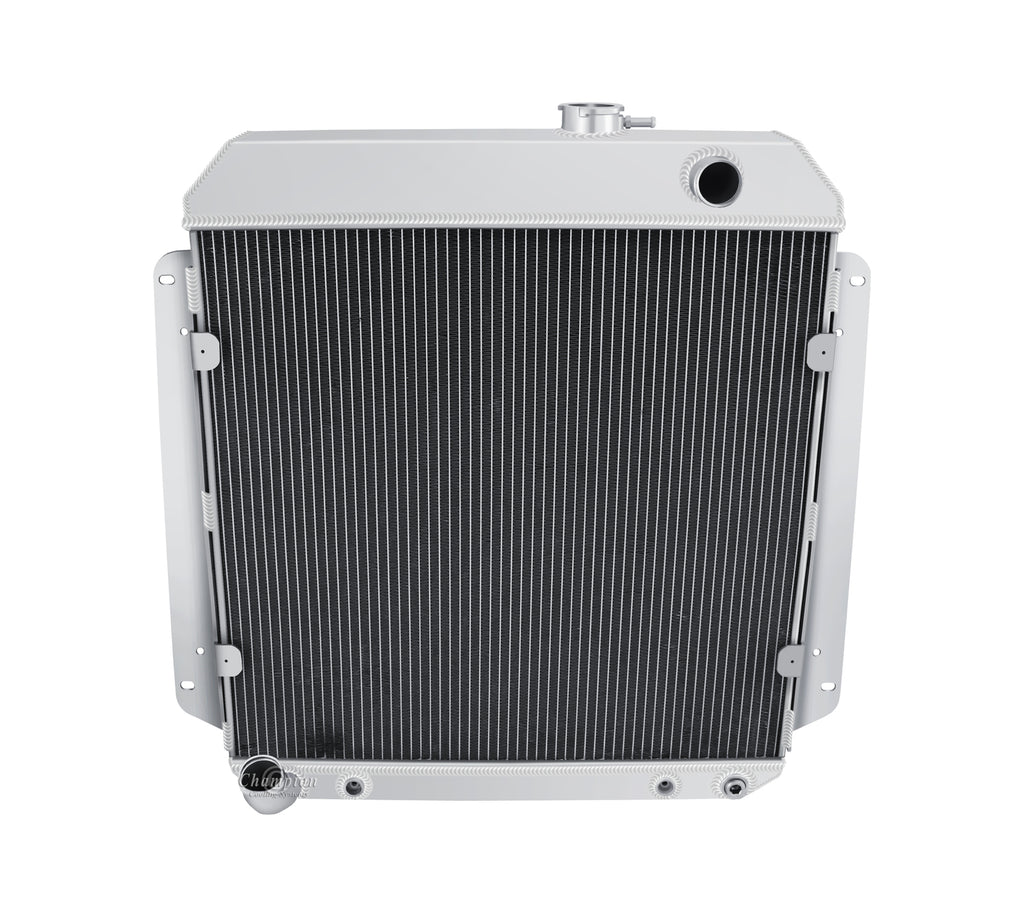

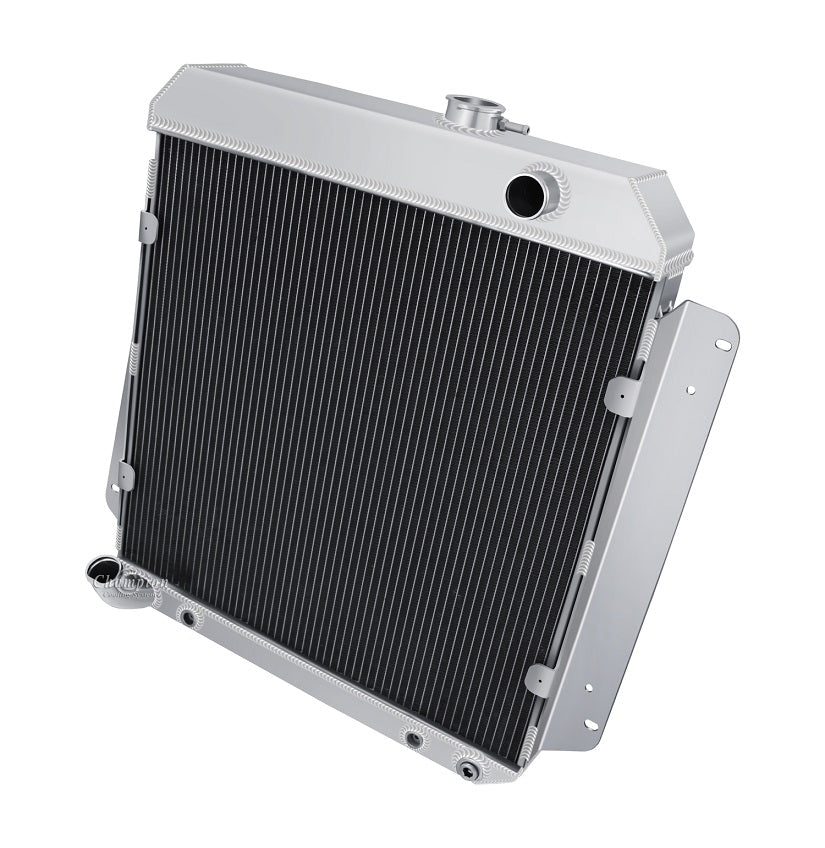

CC57BU 3 Row – 3-Row Aluminum Radiator

Champion Cooling All-Aluminum Radiator
3 Row Core | Cools up to 600hp

This CC57BU is a 3-row aluminum radiator built for serious cooling capacity, making it a great fit for engines producing up to 600hp. As a universal aluminum radiator, it's designed with bracket mounting to fit a wide range of vehicle applications.

Radiator Dimensions:
Total: 26.63" x 26.75" (with brackets)
Core: 20.75" Tall x 22" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.63" driver side
Tanks: 3.5" upper, 2.5" lower
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (5/8-18 Inverted Flare)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
