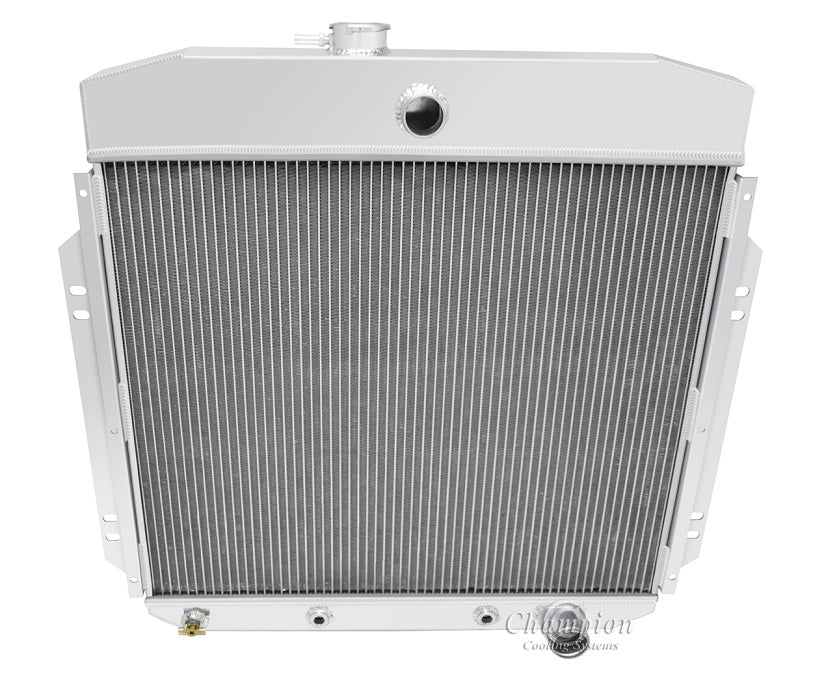

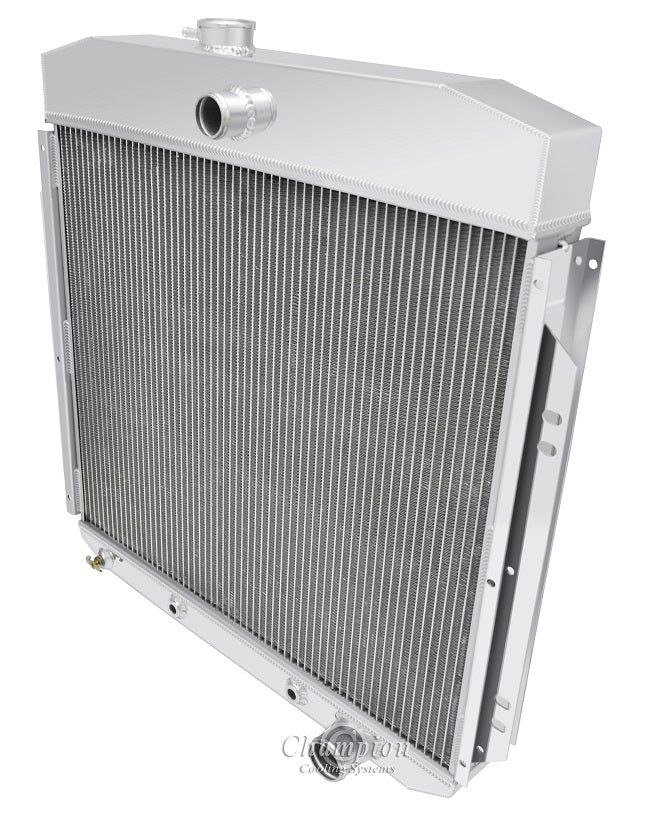

CC5760CH 3 Row Passenger Outlet

Fits Chevy V8's / Ford 6 cyl
All Aluminum Champion Radiator
3-Row Core | Cools up to 650hp

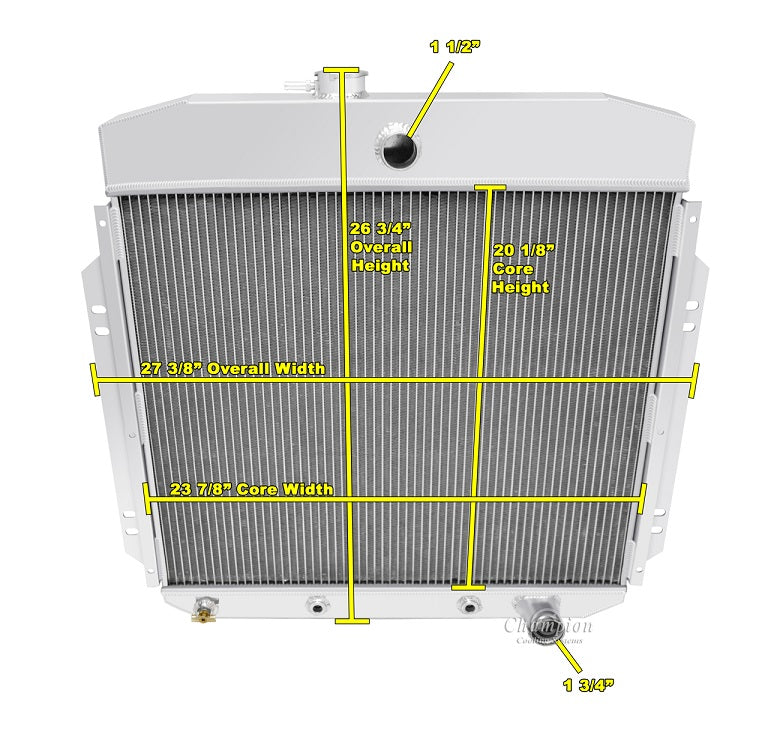

Radiator Dimensions:
Total: 26.75" tall (with cap) x 27.38" wide (including brackets)
Core: 20.13" tall x 23.87" wide x 2.25" thick
Inlet: 1.5"
Outlet: 1.75"
Tanks: upper 3.13" thick, Lower 2.63" thick
Tubes: 0.63" thick

Bracket Mounted

Transmission Cooler Included (1/2"-20 Straight Thread)
13 lb. Radiator Cap included
Aluminum shroud is also available (sold separately)

When using electric fans:
One 16" Electric fans recommended for this core size (sold separately)
