CC5759-6 3 Row for L6's

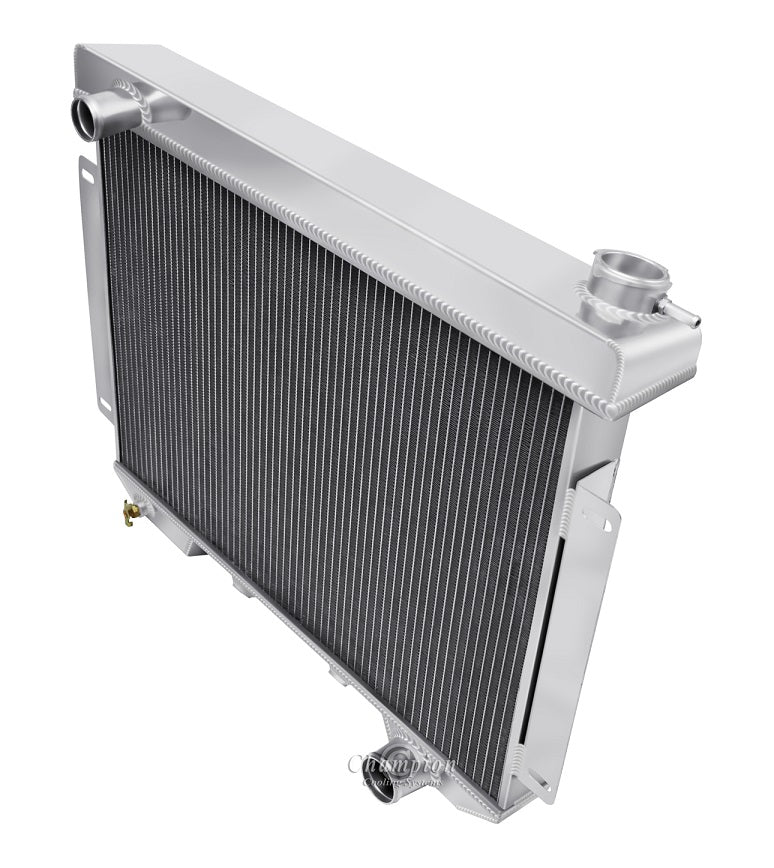

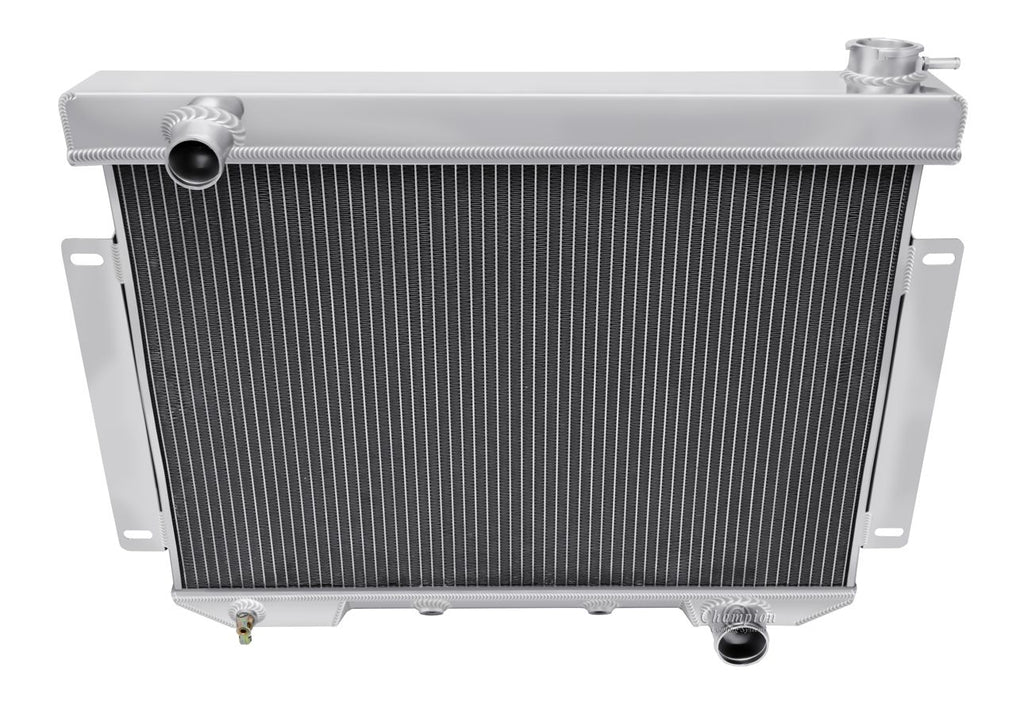

Champion All Aluminum Radiator
3-Row Core | Cools up to 450hp

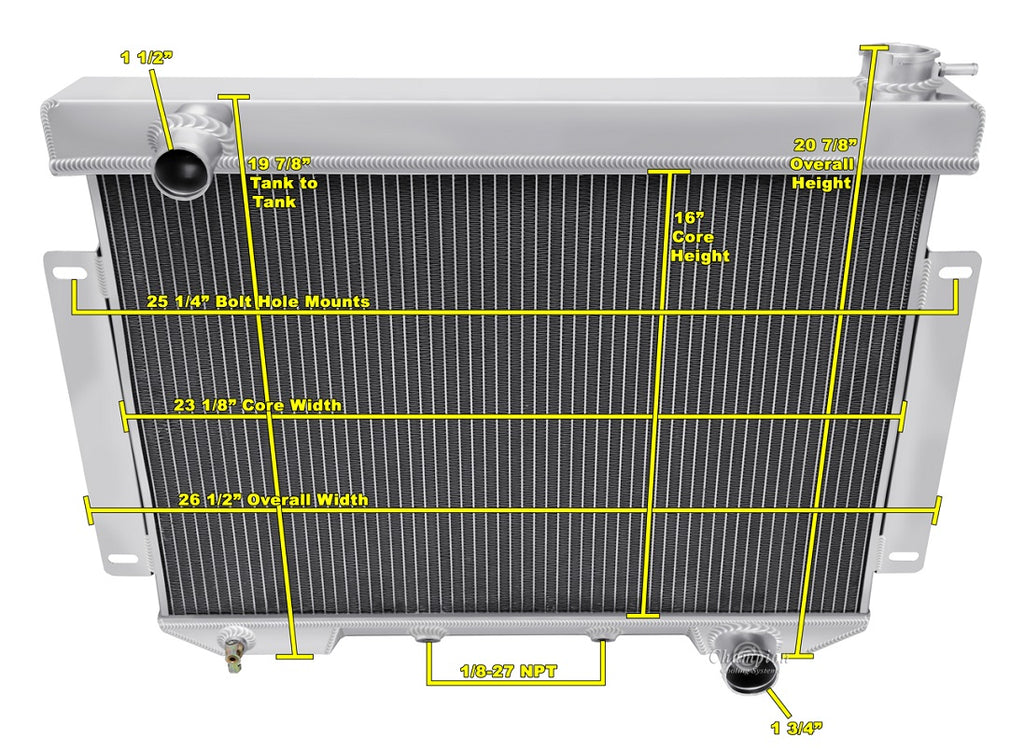

Radiator Dimensions:
Total: 20.83" tall x 26.5" wide (with brackets)
Core: 16" tall x 23.13" wide x 2" thick
Inlet: 1.5" passenger
Outlet: 1.75" driver
Tanks: Upper tank 3.5" thick
Lower tank 2.38" thick
Tubes: 0.63" thick

13 lb. Radiator Cap included
Transmission Cooler (1/8-27 NPT)

Bracket Mounted

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size
