CC573 3 Row

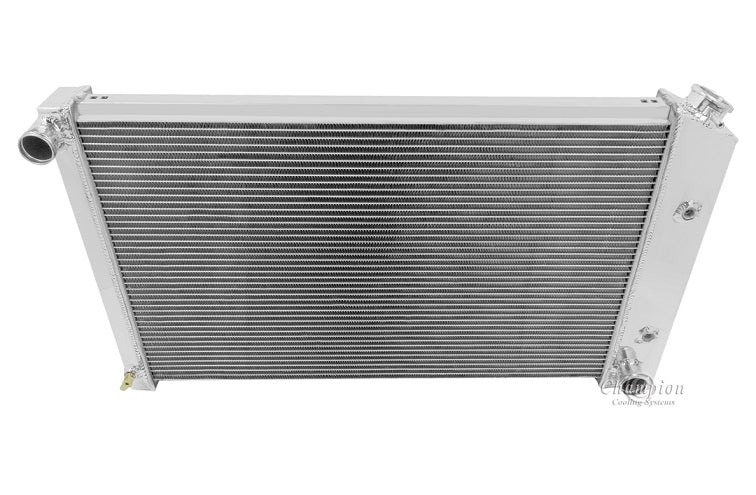

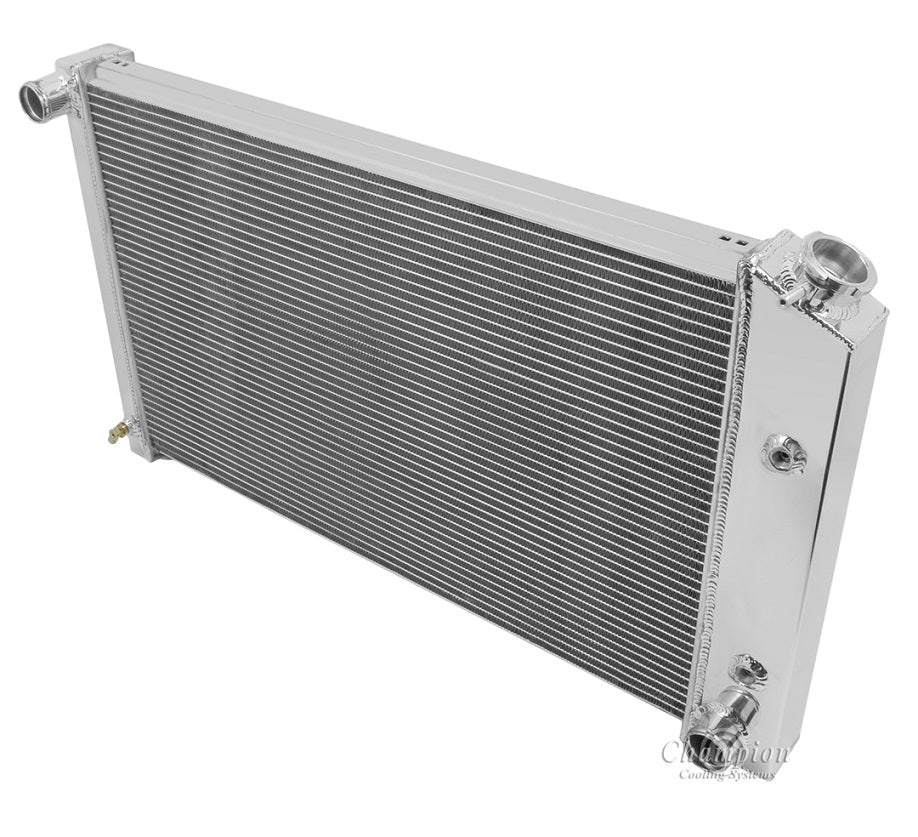

Champion All Aluminum Radiator
3-Row Core | Cools up to 750hp

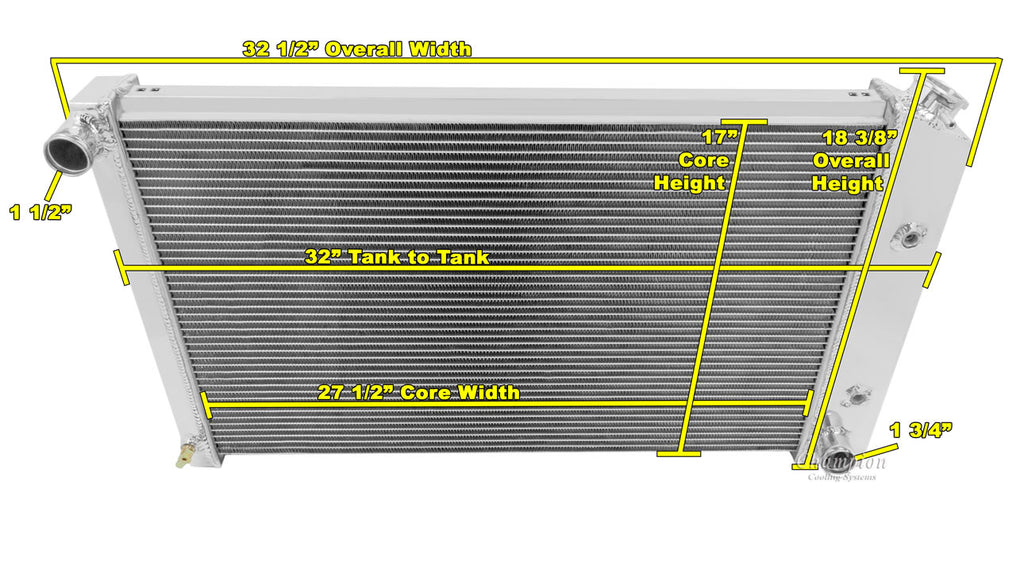

Radiator Dimensions:
Total: 18.5" tall x 32.5" wide
Core: 16.75" tall x 27.75" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2" -20 STRAIGHT THREAD)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)
