CC571-M 3 Row Manual

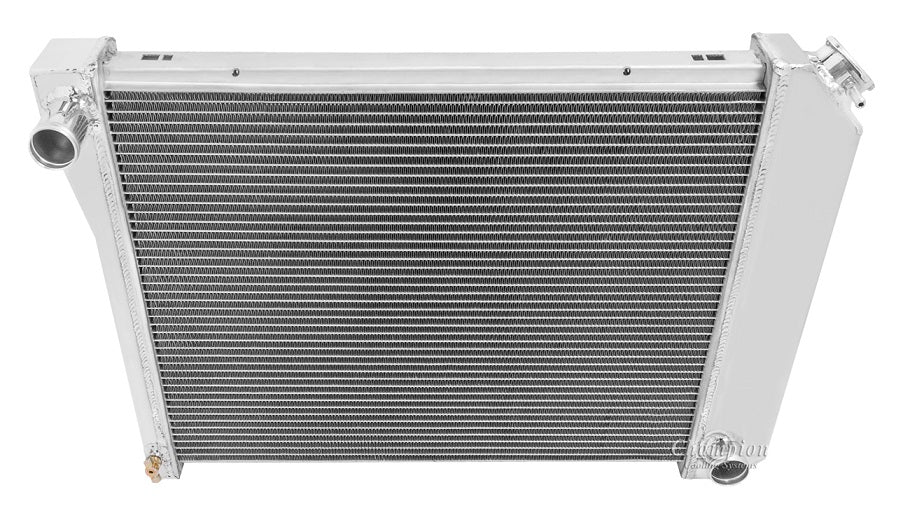

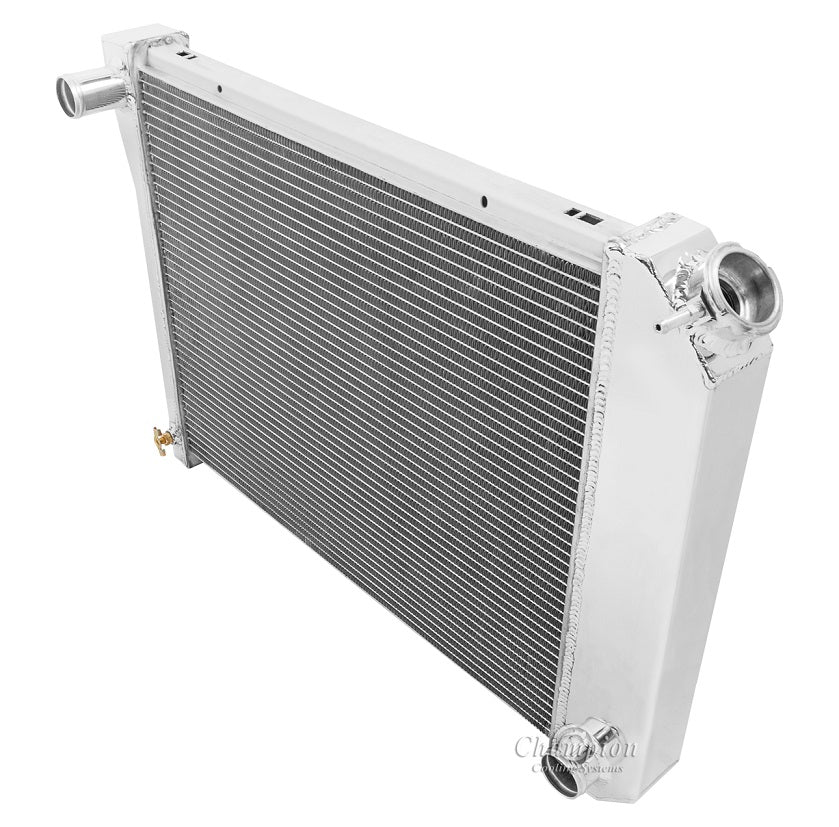

Champion All Aluminum Radiator
3-Row Core | Cools up to 500hp
MANUAL TRANSMISSION ONLY

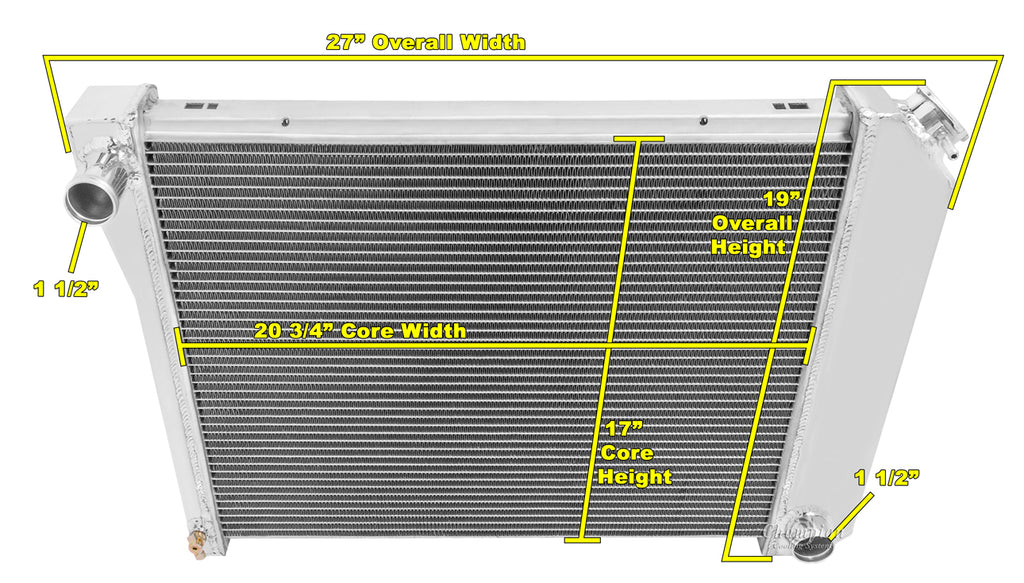

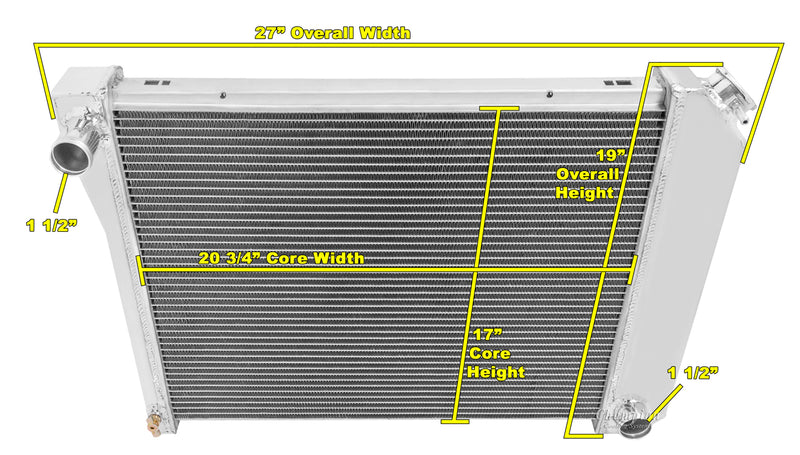

Radiator Dimensions:
Total: 18.5" tall (18.75" with cap) x 27" wide
Core: 16.75" tall x 21.25" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
NO Transmission Cooler Included

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
