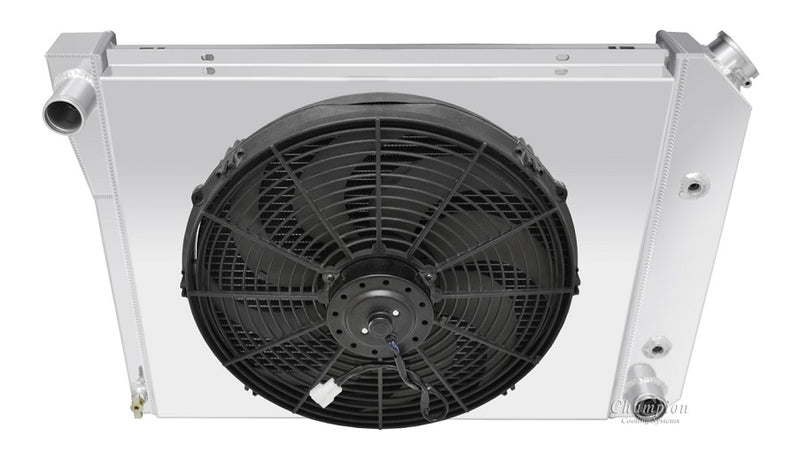

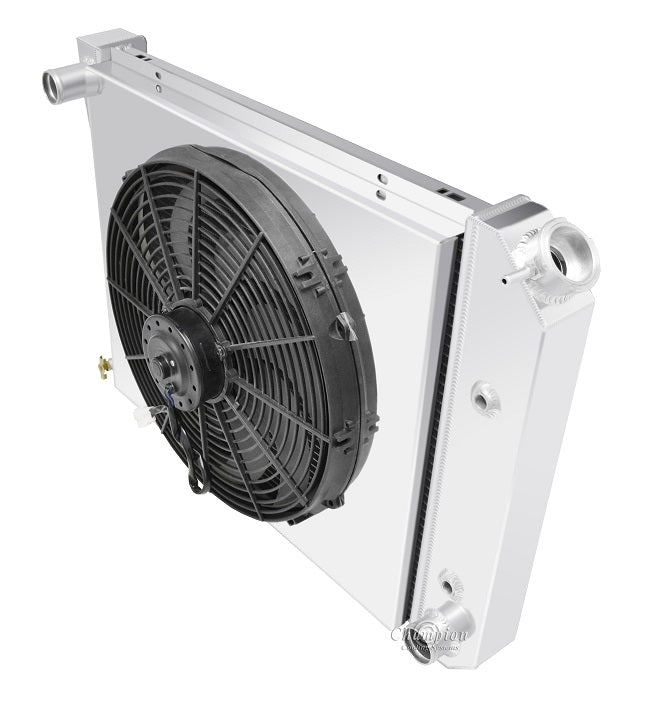

CC571-571FS16 3 Row Combo

Champion All Aluminum Radiator
Plus Aluminum Shroud & 16" Fan
3-Row Core | 500hp Rating

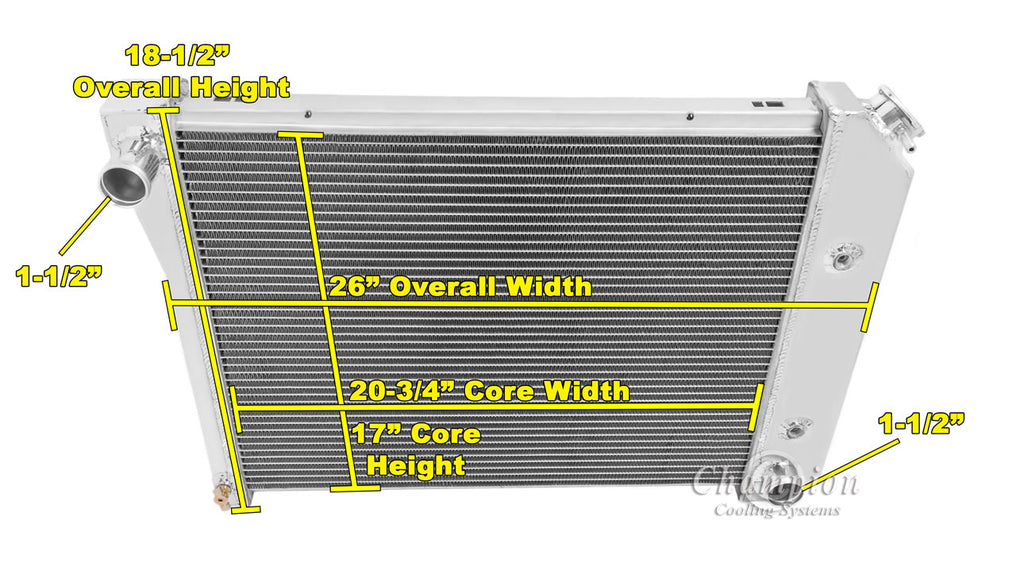

Radiator Dimensions:
Total: 18.5" tall (18.75" with cap) x 27" wide
Core: 16.75" tall x 21.25" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)
