CC55PO 3 Row

Champion Cooling All-Aluminum Radiator
3 Row Core | Cools up to 650hp

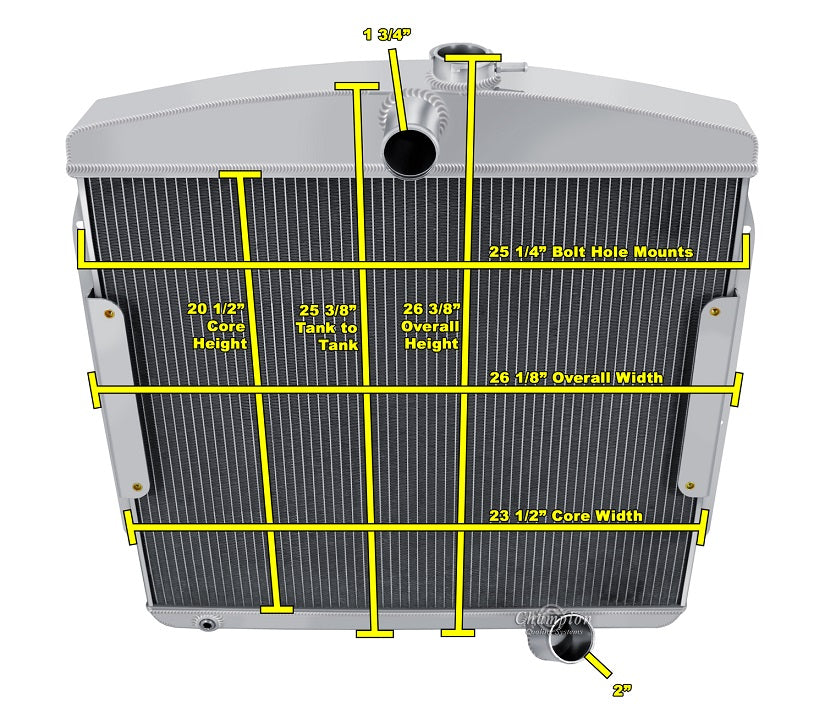

Radiator Dimensions:
Total: 26.38" tall x 26.13" wide (with brackets)
Core: 20.5" tall x 23.5" wide x 2.25" thick
Inlet: 1.75" drivers side
Outlet: 2" passenger side
Tanks: 3.25" upper, 1.5" lower thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler NOT Included

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
