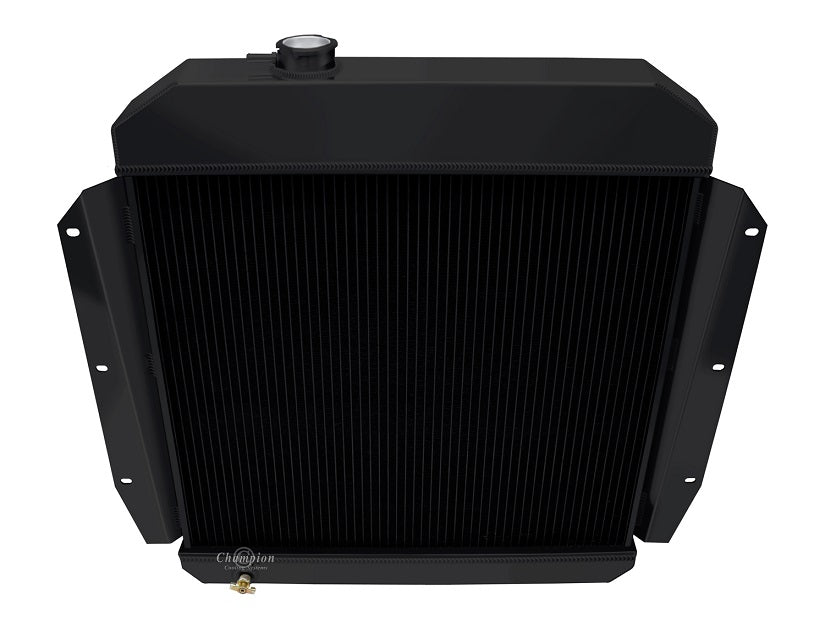

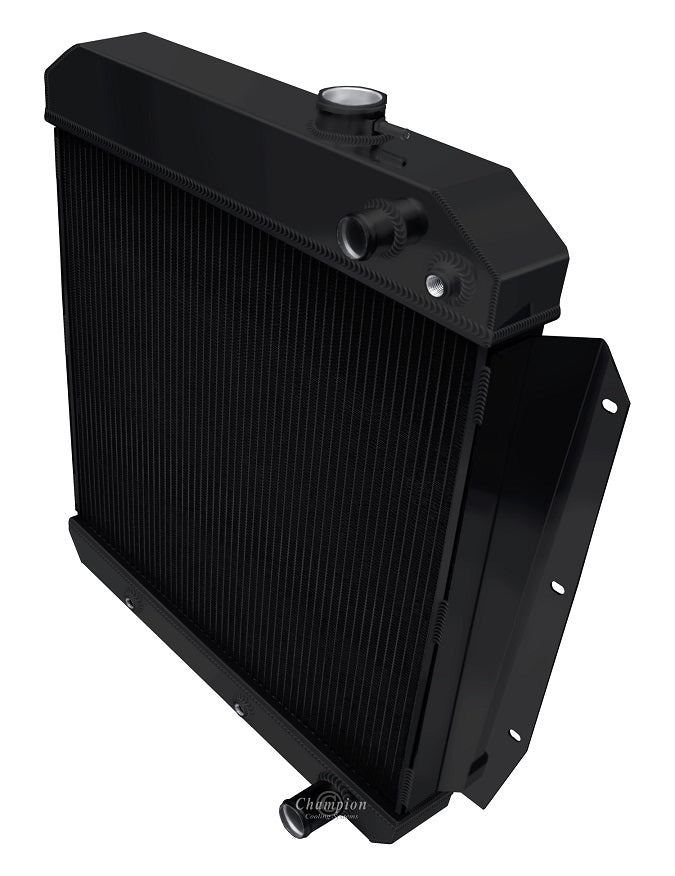

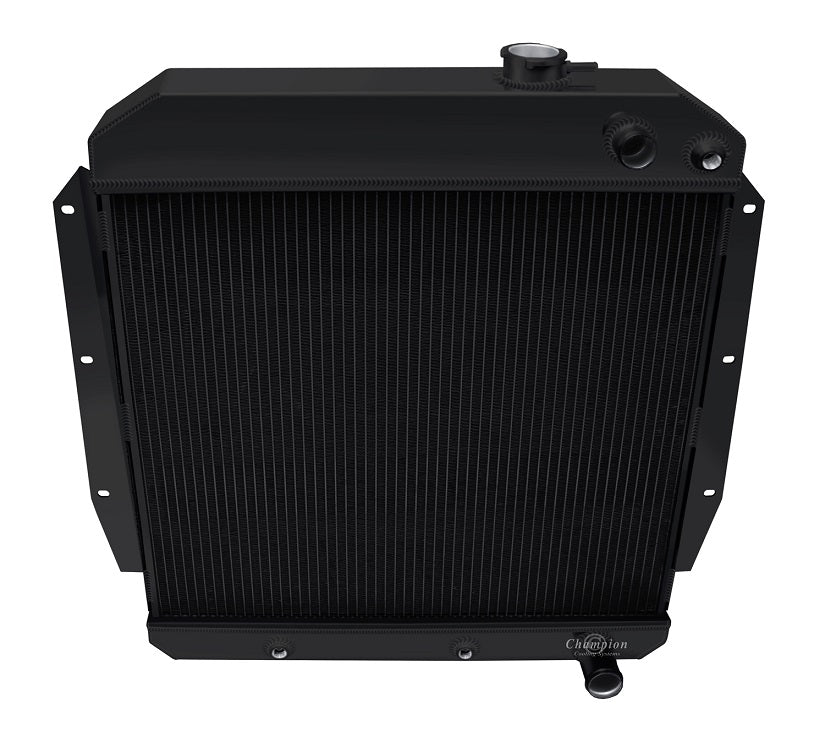

CC5559-LS-BLK 3 Row Black LS Conversion

Champion All Aluminum Radiator
3-Row Core | Cools up to 700hp
For LS Conversions (Black)

Radiator Dimensions:
Total: 26.75" tall (with cap) x 26.5" wide (with brackets)
Core: 19.38" tall x 21.75" wide x 2" thick
Inlet: 1.25" Passenger side
Outlet: 1.5" Passenger side
Tanks 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Steam port fitting and plug included
Transmission Cooler Included (1/2"-20 Straight Thread)
Aluminum shroud also available (sold separately)

When using electric fans:
One 16" fan recommended for this core size (sold separately)
