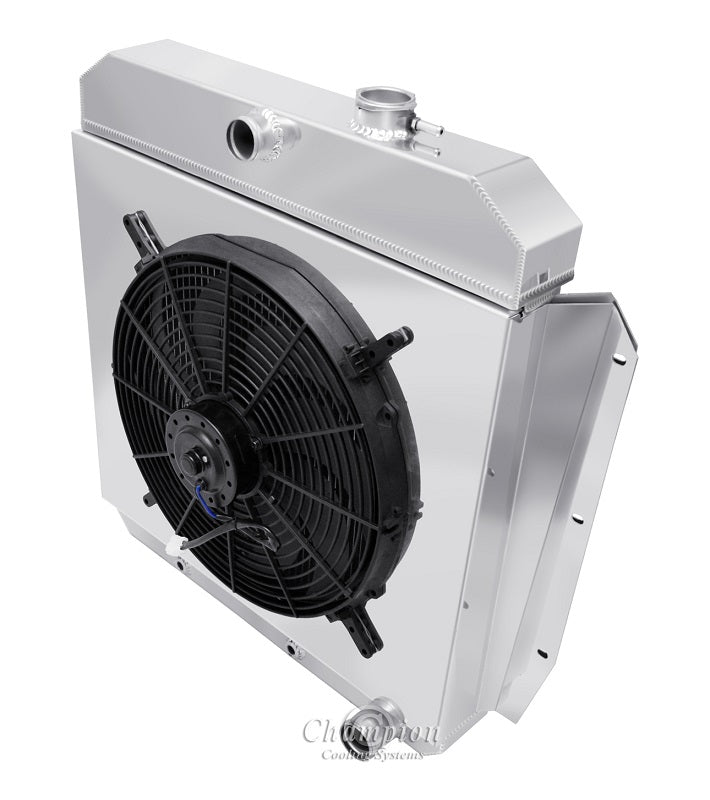

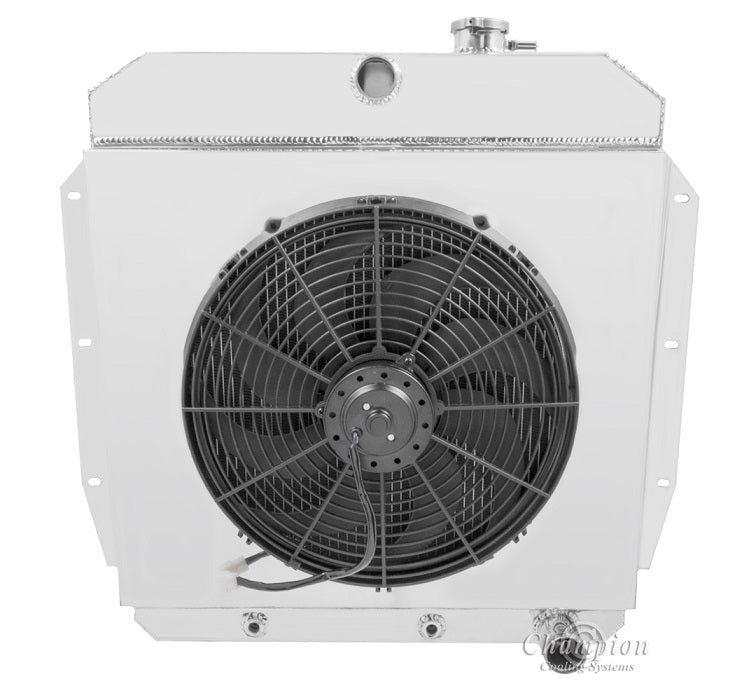

CC5559-5559FS16 3 Row Combo

Champion All Aluminum Radiator Plus
Aluminum Shroud & Pro-Series 16" Fan
Verify clearance for electric fan
Total thickness: 7.25" to fan motor
3-Row Core | 700hp Rating

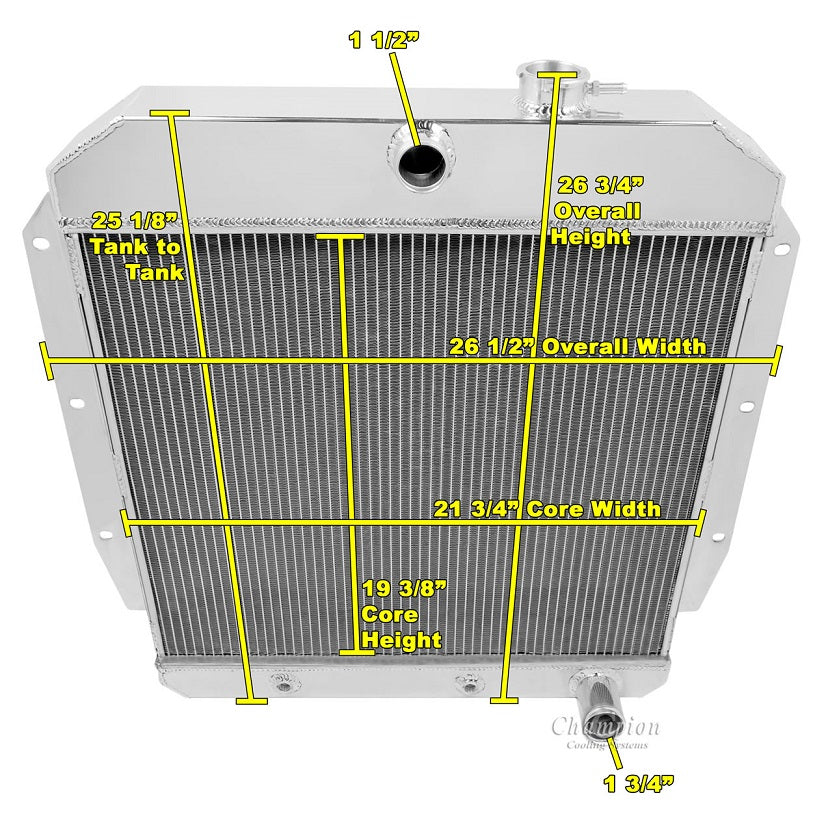

Radiator Dimensions:
Total: 26.75" tall (with cap) x 26.5" wide (including brackets)
Core: 19.38" tall x 21.75" wide x 2" thick
Inlet: 1.5" center
Outlet: 1.75" Passenger side
Tanks 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 Straight Thread)
