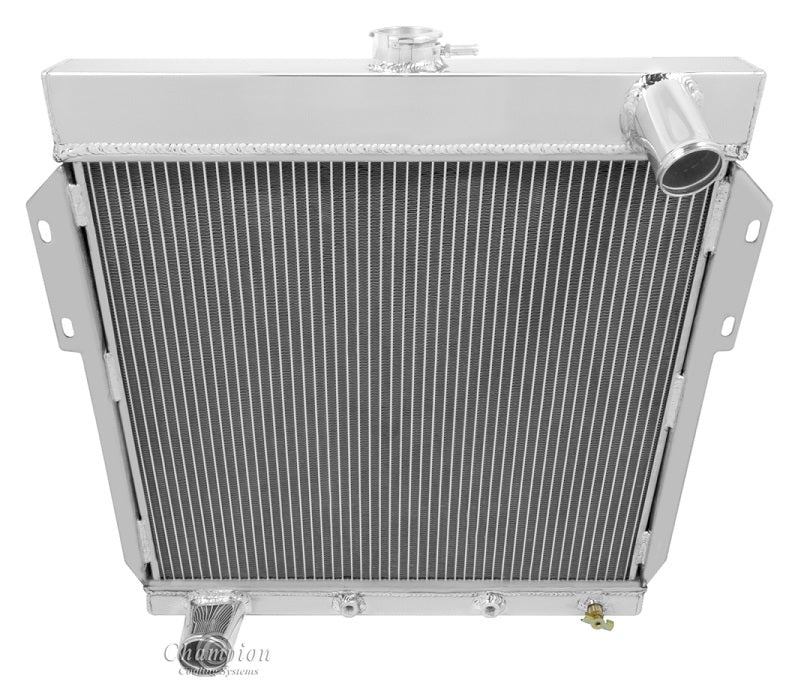

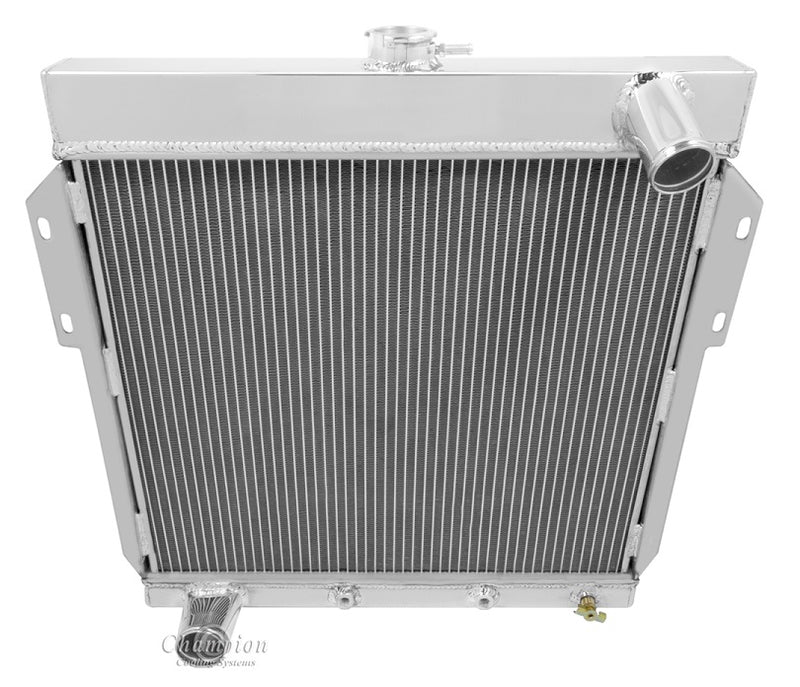

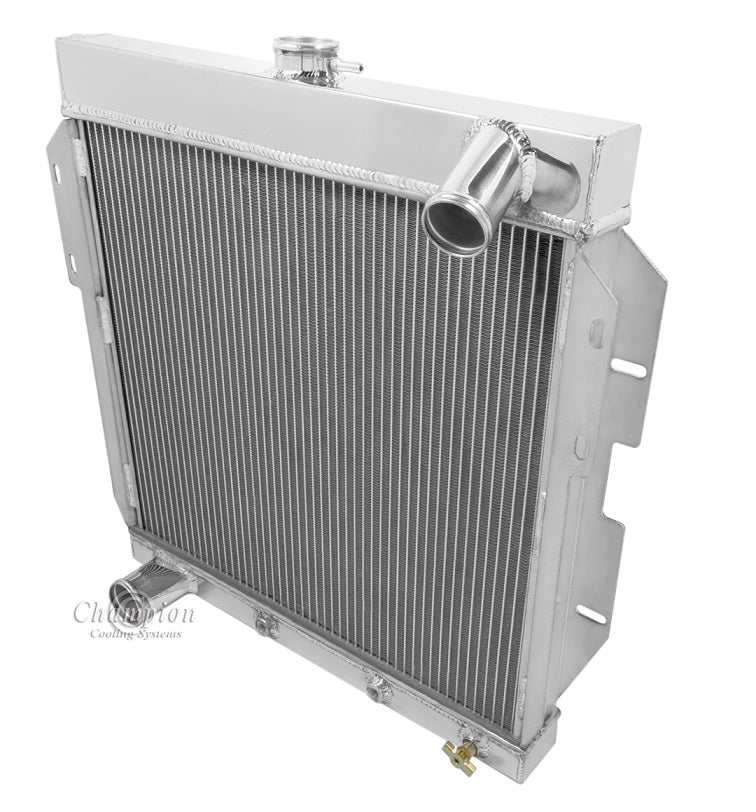

CC5557-5557FS16C 3 Row Combo

All Aluminum Champion Radiator PLUS

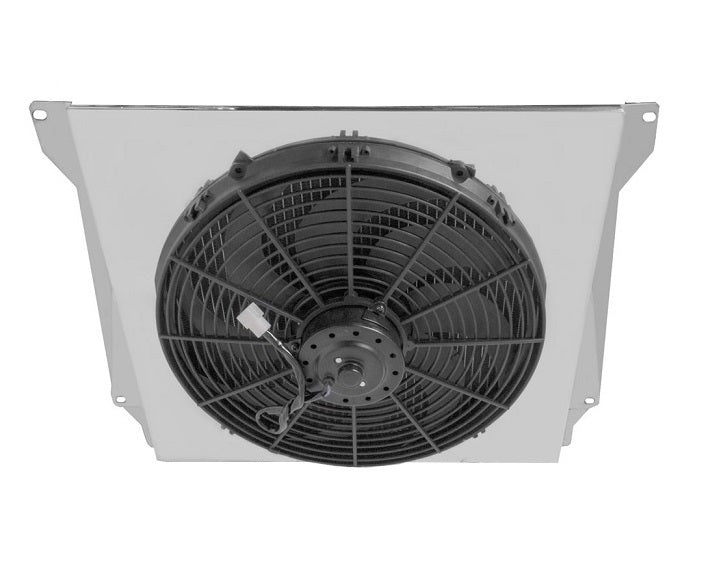

Shroud and 16" Pro-Series Fan
3-Row Core

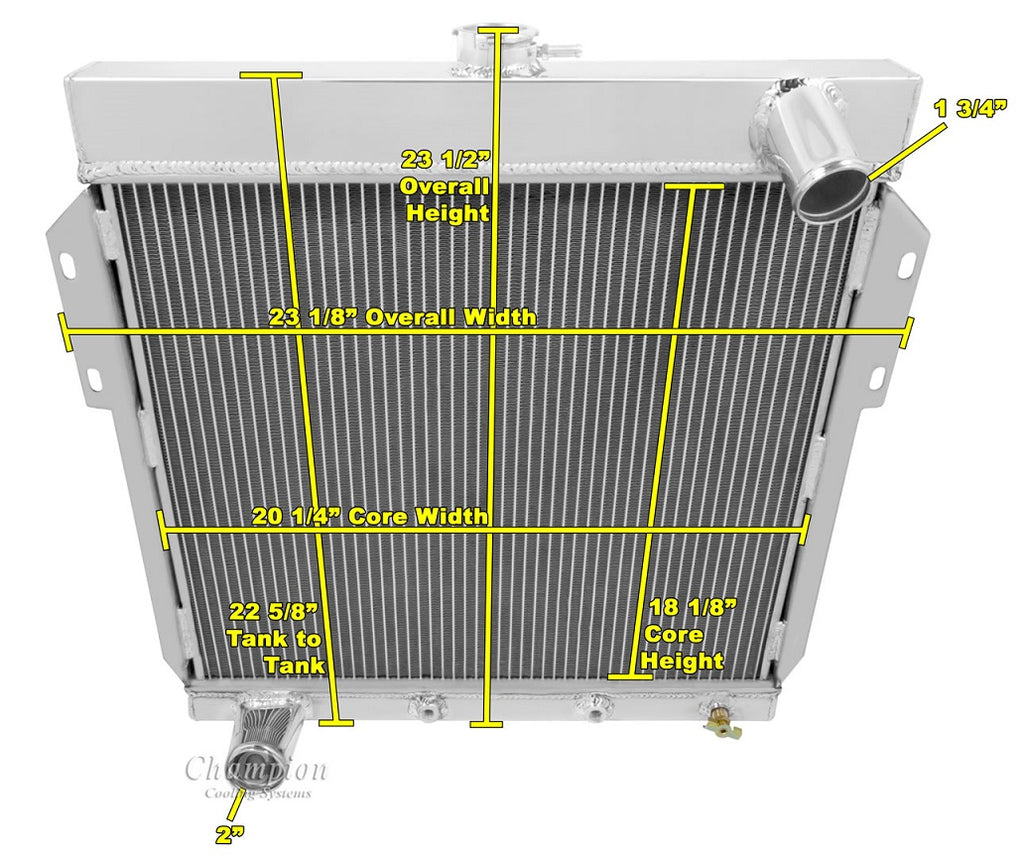

Radiator Dimensions:
Total: 23.5" tall (with cap) x 23.13" wide
Core: 18.13" tall x 20.25" wide x 2" thick
Inlet: 1.75" Passenger side
Outlet: 2" Drivers side
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27npt)
