CC5556 3 Row

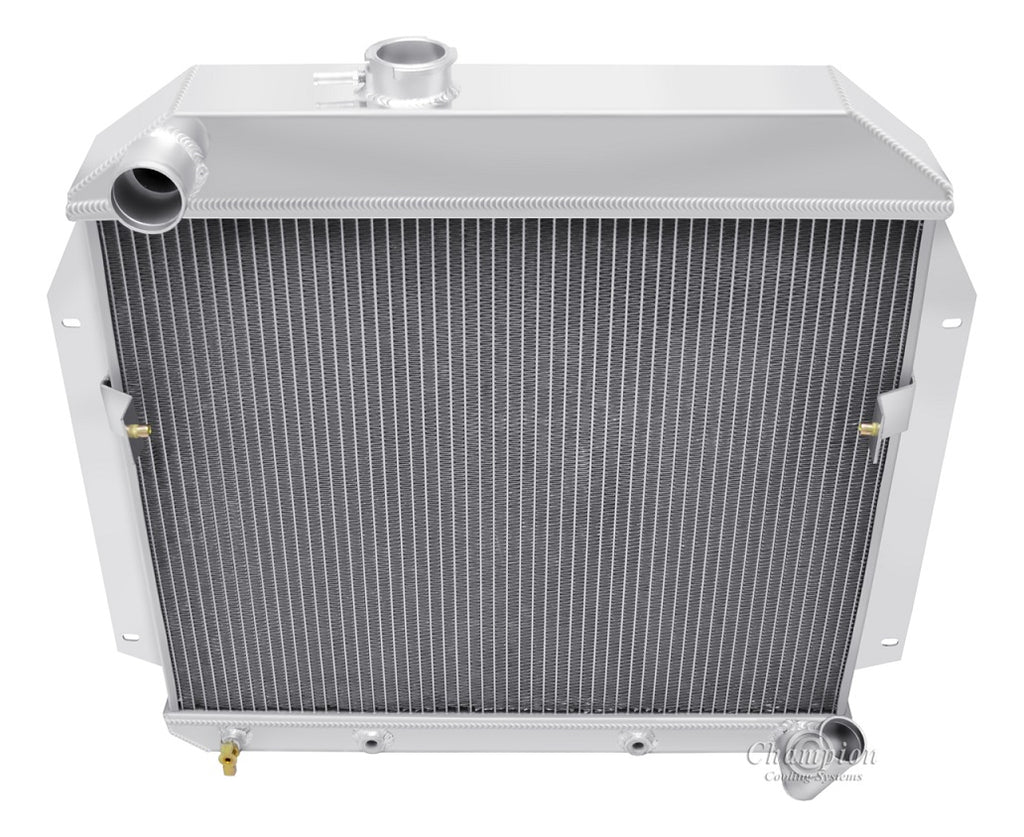

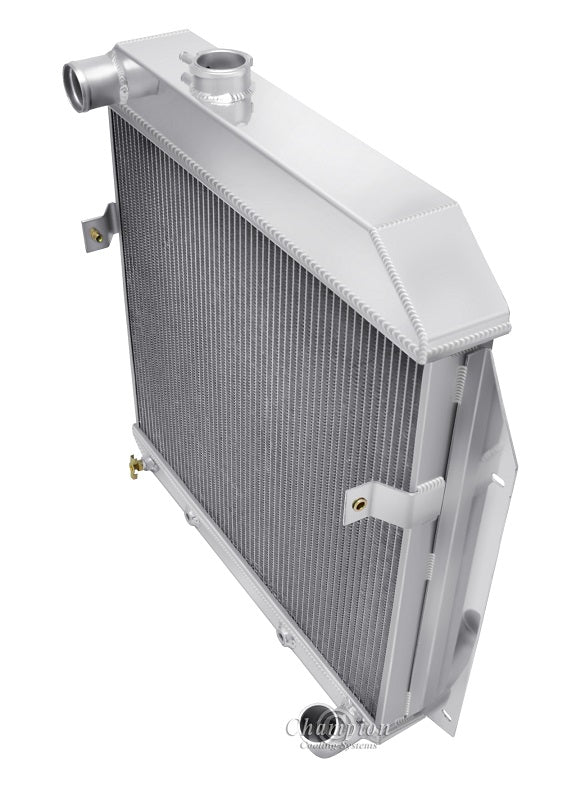

Champion All Aluminum Radiator
3-Row Core | Cools up to 550hp

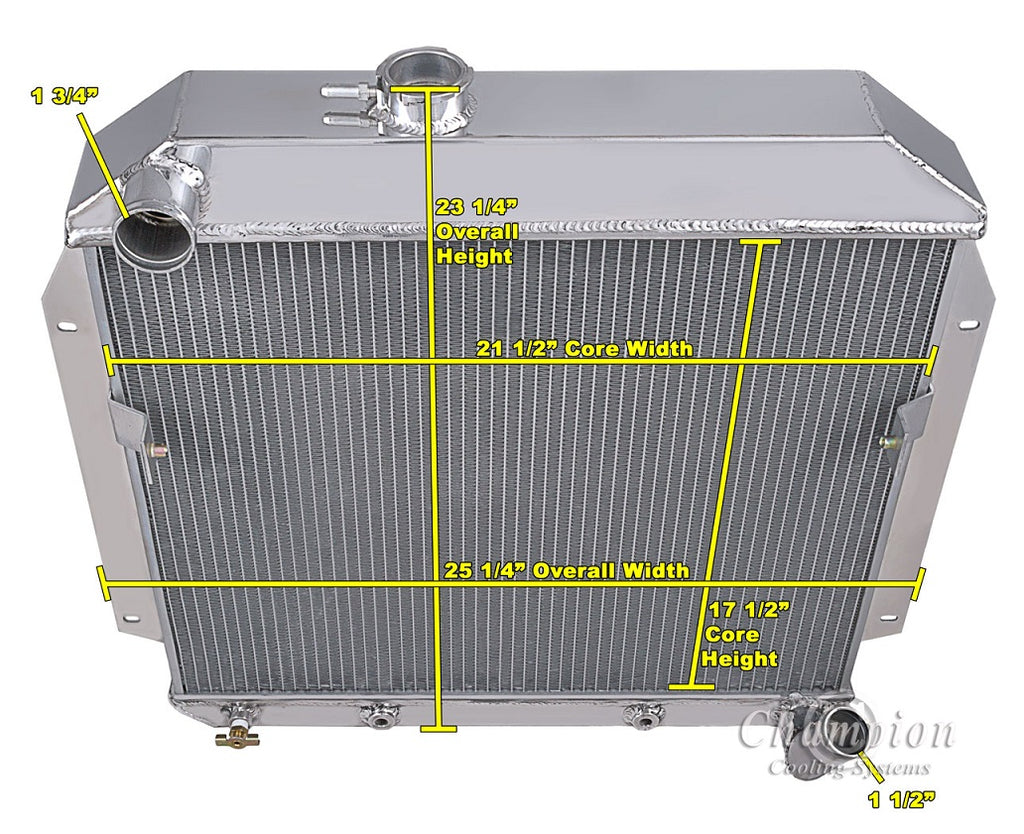

C5556 Radiator Dimensions:
Total: 23.25" tall (Incl Cap) x 25.25" wide (Including Brackets)
Core: 17.5" tall x 21.5" wide x 2" thick
Inlet: 1.75" Driver Side
Outlet: 1.5" Passenger Side
Tanks: 2.75" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/8 NPT)
