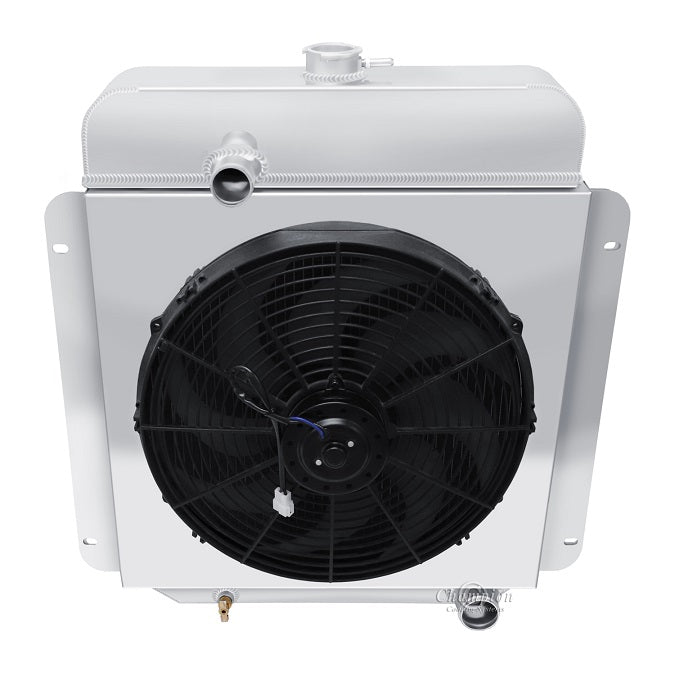

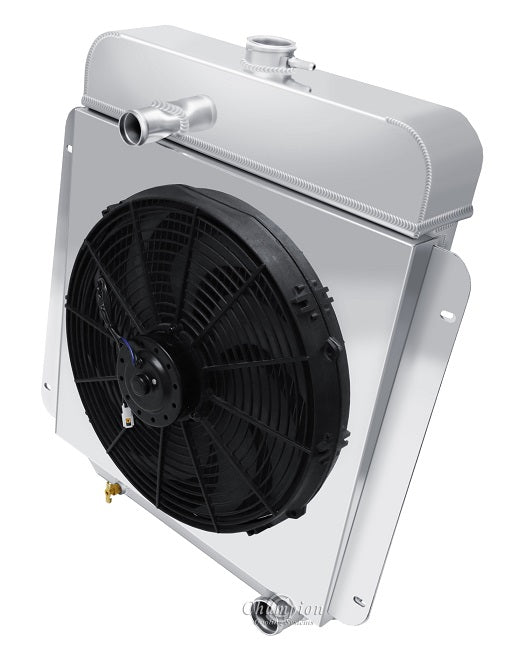

CC5456-6-5456-6FS16C 3 Row Combo for L6's

Champion Cooling Aluminum Radiator PLUS
Aluminum Shroud and 16" Pro-Series Fan
3 Row Core | Cools up to 600hp

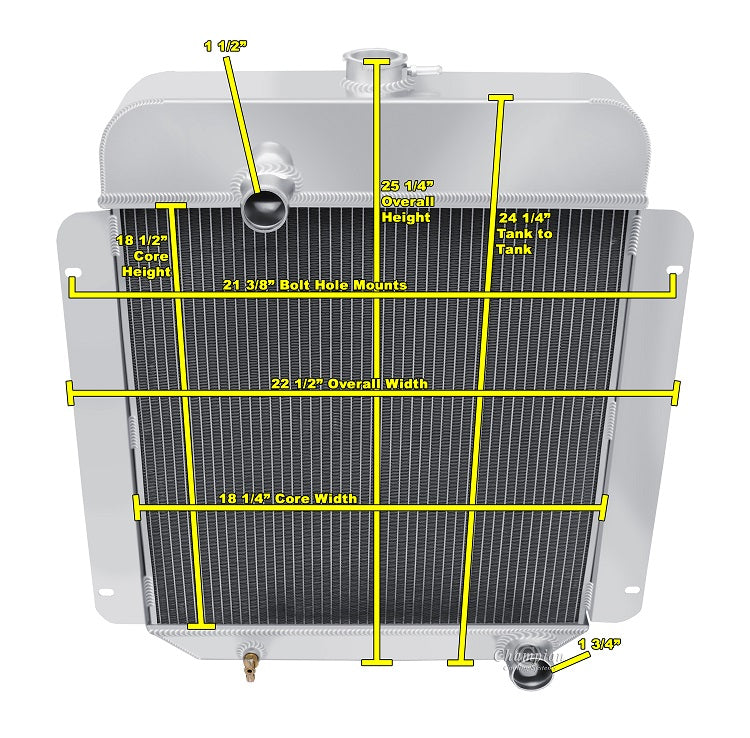

Radiator Dimensions:
Total: 25.25" tall x 22.5" wide (with brackets)
Core: 18.5" tall x 18.25" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3.75" upper, 2.38" lower
Tubes: 0.68" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27 NPT)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
