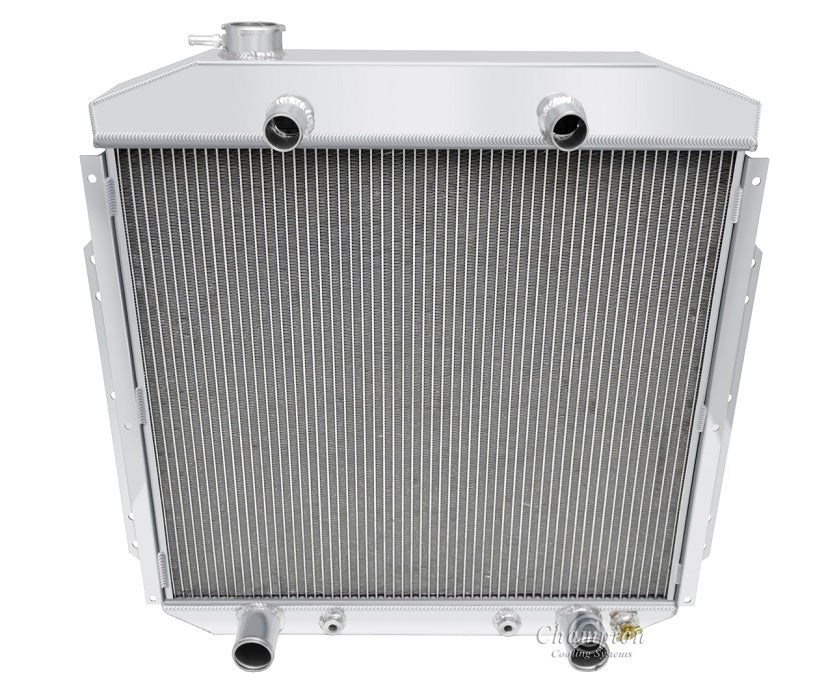

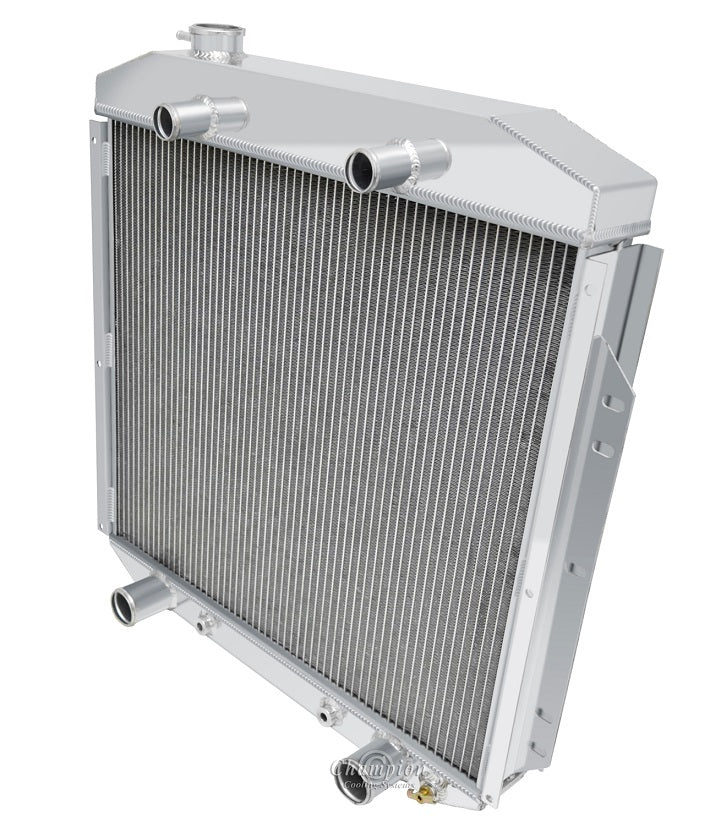

CC5356FH 3 Row Flat Head

All Aluminum Champion Radiator
3-Row Core | Cools up to 650hp
For a Ford Flat Head Engine
(Mods can be done if you need the 1.75" inlets)

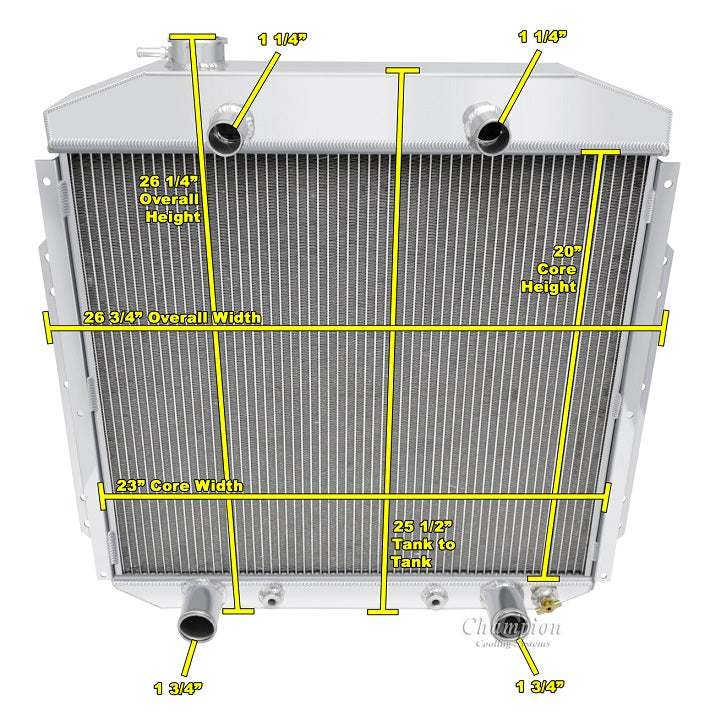

Radiator Dimensions:
Total: 26.25" tall (with cap) x 26.75" wide
Core: 20" tall x 23" wide x 2" thick
Inlets: 1.25"
Outlets: 1.75"
Tanks: 2.75" thick
Bracket Specs: Vert - 18 1/2" Hor - 24 7/8"
Tubes: 0.63" thick

Bracket Mounted

Transmission Cooler Included (1/8-27 NPT)
13 lb. Radiator Cap included
Aluminum shroud is also available (sold separately)

When using electric fans:
One 16" Electric fans recommended for this core size (sold separately)
