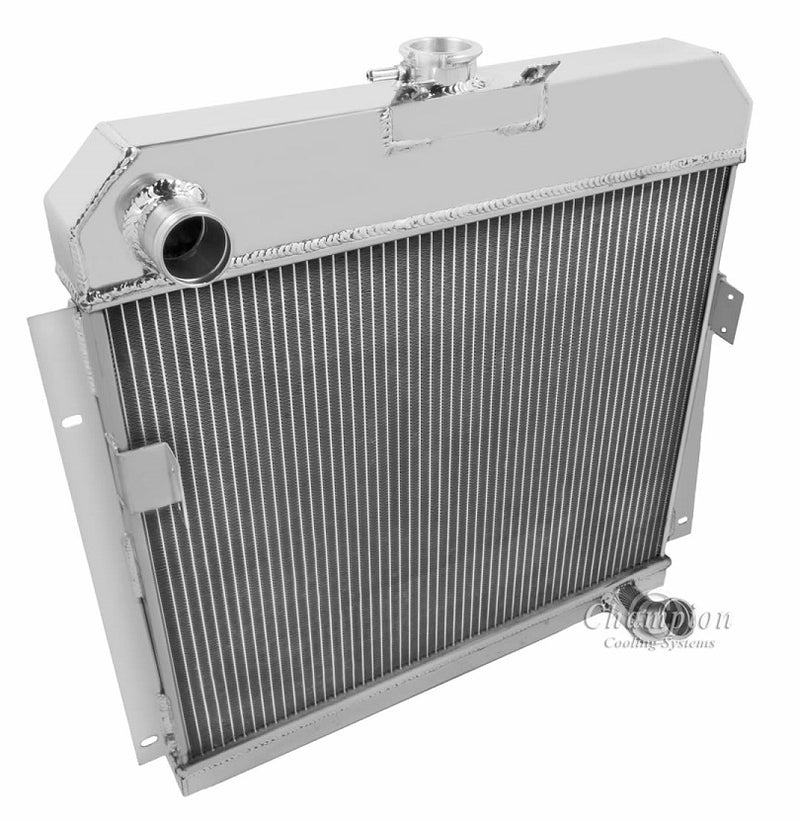

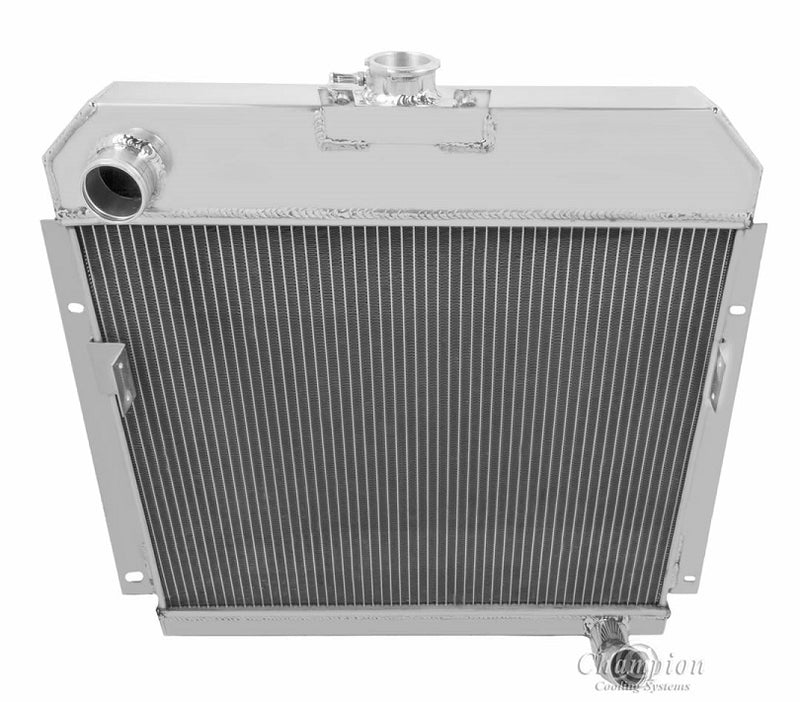

CC5354 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 500hp

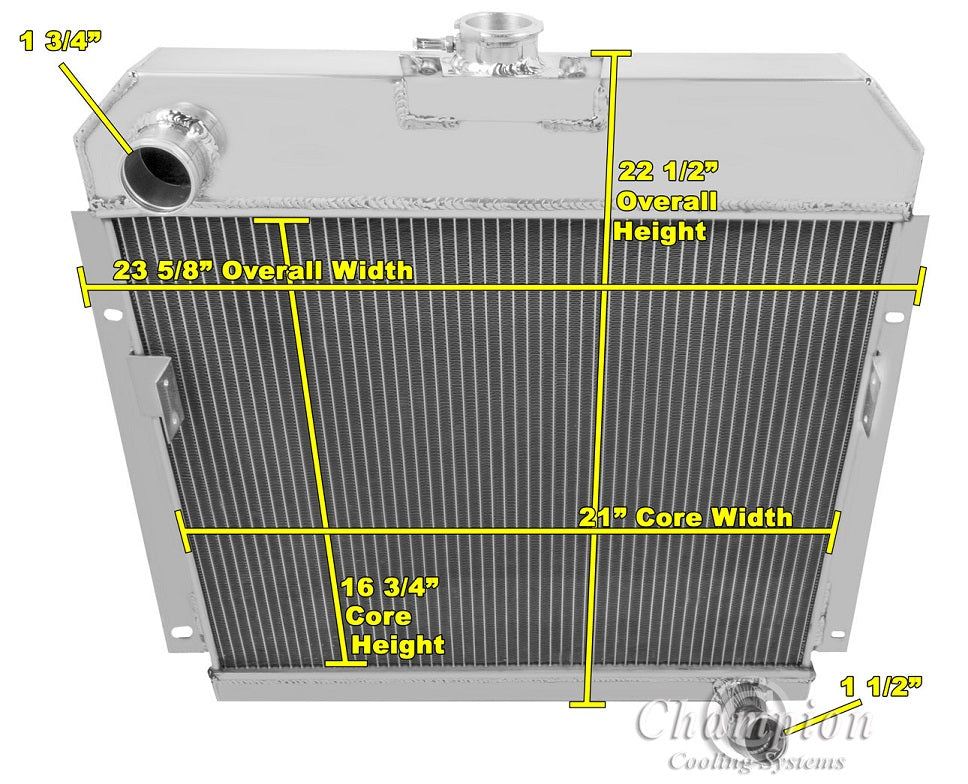

CC5354 Radiator Dimensions:
Total: 23" tall x 23.38" wide (including brackets)
Core: 16.75" tall x 20.75" wide x 2" thick
Inlet: 1.75" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
No Transmissions Cooler

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
