CC526B-BLK 3 Row Black

Use CC7072B if you have opposite hose configuration

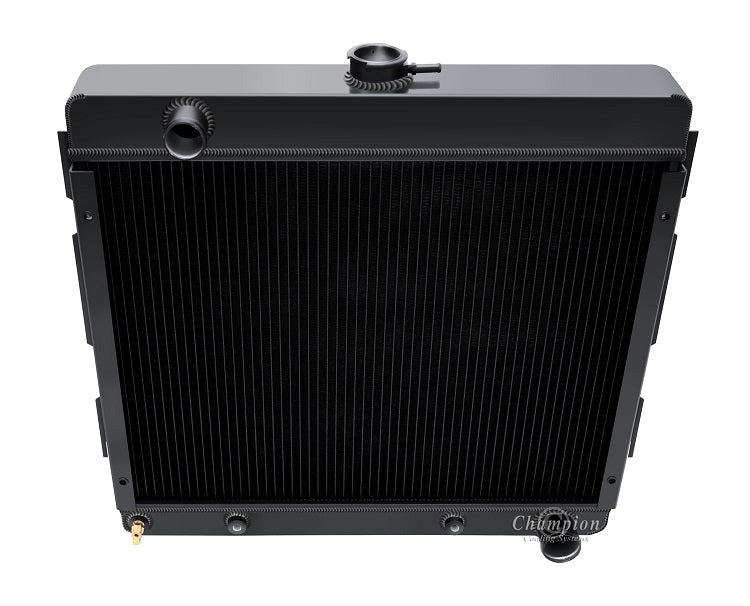

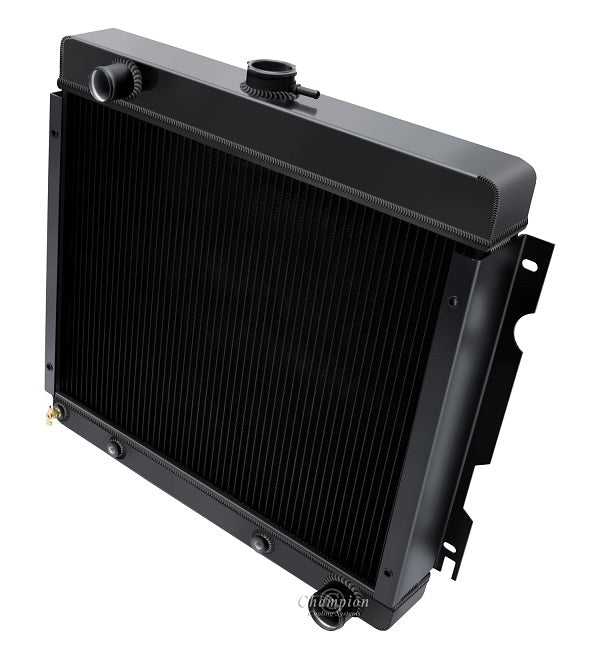

Champion All Aluminum Radiator (Black)
3-Row Core | Cools up to 600hp

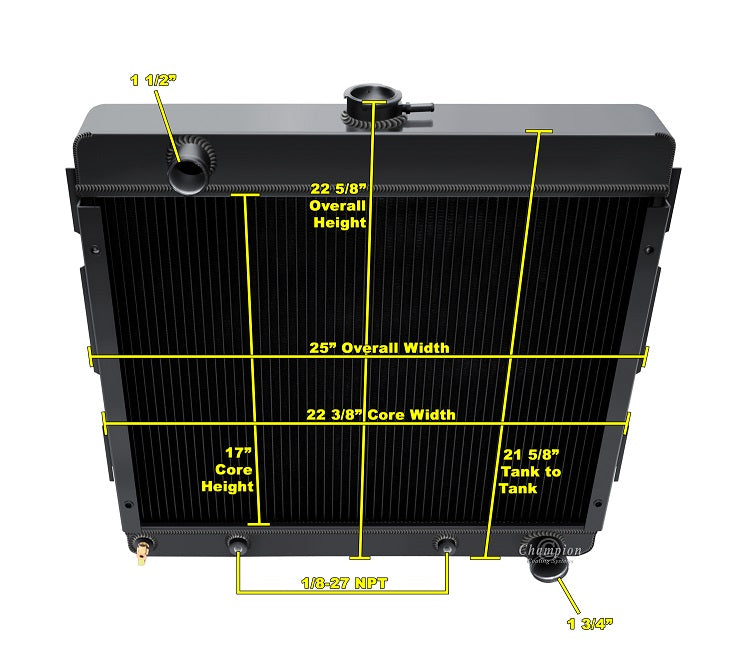

Radiator Dimensions:
Total: 22.88" tall x 25" wide (with brackets)
Core: 17" tall x 22.5" wide x 2.5" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick
Shroud Bracket Nut Inserts: 6MM-1

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
