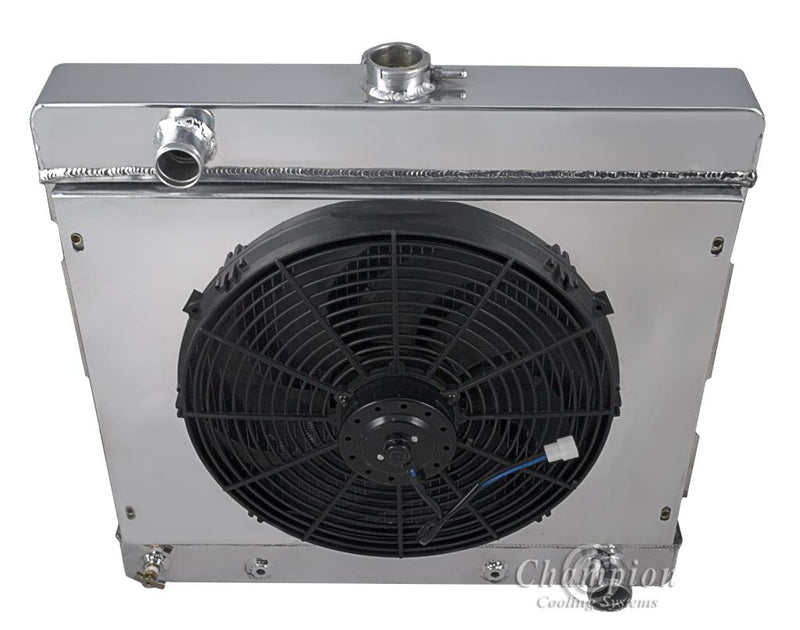

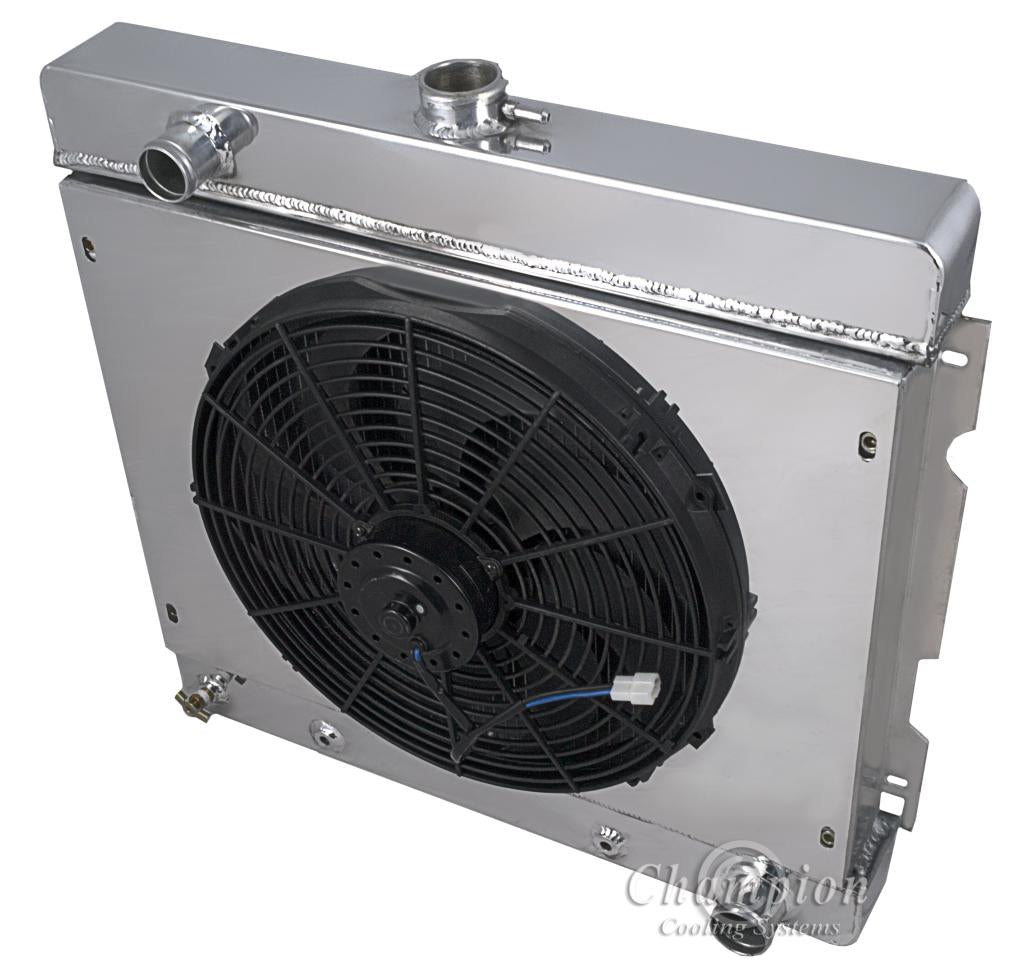

CC526B-526FS16CSP 3 Row Combo

Champion All Aluminum Radiator
Ledfoot Racing Shroud and SPAL 16" Medium Profile Fan
Verify clearance for electric fan
Total thickness: 6.25" to fan motor
3-Row Core | Cools up to 600hp

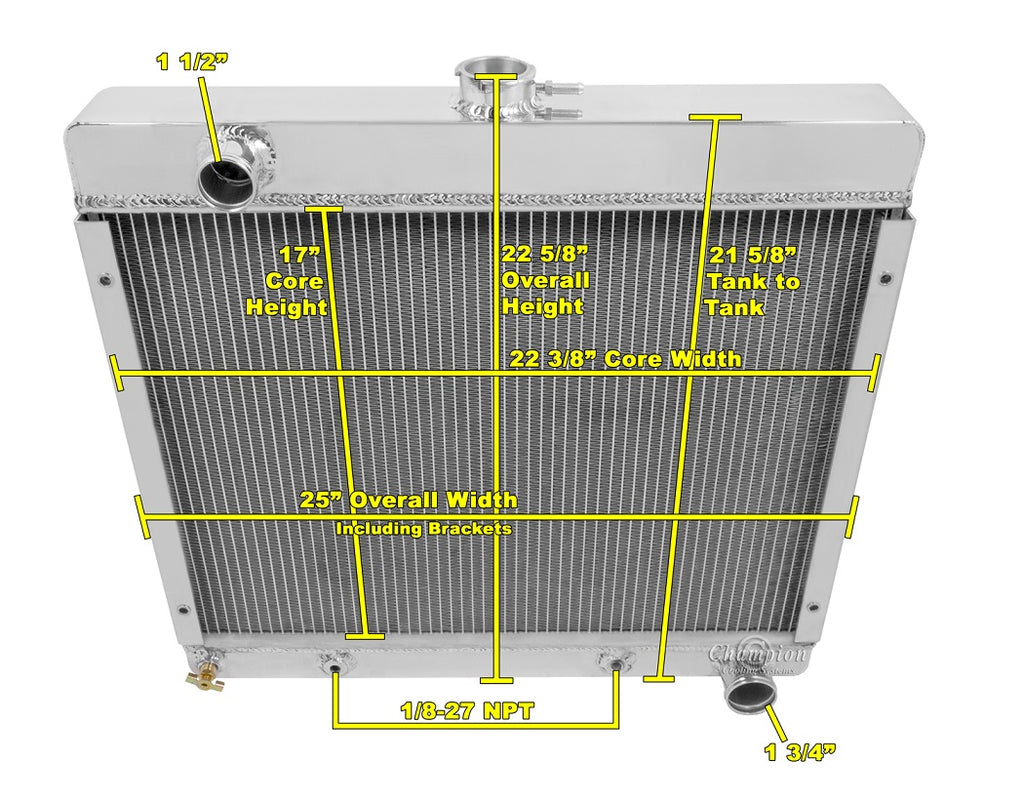

Radiator Dimensions:
Total: 22.88" tall x 25" wide (with brackets)
Core: 17" tall x 22.5" wide x 2.5" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick
Total Thickness: 6.25" to back of fan
Shroud Bracket Nut Inserts: 6MM-1

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included: (1/8-27NPT)
