CC526B-526FS10SP 3 Row Combo

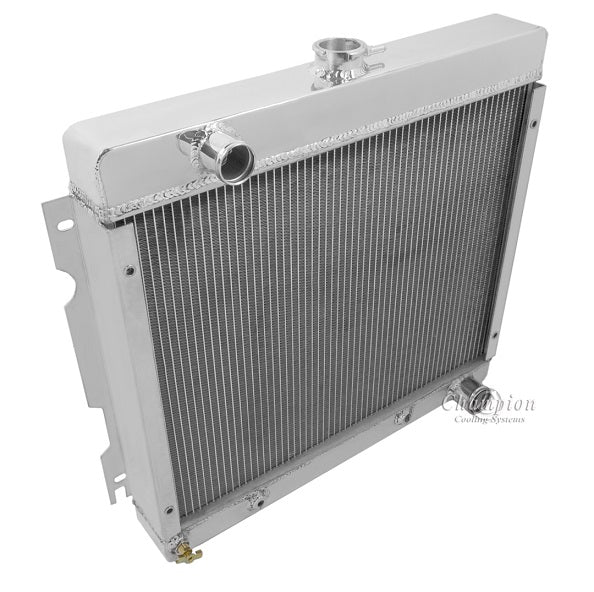

Champion All Aluminum Radiator

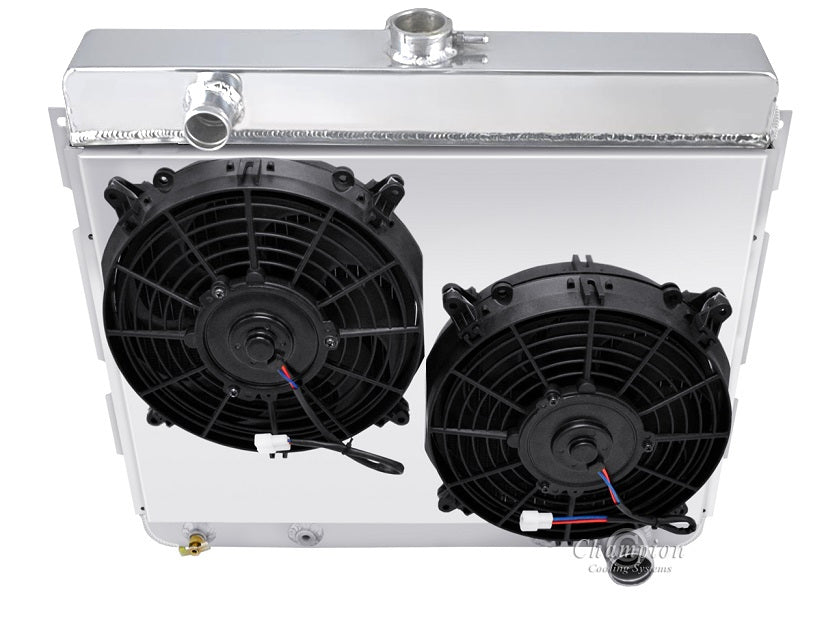

Ledfoot Racing Shroud and (2) 10" SPAL Electric Fans
Verify clearance for electric fans
3-Row Core | Cools up to 600hp

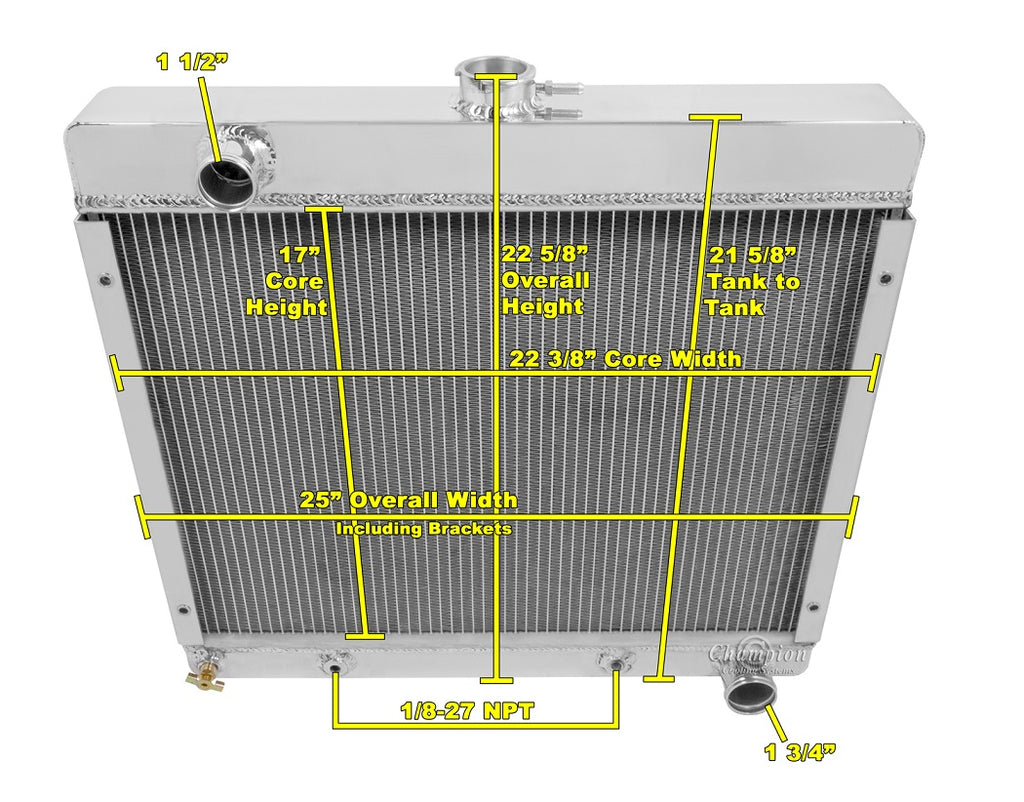

Radiator Dimensions:
Total: 22.88" tall x 25" wide (with brackets)
Core: 17" tall x 22.5" wide x 2.5" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick
Total Thickness: 6.25" to back of fans (5.25" between fans)
Shroud Bracket Nut Inserts: 6MM-1

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included: (1/8-27NPT)
