CC5241 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 400hp

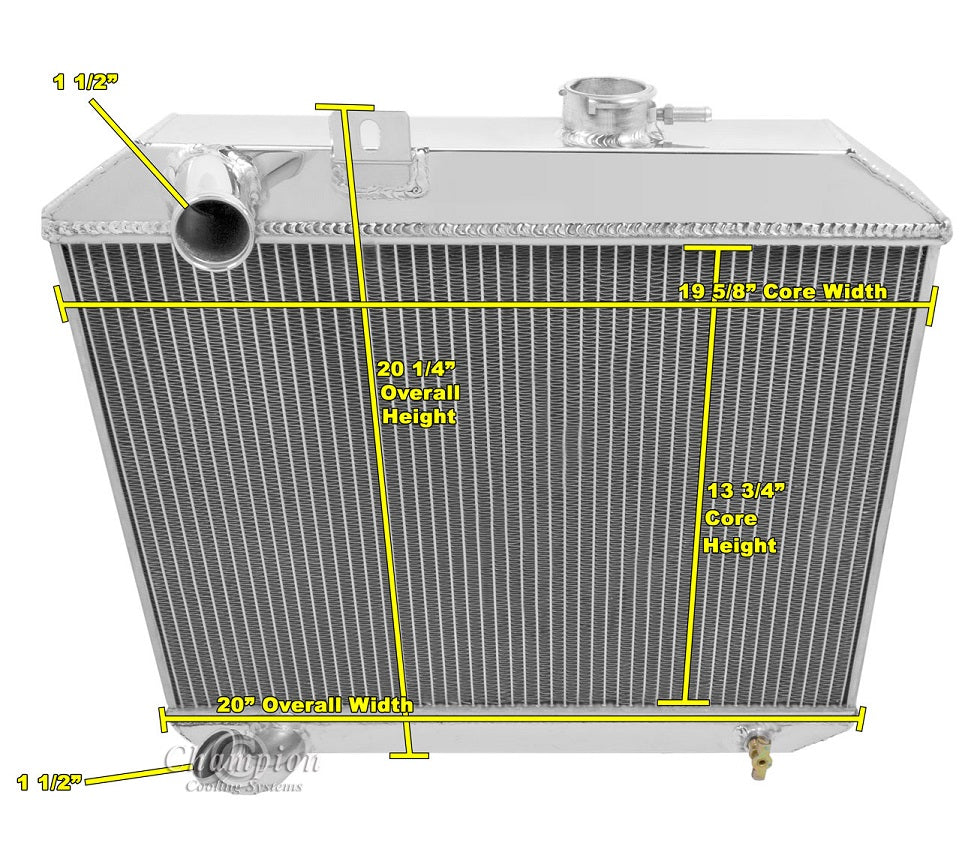

Radiator Dimensions:
Total: 18.875" tall (tank to cap) 20.25" with pins x 19.875" wide
Core: 13.75" tall x 19.75" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.5" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

Pin Mounted

13 lb. Radiator Cap included
