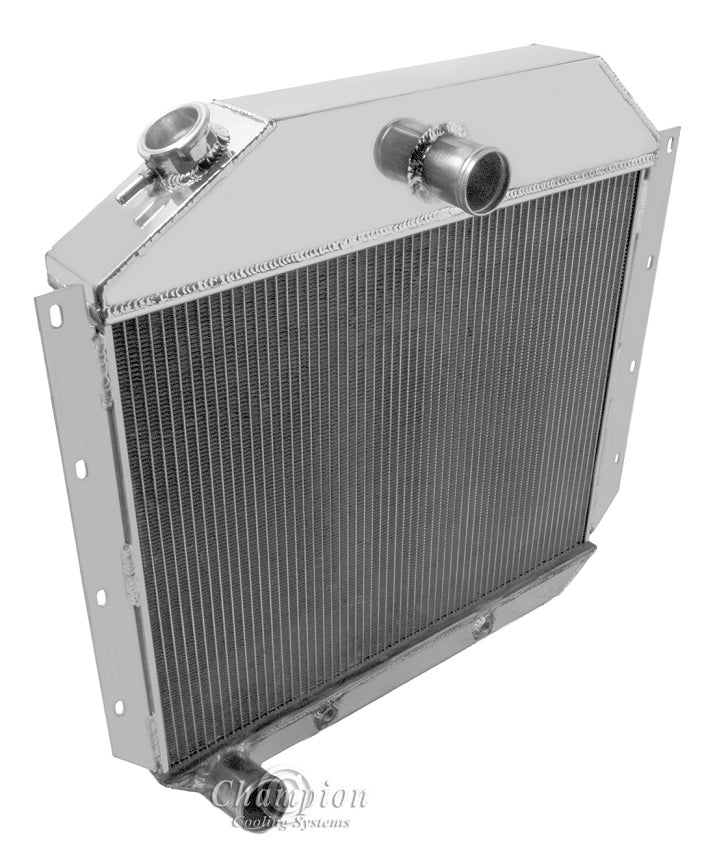

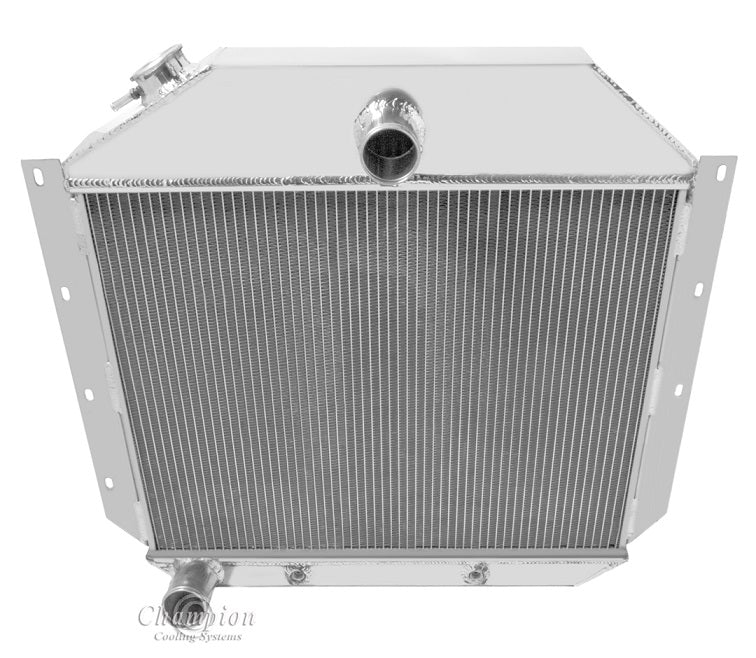

CC5157 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 600hp

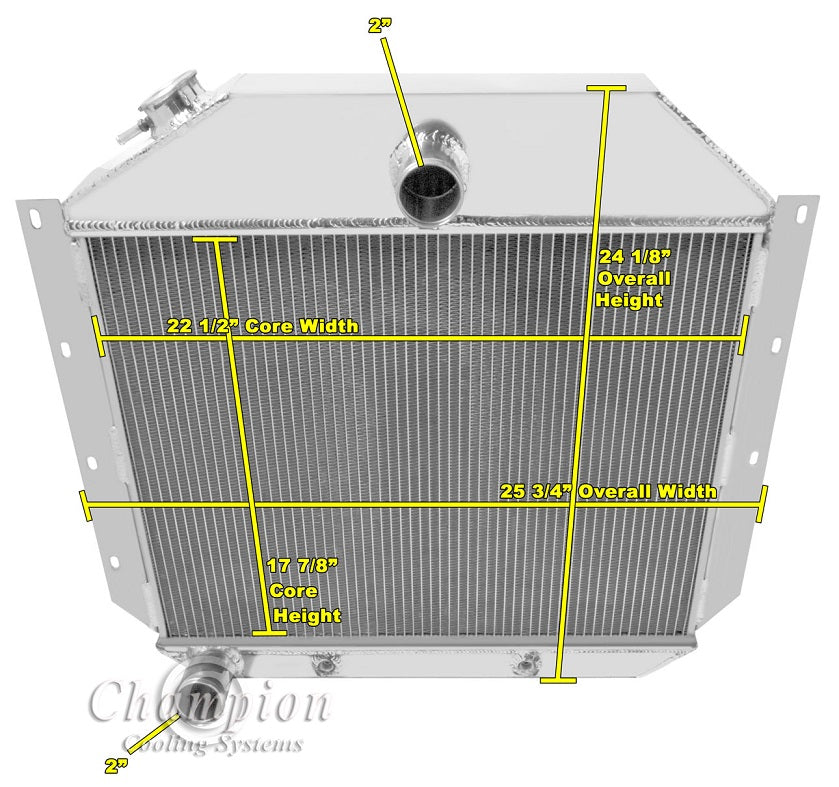

Radiator Dimensions:
Total: 24.25" tall x 25.75" wide (including brackets)
Core: 17.88" tall x 22.5" wide x 2.25" thick
Inlet: 2" center
Outlet: 2" Drivers side
Tanks: 3.13" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
