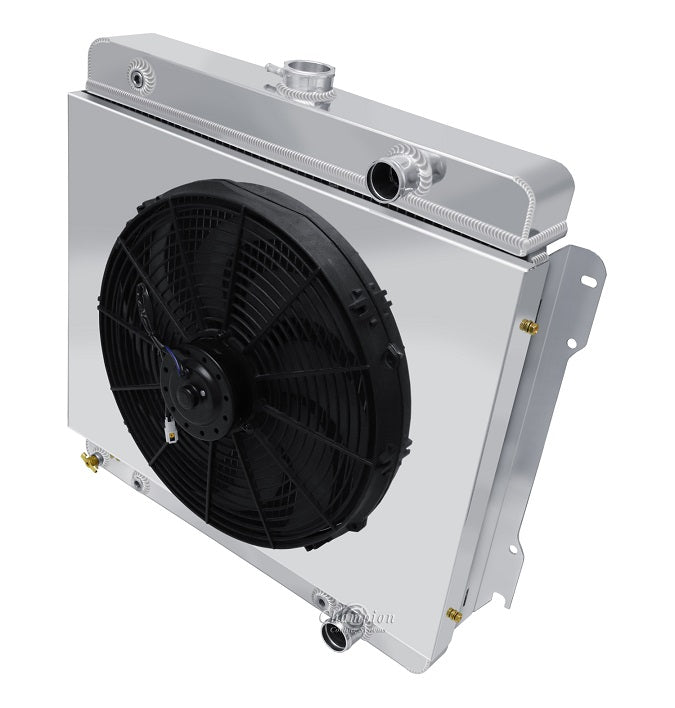

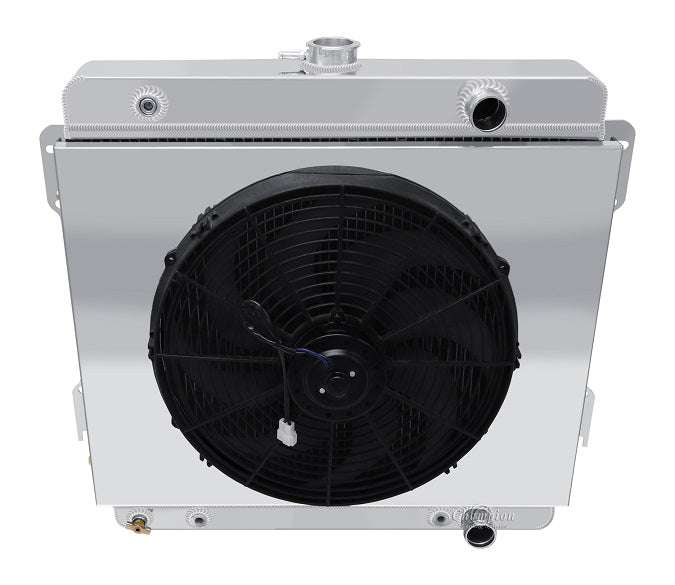

CC512-512FS16C 3 Row Combo

Champion All Aluminum Radiator PLUS
Aluminum Shroud and 16" Pro-Series Fan
3-Row Core | Cools up to 550hp

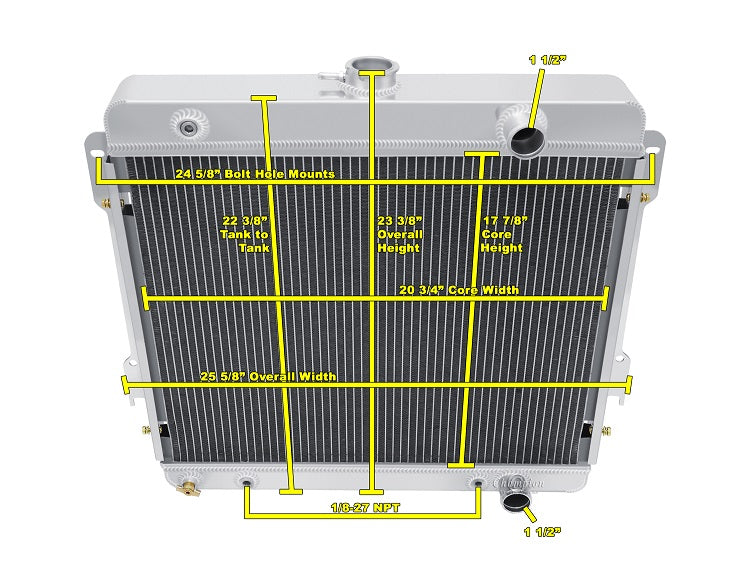

Radiator Dimensions:
Total: 23.38" tall x 25.63" wide (with brackets)
Core: 17.87" tall x 20.75" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.5" passenger side
Tanks: Top 3.13, Bottom 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
