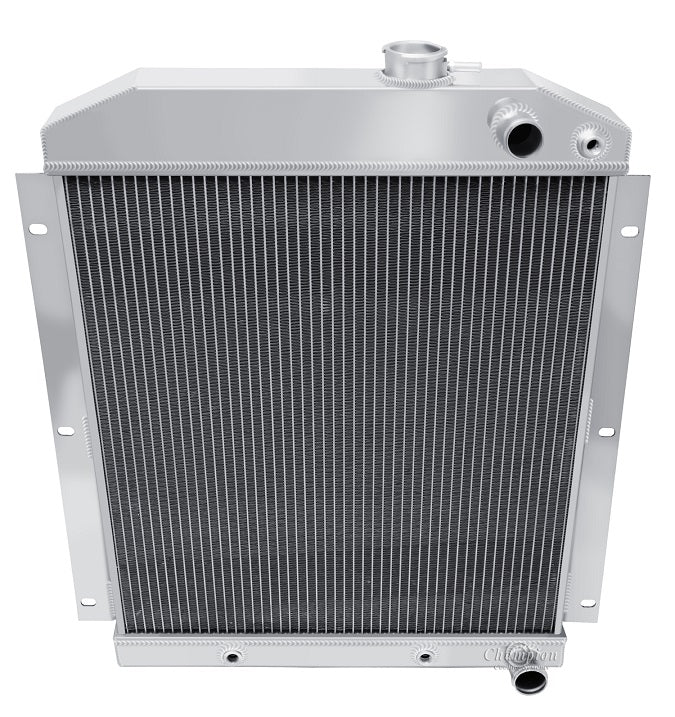

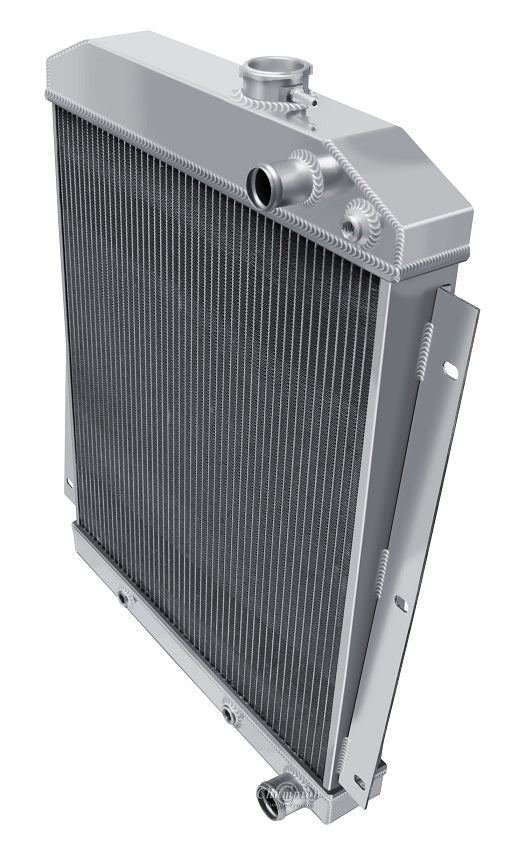

CC5100B-LS 3 Row for LS Conversion

Champion All Aluminum Radiator
For LS Conversion
3-Row Core | Cools up to 700hp

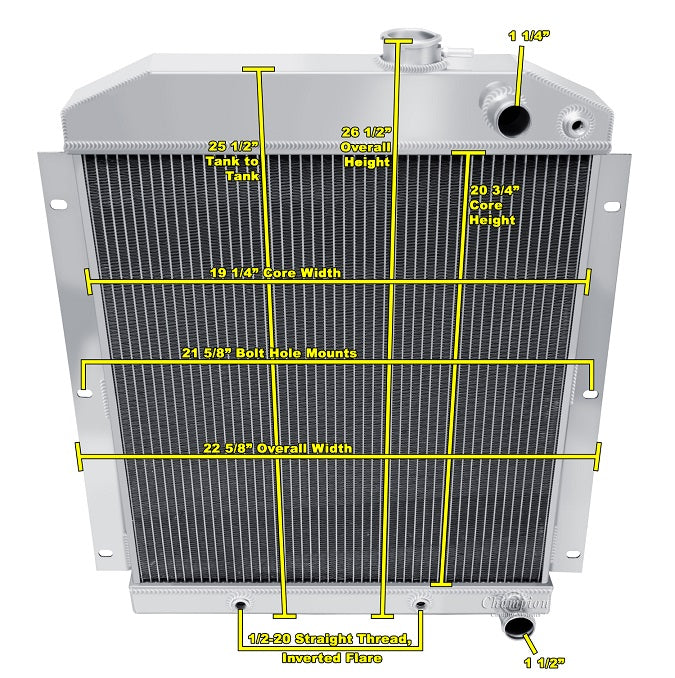

Radiator Dimensions:
Total: 26.75" tall x 23" wide (including brackets)
Core: 20.75" tall x 19.25" wide x 2.5" thick
Inlet 1.25" passenger side
Outlet: 1.5" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted

Steam Port Included W/ Barb fitting and plug
13 lb. Radiator Cap included
Transmission Cooler included (1/2" -20 straight thread)
Aluminum Shroud is also Available (sold separately)

When using electric fans:
One 16" Electric fan recommended for this core size
