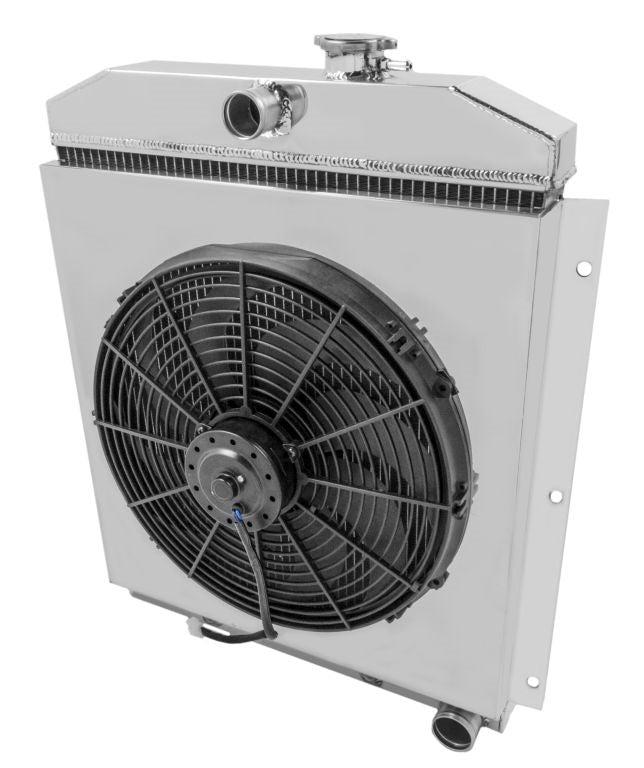

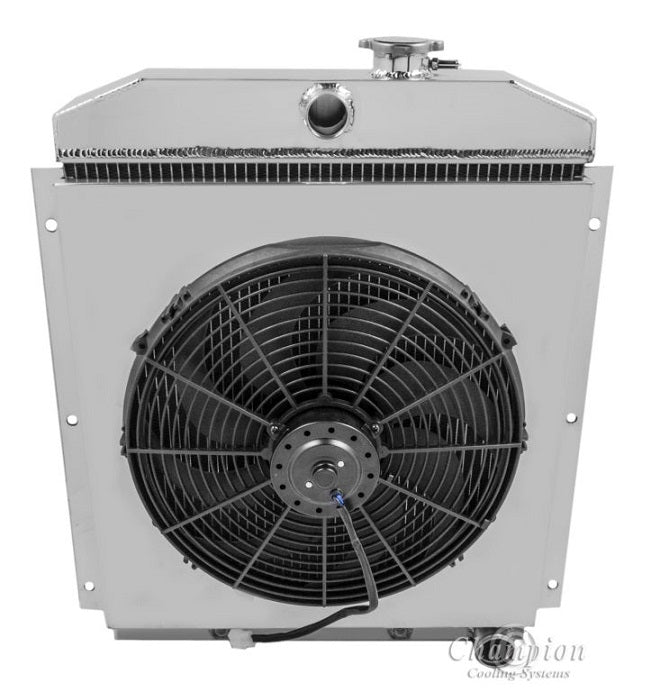

CC5100B-5100FS16 3 Row Combo

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" fan
Verify clearance for electric fan (3.5" thick)
Total thickness: 6.75" to fan motor
3-Row Core | 700hp Rating

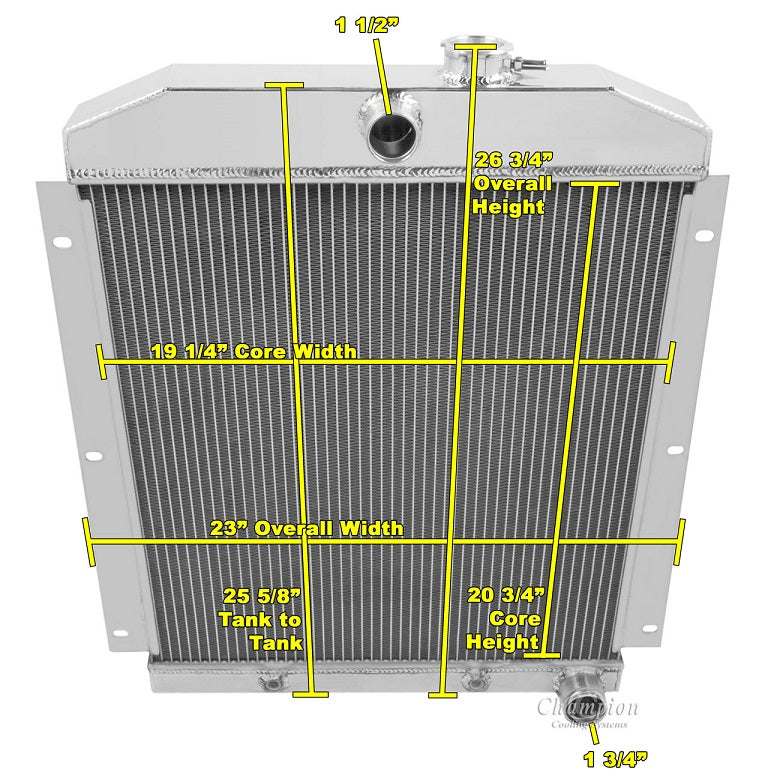

Radiator Dimensions:
Total: 25.5" tall (26.5" with cap) x 22.75" wide (including brackets)
Core: 20.75" tall x 19.5" wide x 2.5" thick
Inlet 1.5" center
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted

13 lb. radiator cap included
Transmission Cooler included (1/2"- 20 straight thread)
