CC5049B 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp

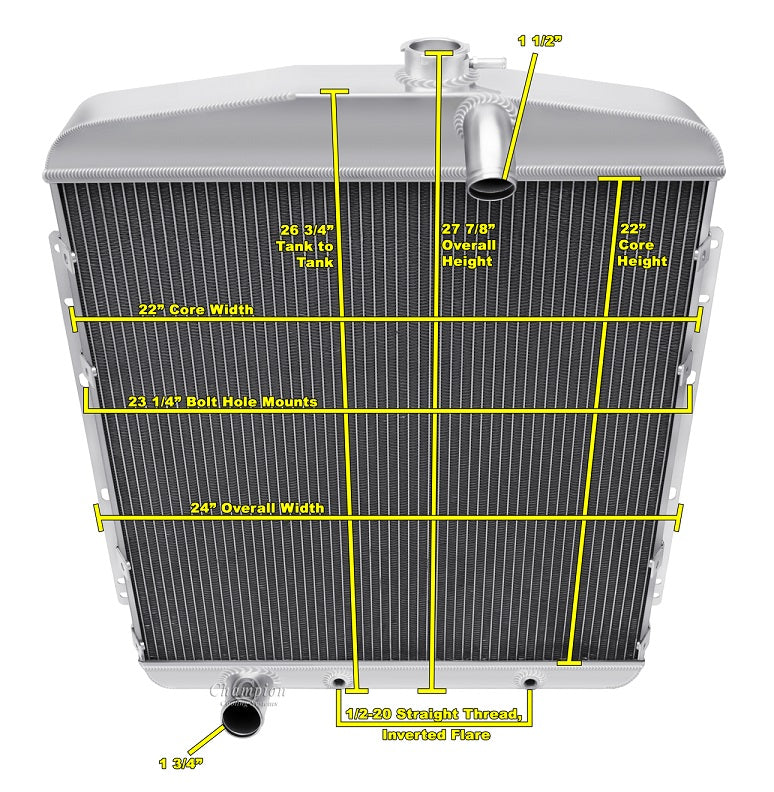

Radiator Dimensions:
Total: 27.83" tall x 24" (including brackets)
Core: 22" tall x 22" wide x 2.5" thick
Inlet: 1.5" center
Outlet: 1.75" driver side
Tanks: 3" thick
Tubes: 0.75" thick

Bracket Mounted
Direct Fit Replacement

13 lb. Radiator Cap included
Transmission Cooler included (1/2"- 20 straight thread)

When using electric fans:
One 16" recommended for this core size (sold separately)
