CC50 3 Row

Confirm Core Height Before Purchasing
Shorter Versions Were Availble From factory

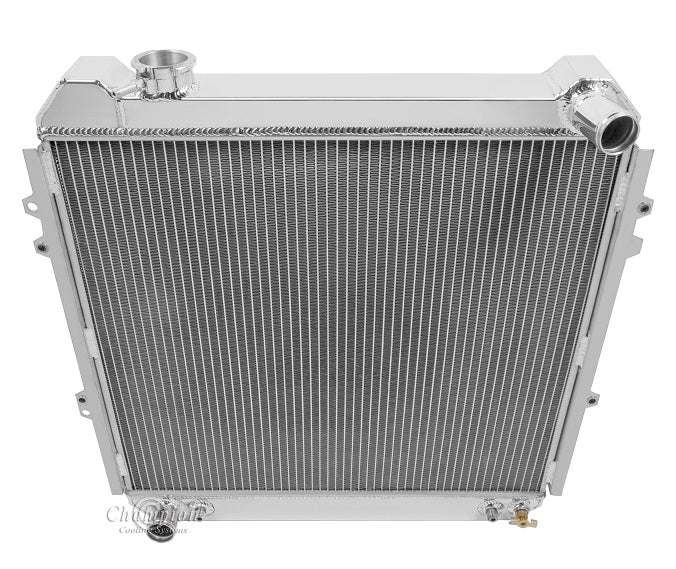

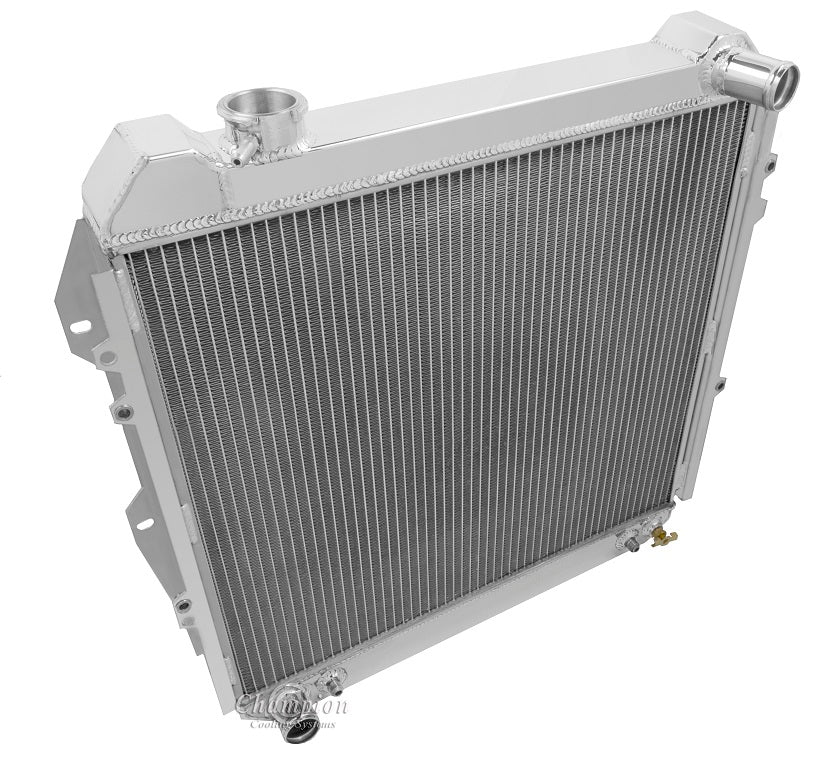

Champion All Aluminum Radiator
3-Row Core | Cools up to 550hp

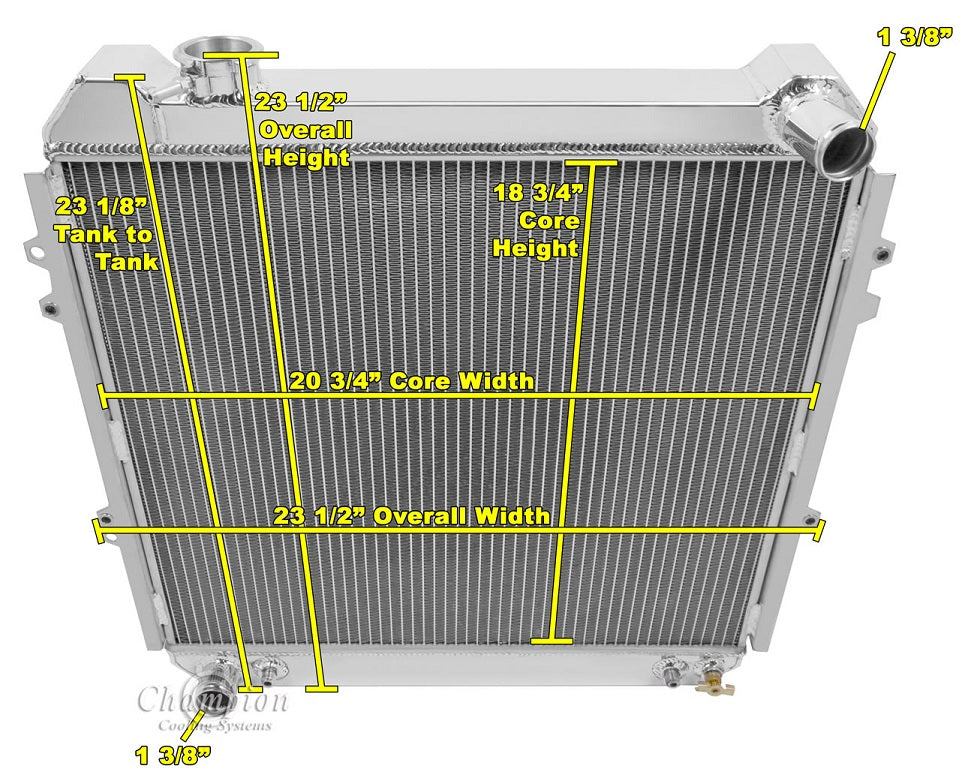

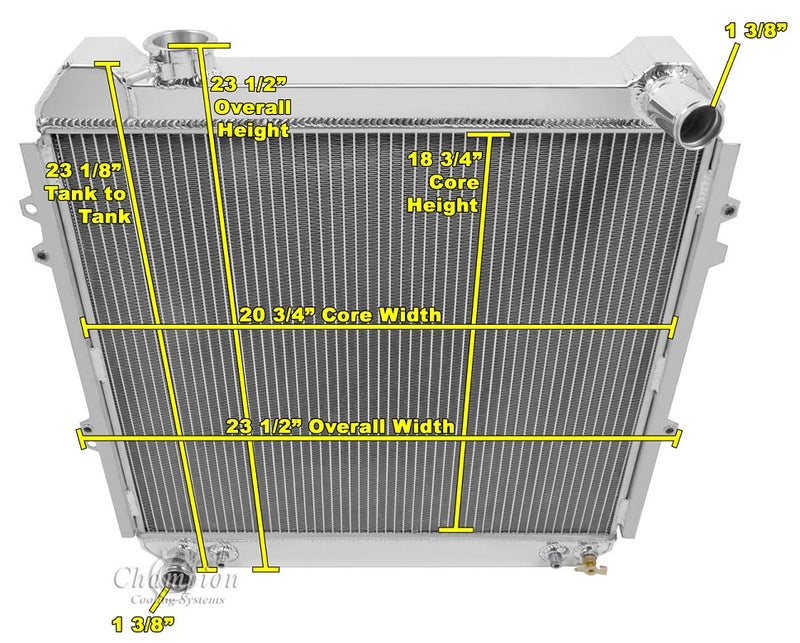

Radiator Dimensions:
Total: 23.5" tall x 23.5" wide (including brackets)
Core: 18.75" tall x 20.75" wide x 2" thick
Inlet: 1.38" passenger
Outlet: 1.38” driver
Tanks: 2.38" thick
Tubes: 0.68" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (M14-1.5)

When using electric fans (sold separately):
One 16" Electric fan recommended for this core size
