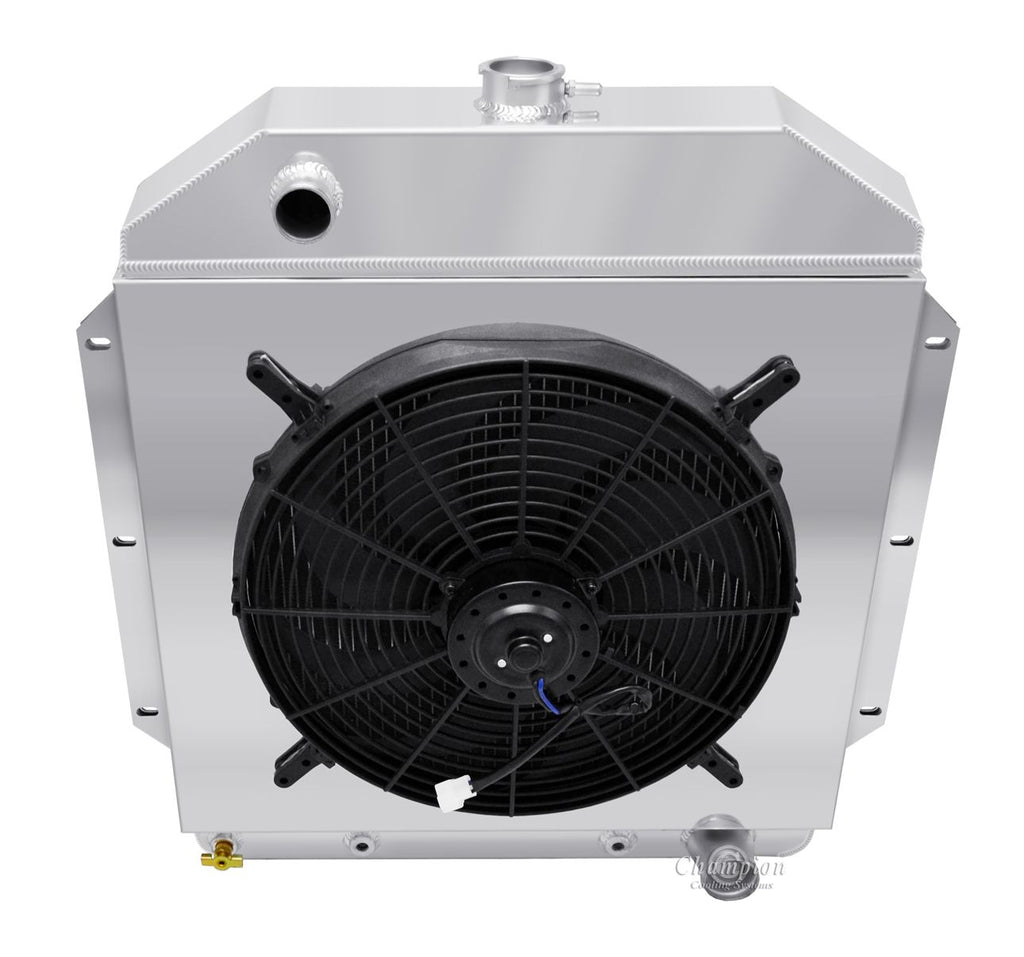

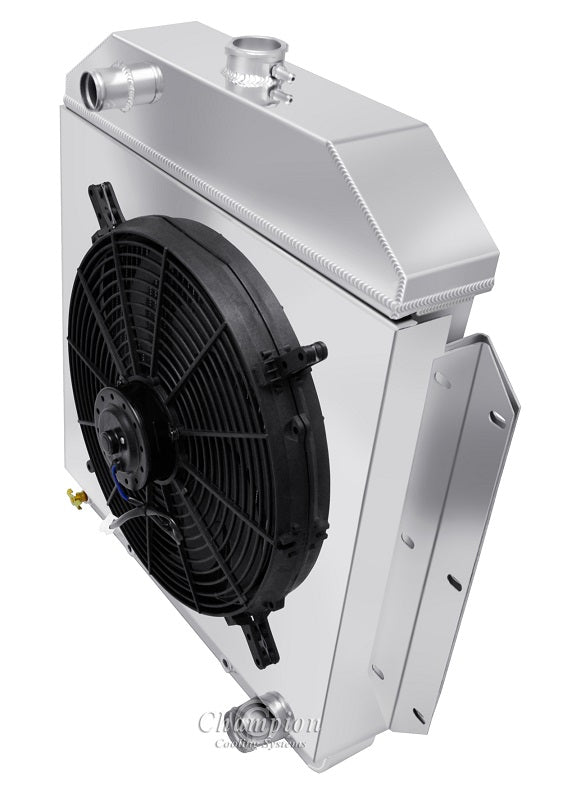

CC49CH-49FS16 3 Row Combo Chevy Engines

All Aluminum Champion Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan
Total thickness: 6.75" to fan motor
Chevy Engines Setup: Does not fit Ford 6 Cyl
3-Row Core | Cools up to 600hp

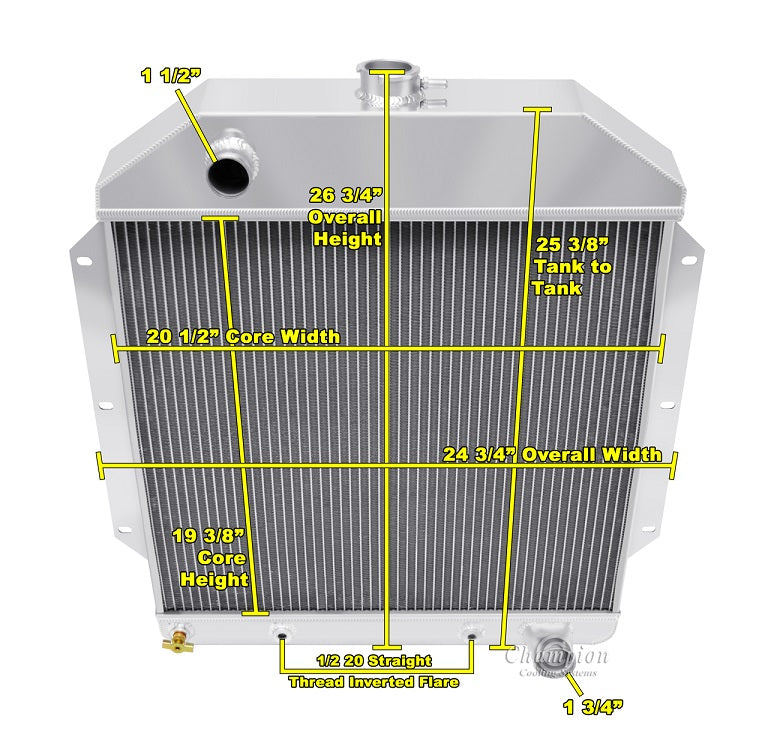

Radiator Dimensions:
Total: 26.63" tall x 24.75" wide
Core: 19.38" tall x 20.5" wide x 2" thick
Inlet: 1.5" driver
Outlet: 1.75" passenger side
Tanks: 3.88" thick
Tubes: 0.63" thick

13 lb. Radiator Cap included
Transmission Cooler Included (1/2" 20 straight thread)
