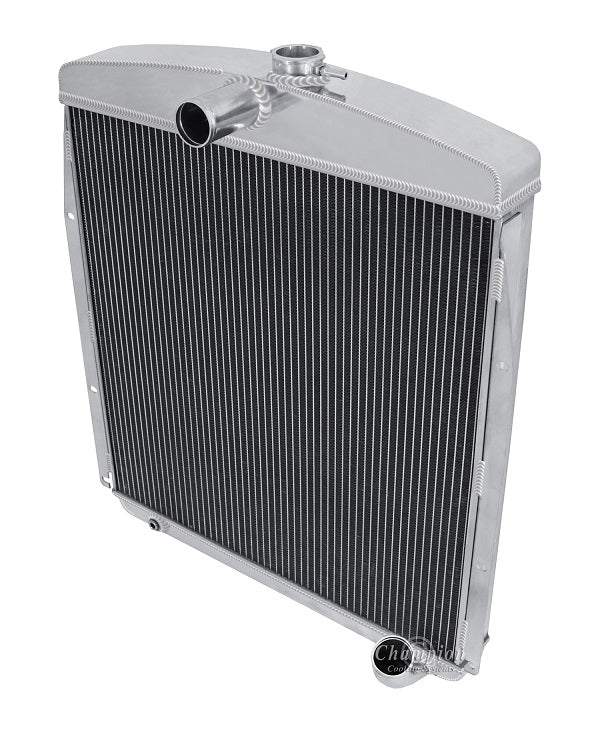

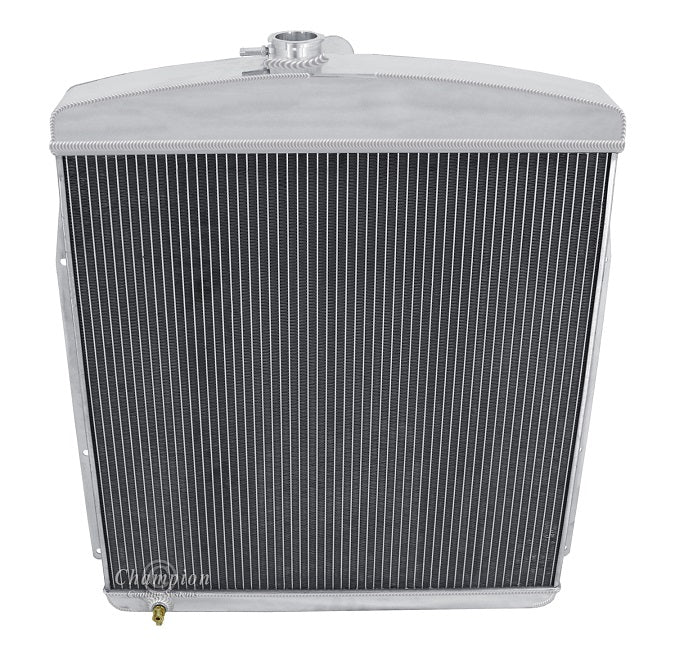

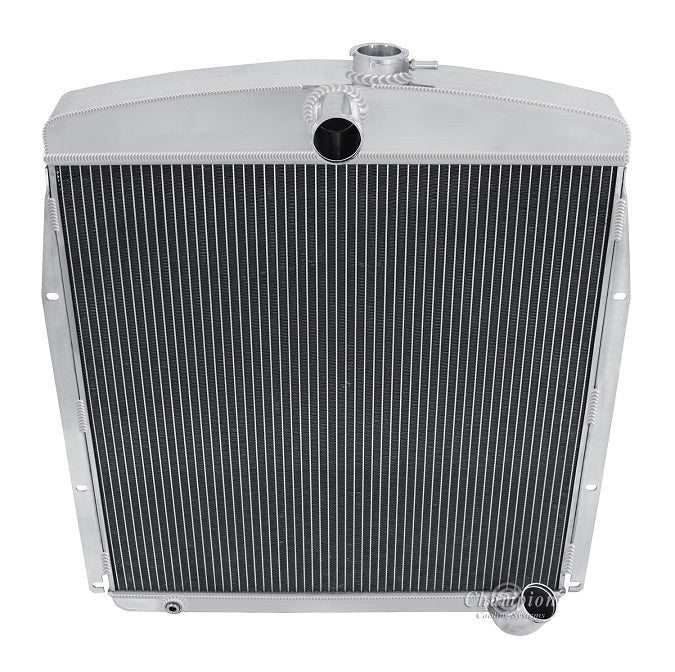

CC49B-PO 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 700hp

CC49B-PO Radiator Dimensions:
Total: 27.87" tall (Incl Cap) x 24.13" wide (Including Brackets)
Core: 22" tall x 22" wide x 2.5" thick
Inlet: 1.75" center
Outlet: 1.75" passenger side
Tanks: Top 3.25" thick, Bottom 2" Thick
Tubes: 0.75" thick

Bracket Mounted (On Engine Face)

13 lb. Radiator Cap included
NO Transmission Cooler Included

note: Petcock on back side
