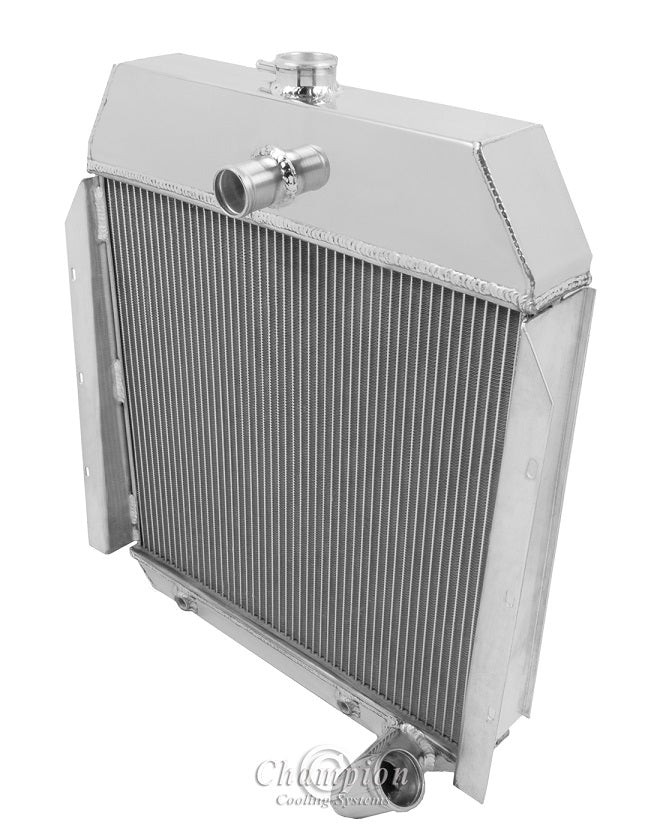

CC4960 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 500hp

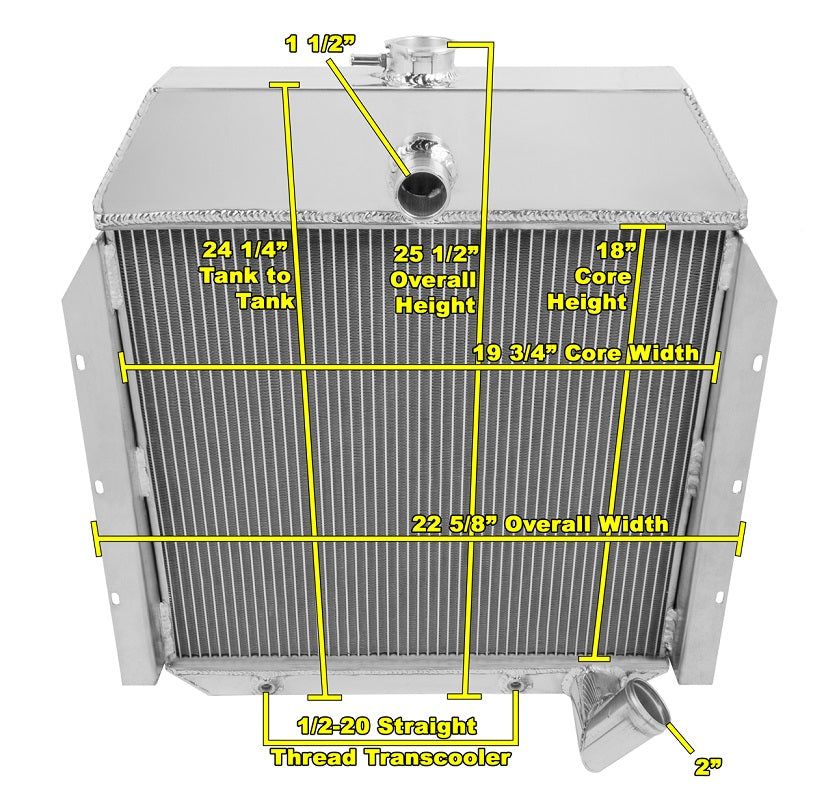

CC4960 Radiator Dimensions:
Total: 25.5" tall (incl cap) x 22.63" wide (including brackets)
Core: 18" tall x 19.5" wide x 2" thick
Inlet: 1.5" center
Outlet: 2" passenger side
Tanks: 3.25" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmissions Cooler included (1/2"-20 straight thread)
