CC4954B-LS-BLK 3 Row LS Conversion

Champion All Aluminum Radiator (Black)
For LS Conversions
3-Row Core | Cools up to 650hp

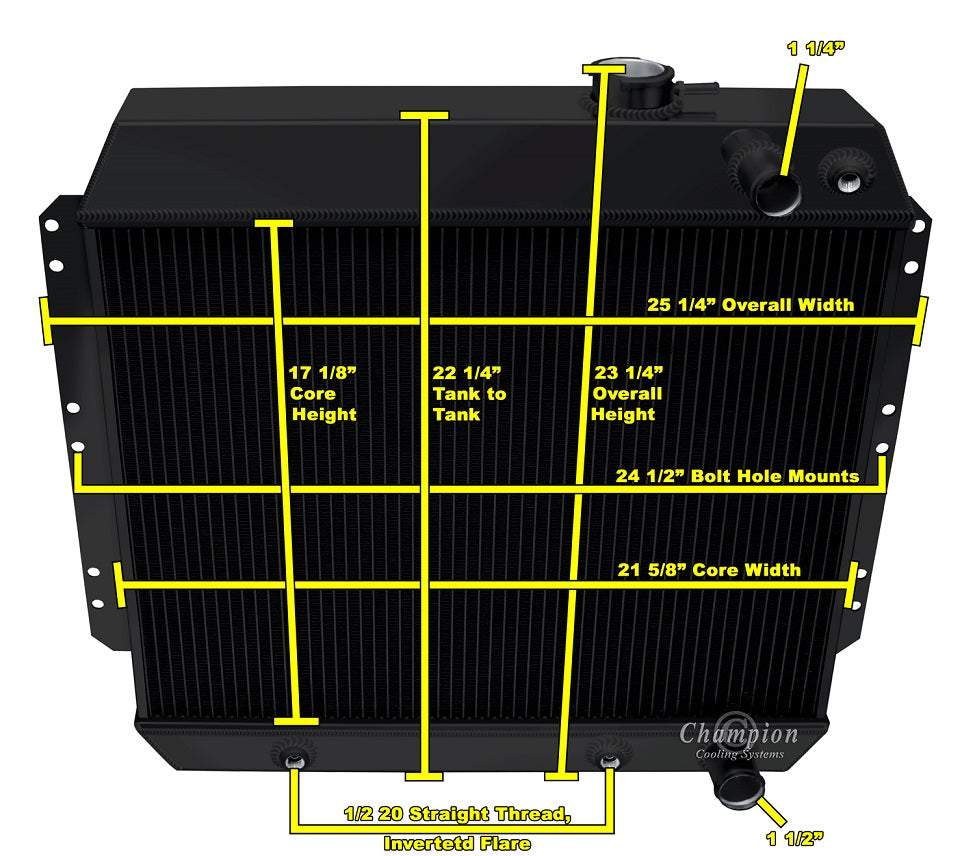

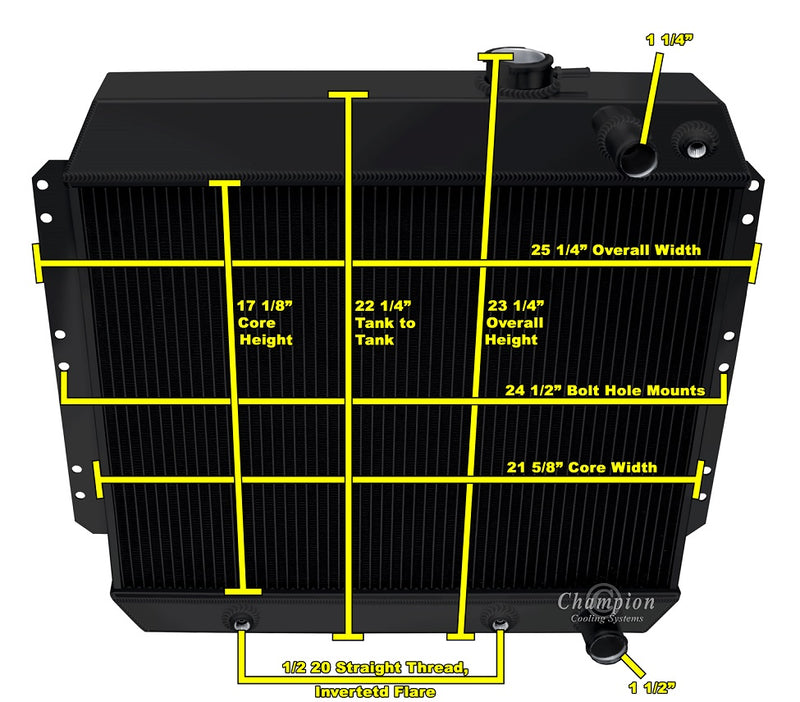

CC4954 Radiator Dimensions:
Total: 23.63" tall (Incl Cap) x 25.25" wide (Including Brackets)
Core: 17.13" tall x 21.75" wide x 2.5" thick
Inlet: 1.25" passenger side
Outlet: 1.5" passenger side
Tanks: 3" thick
Tubes: 0.75" thick

Bracket Mounted

Steam Port included w/ barb fitting and plug
13 lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 straight thread)

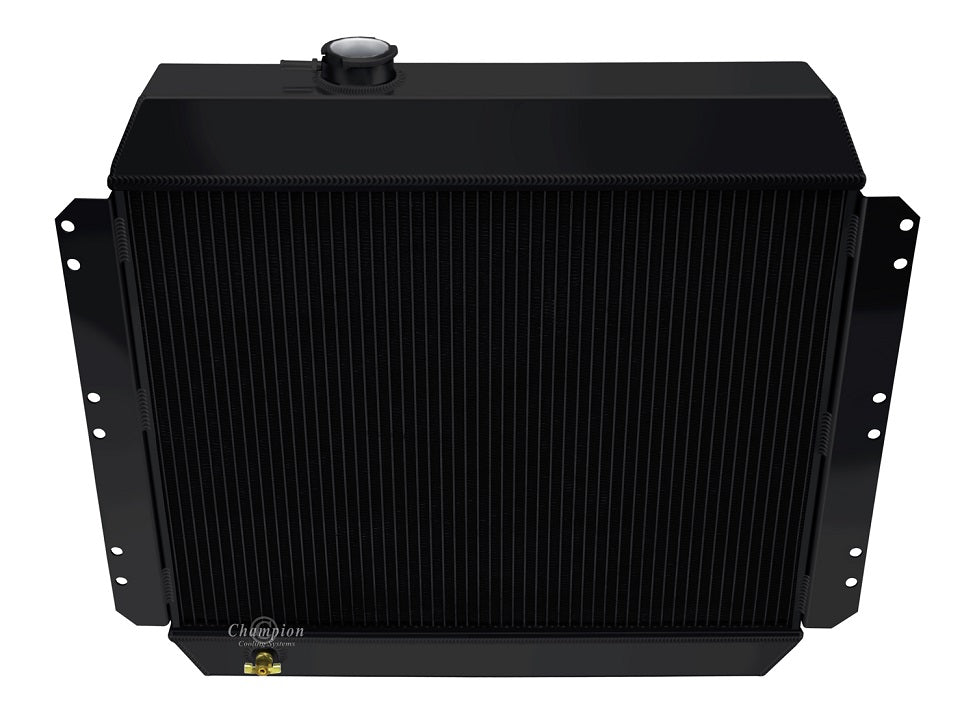

Note: Petcock on back side
