CC4952-4952FS10CSP 3 Row Combo

Champion All Aluminum Radiator PLUS

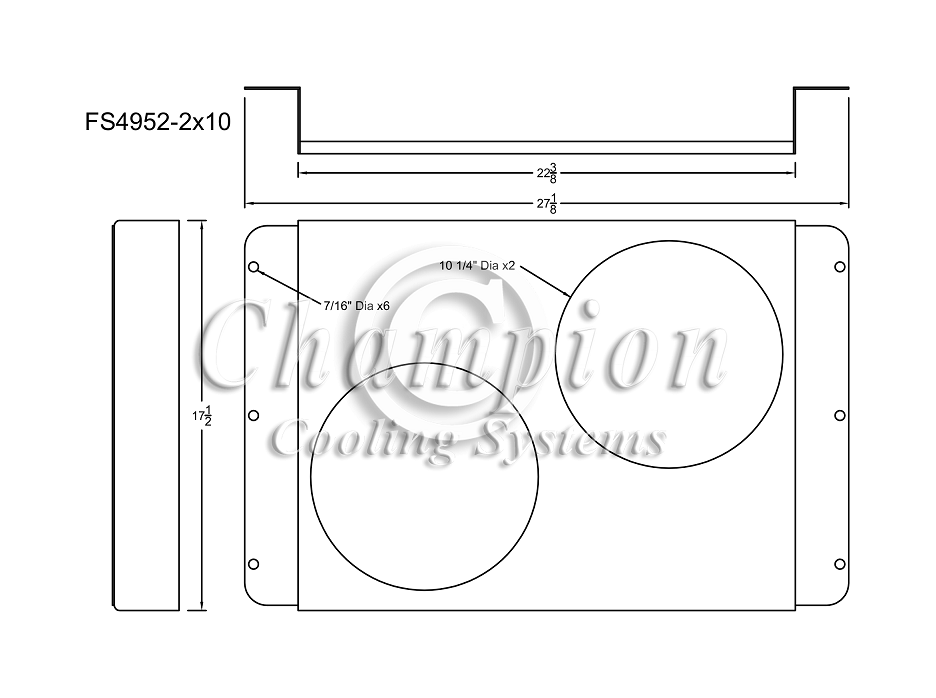

Aluminum Shroud & (2) SPAL-0435 10" Fans
3-Row Core | Cools up to 550hp

CC4952 Radiator Dimensions:
Total: 23.5" tall (Incl Cap) x 27 1/8" wide (Including Brackets)
Core: 17.75" tall x 21.63" wide x 2.5" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler NOT Included
