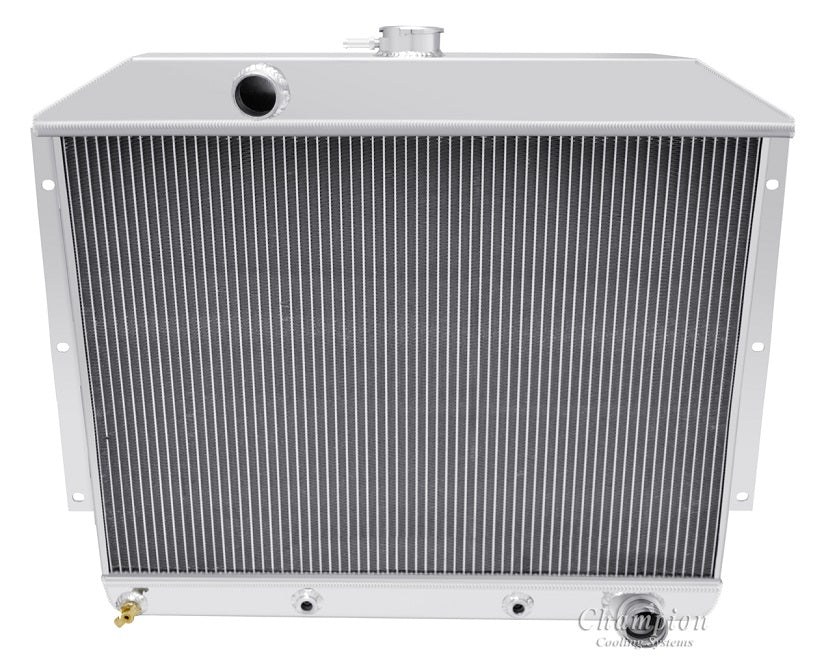

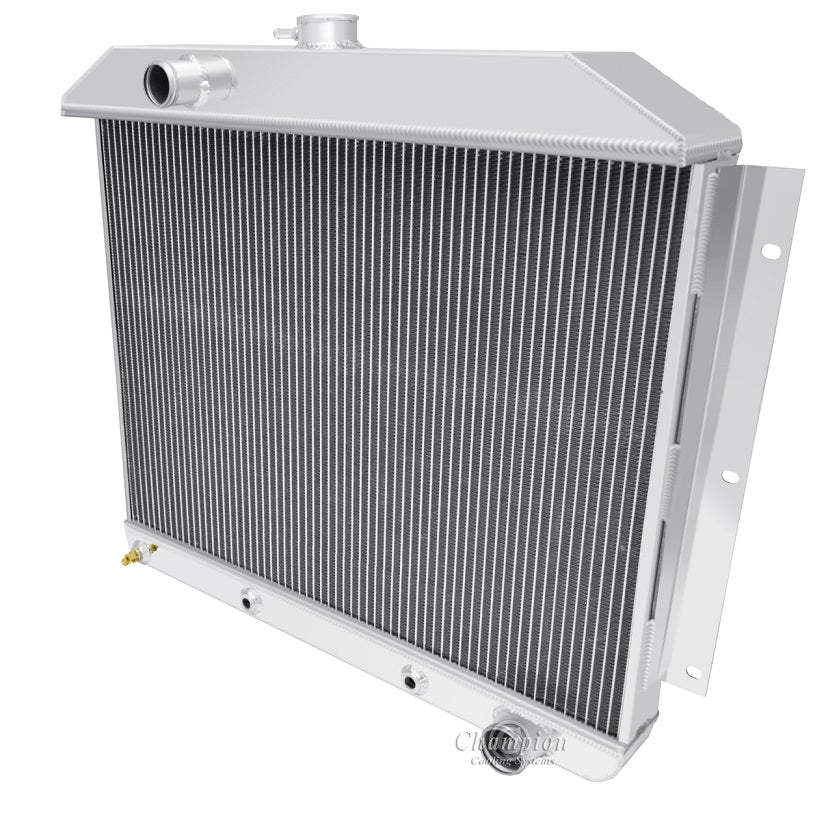

CC4951CH 3 Row Chevy Motors

Champion All Aluminum Radiator
3-Row Core | Cools up to 550hp

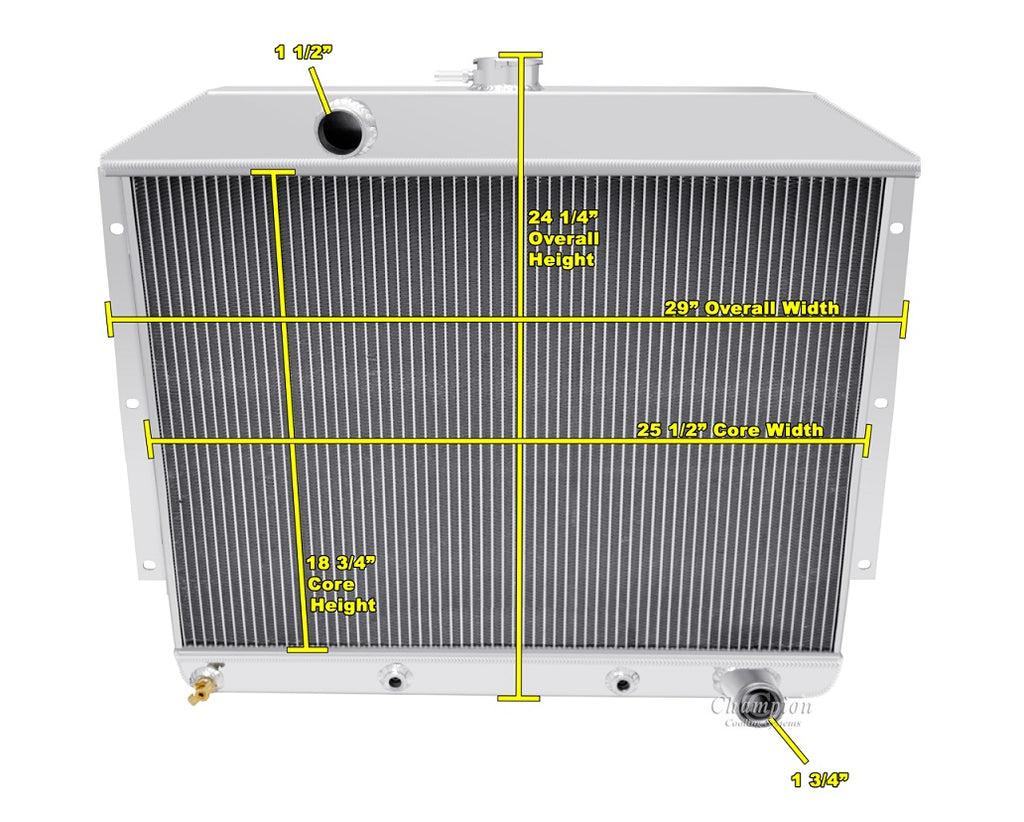

CC4951CH Radiator Dimensions:
Total: 24.25" tall (Incl Cap) x 29" wide (Including Brackets)
Core: 18.75" tall x 25.5" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 4.13" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included
(1/2 20 Straight thread)
