CC487 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 350hp
Check your clearances, this is thicker than stock

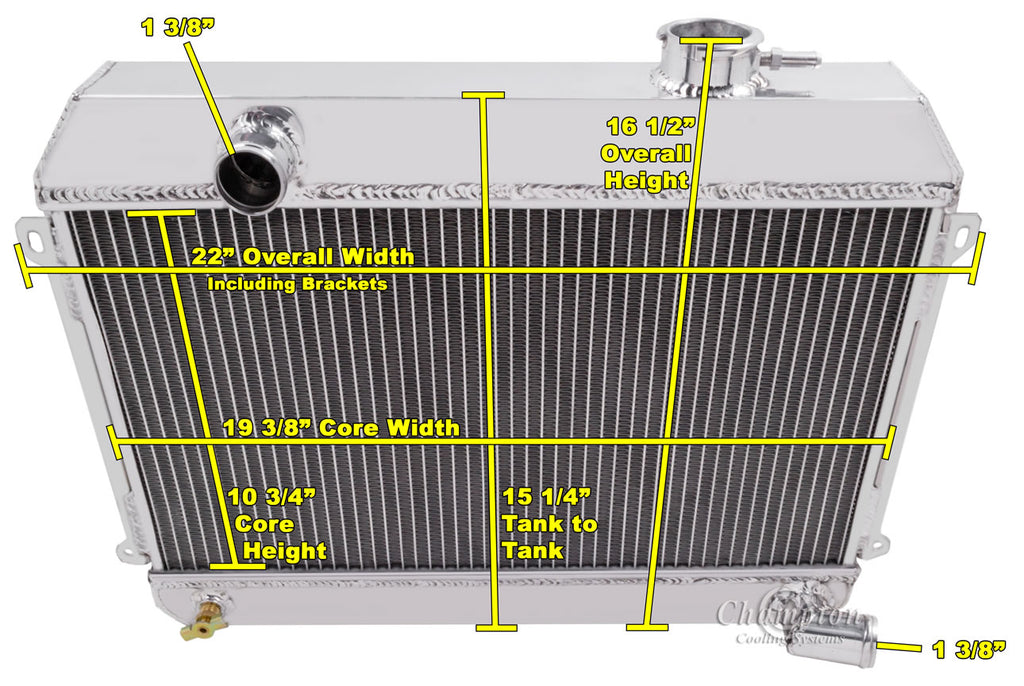

CC487 Radiator Dimensions:
Total: 16.5" tall (with cap) x 22" wide (with brackets)
Core: 10.63" tall x 19.36" wide x 2" thick
Inlet: 1.38" driver side
Outlet: 1.38" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler NOT included
