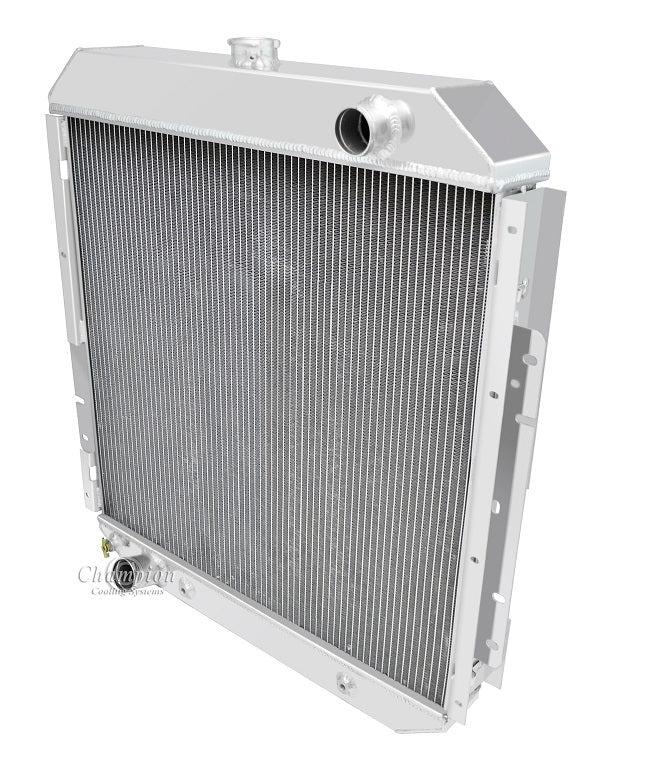

CC480 3 Row

This E-bracket is set towards the engine face for 67-77
with 24" core. for grill face brackets, see SKU#CC545

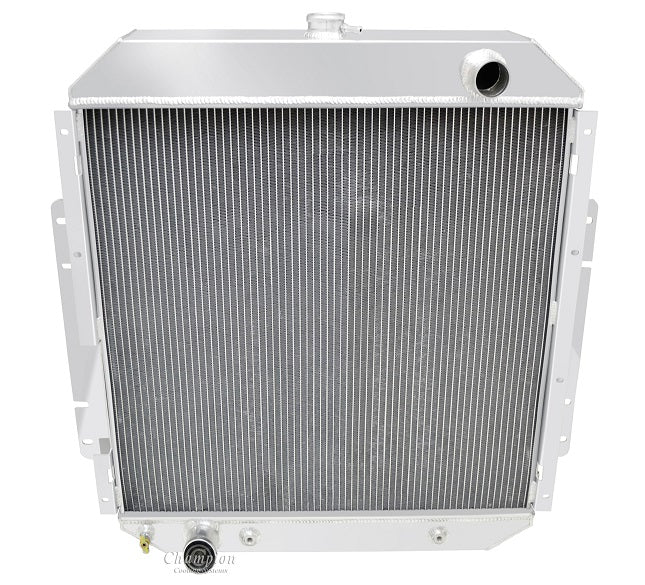

Champion All Aluminum Radiator
3-Row Core | Cools up to 700hp

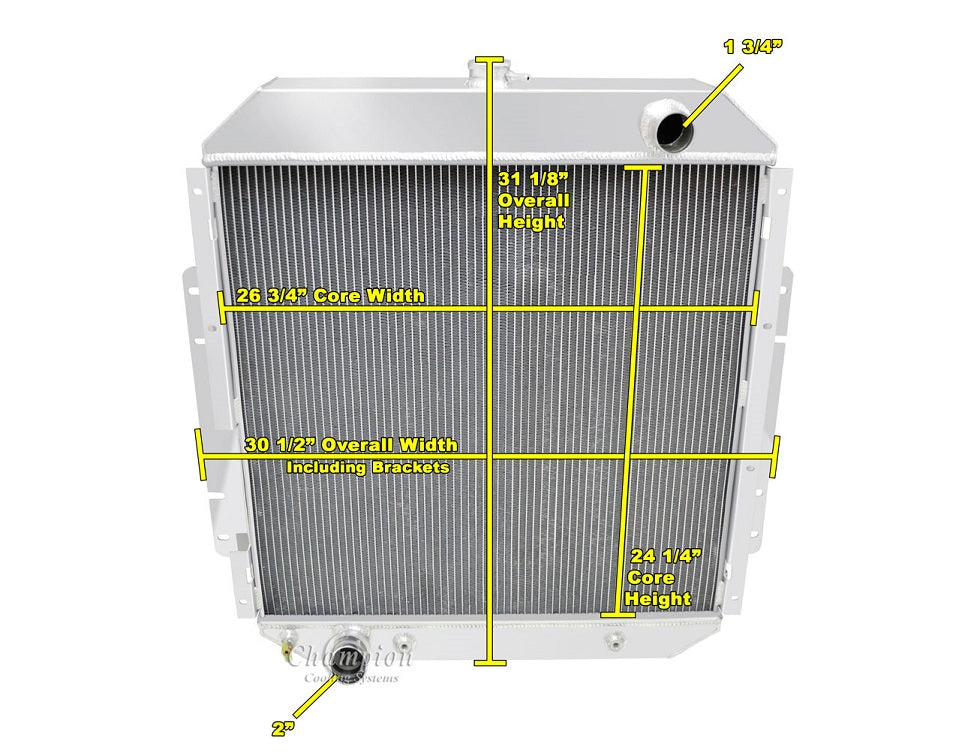

Radiator Dimensions:
Total: 31.13" tall x 30.5" wide (with brackets)
Core: 24.25" tall x 26.38" wide x 2.25" thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 4" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
