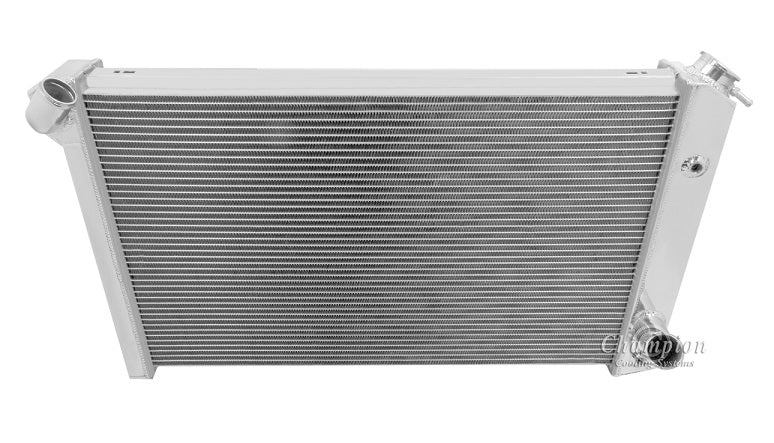

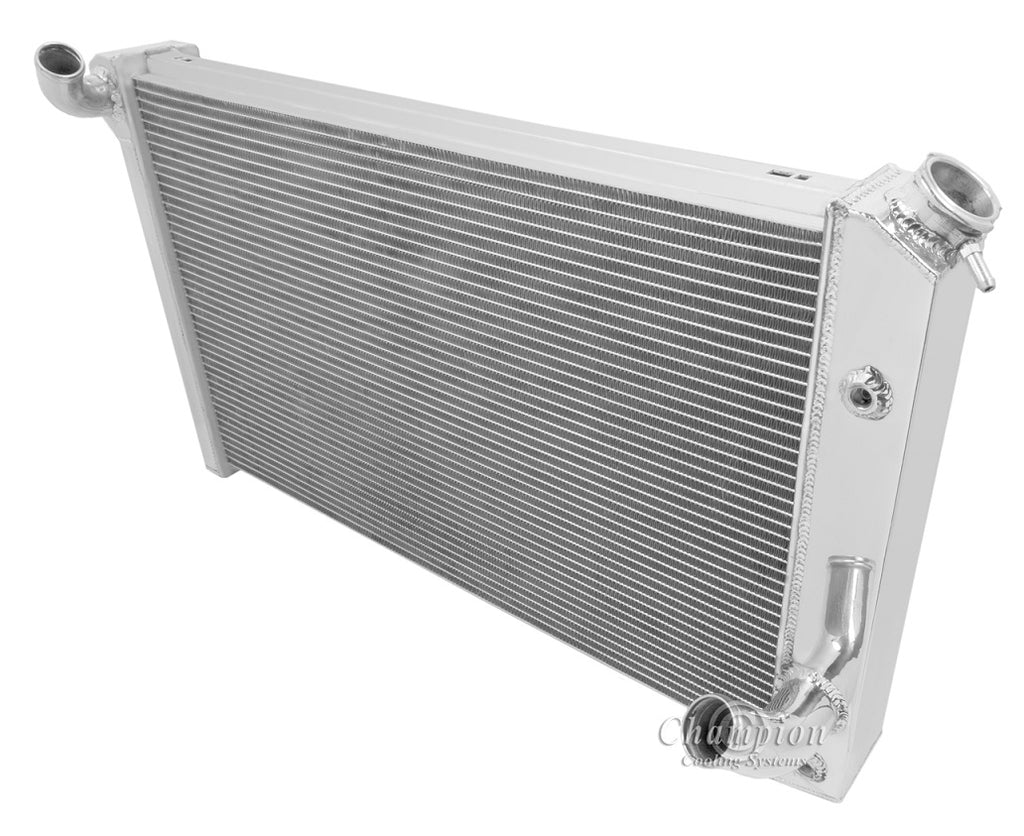

CC478B 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 750hp

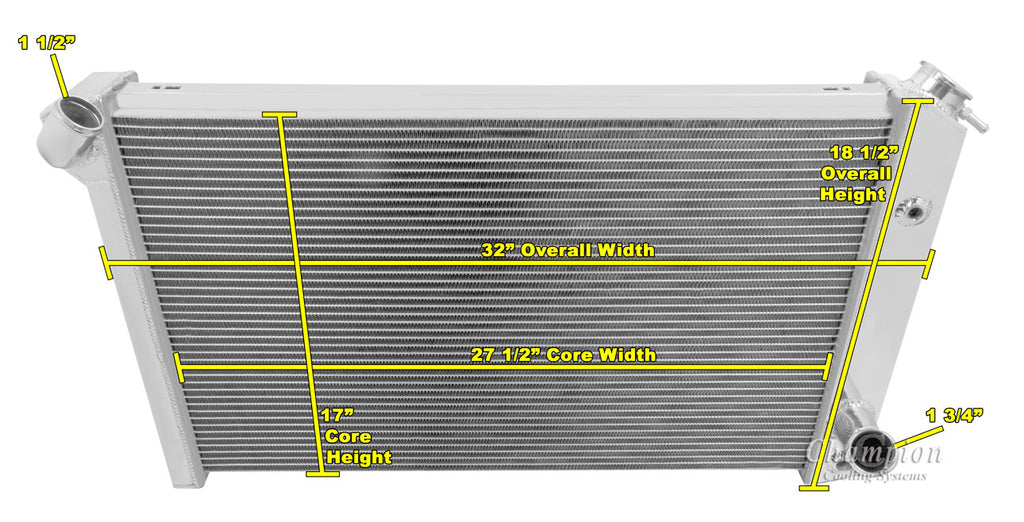

Radiator Dimensions:
Total: 18.5" tall (19.5" with cap) x 32.5" wide (top) 31.5"(bottom)
Core: 16.5" tall x 27.5" wide x 2.5" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

Saddle Mounted

Transmission Cooler included (1/2"- 20 STRAIGHT THREAD)
13 lb. Radiator Cap included
Aluminum Shroud is also available (sold separately)

When using electric fans:
16" Electric fan recommended for this core size (sold separately)
