Description

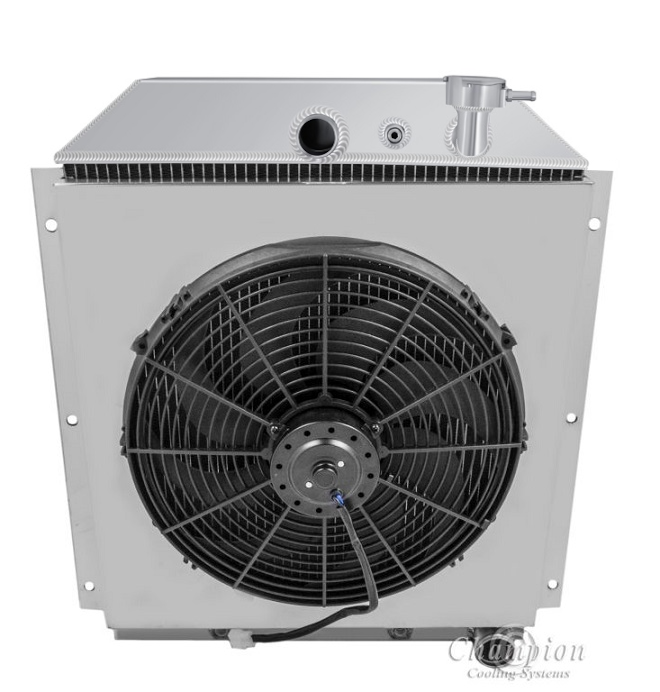

Champion All Aluminum Radiator PLUS
Aluminum Shroud and 16" Pro-Series Fan
For LS Conversions
3-Row Core | Cools up to 700hp
Radiator Dimensions:
Total: 26" tall x 23.75" wide (including brackets)
Core: 20.5" tall x 20" wide x 2" thick
Inlet 1.5" center
Outlet: 1.5" passenger side
Upper Tank: 3.87" thick
Lower Tank: 2.75" thick
Tubes: 0.63" thick
Bracket Mounted
Includes Steam port and fittings
13 lb. Radiator Cap included
Transmission Cooler included (1/2" -20 straight thread)
LIFETIME WARRANTY
PRICE MATCH GUARANTEE
