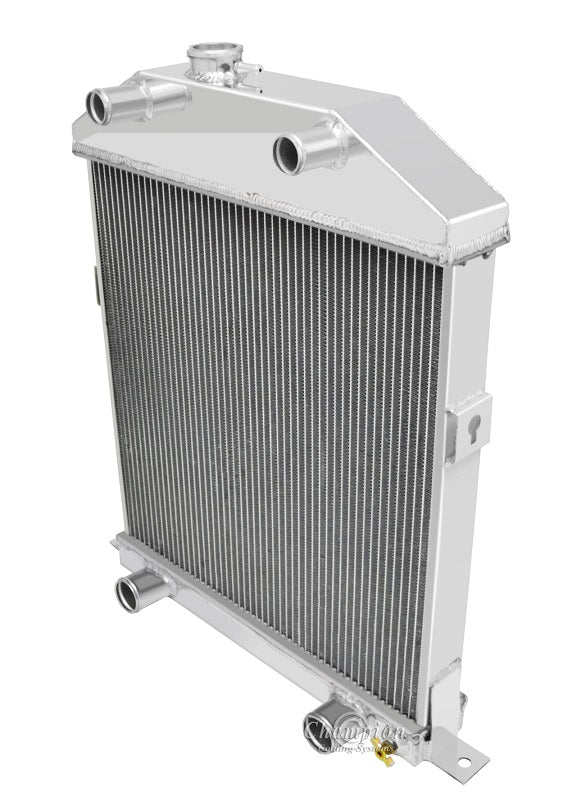

CC46FH 3 Row

All Aluminum Champion Radiator
3-Row Core | Cools up to 550hp

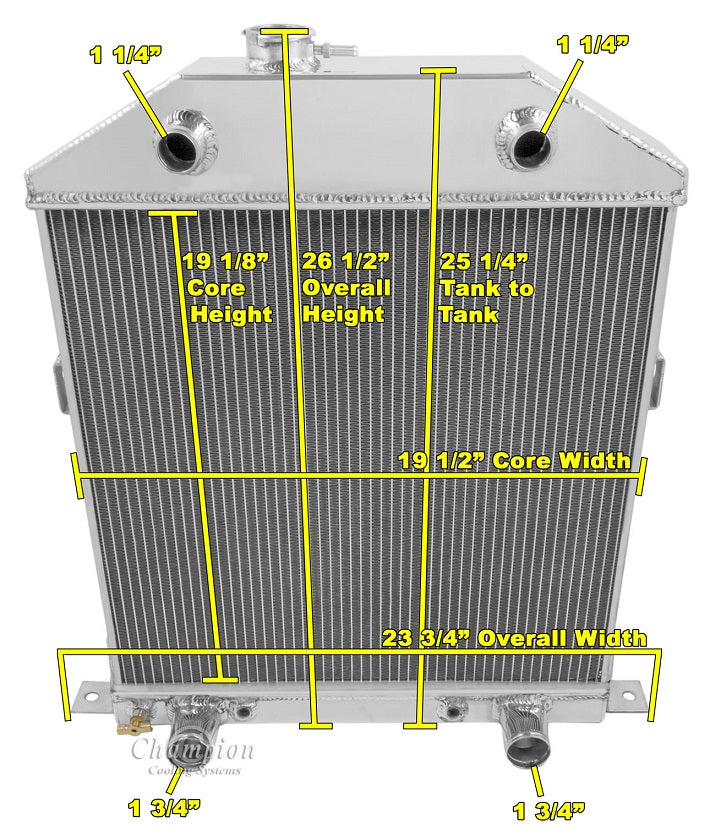

Radiator Dimensions:
Total: 26.5" tall x 23.75" wide (lower bracket)
Core: 19.88" tall x 19.75" wide x 2.5" thick
Inlets: 1.25"
Outlet: 1.75"
Tanks: 3" thick
Tubes: 0.63" thick

Flange Mounted

13 lb. Radiator Cap included

When using electric fans:
One 16" fan recommended for this core size (sold separately)
